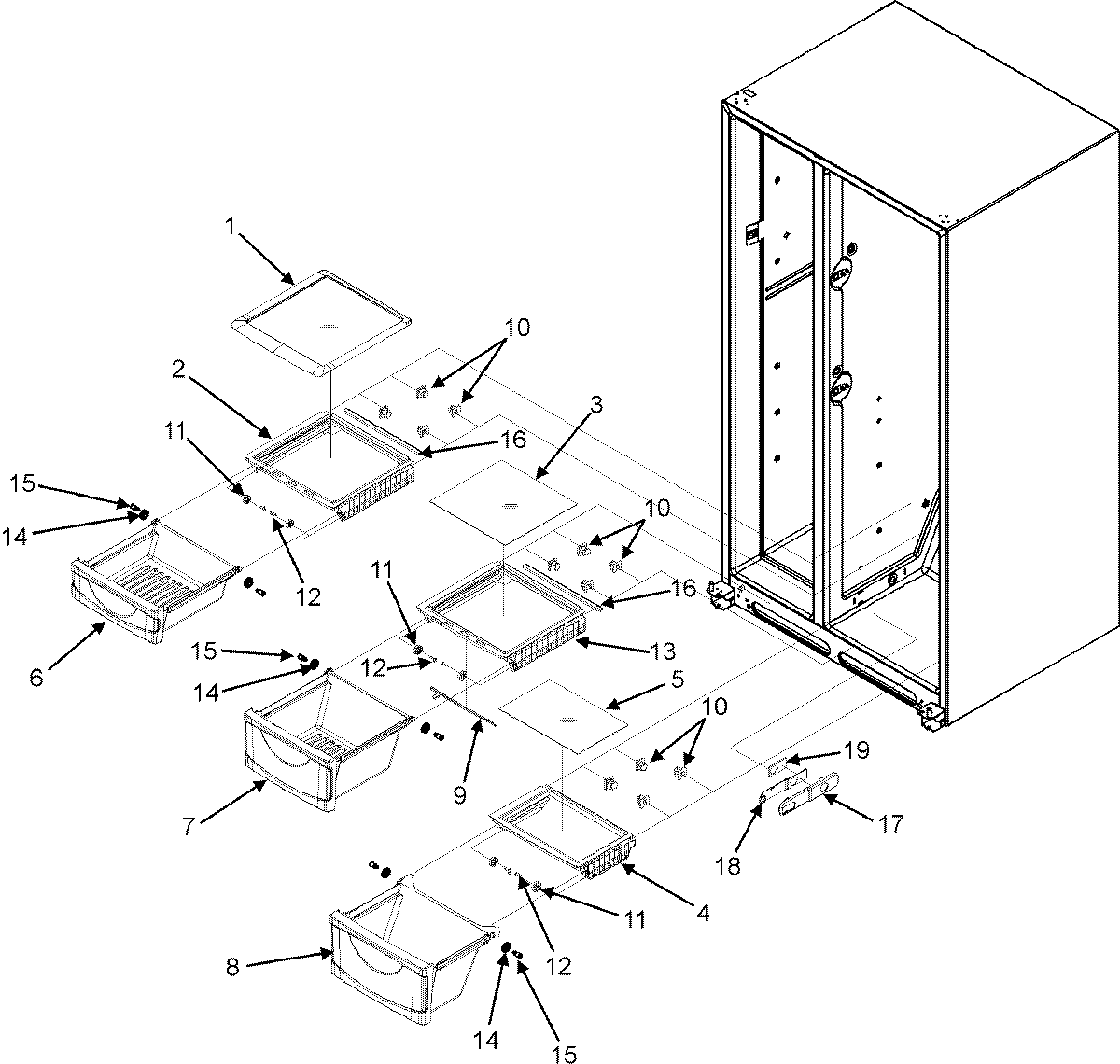

MSD2656KGW 04 – CRISPER ASSEMBLY

MSD2656KGW 04 – CRISPER ASSEMBLY

Written by

in

MSD2656KGW 04 – CRISPER ASSEMBLY

Products

PositionProduct
1MAY 67004130
2Frame, Crisper
3MAY 67004246
4MAY 67004247
5MAY 67004132
6MAY 67005753
7MAY 67005754
8MAY 67005752
9MAY 67004885
10WP12603701 Whirlpool Refrigerator Support
11MAY 67004169
12SCREW
13WP67004531 Whirlpool Refrigerator Frame
14MAY 67004133
16MAY 67004249
17HOUSING, TEMP. CONTROL
18SLIDE, TEMP. CONTROL
19MAY 67004177
