MSD2658KES01 11 – CONTROL PARTS – Aparts

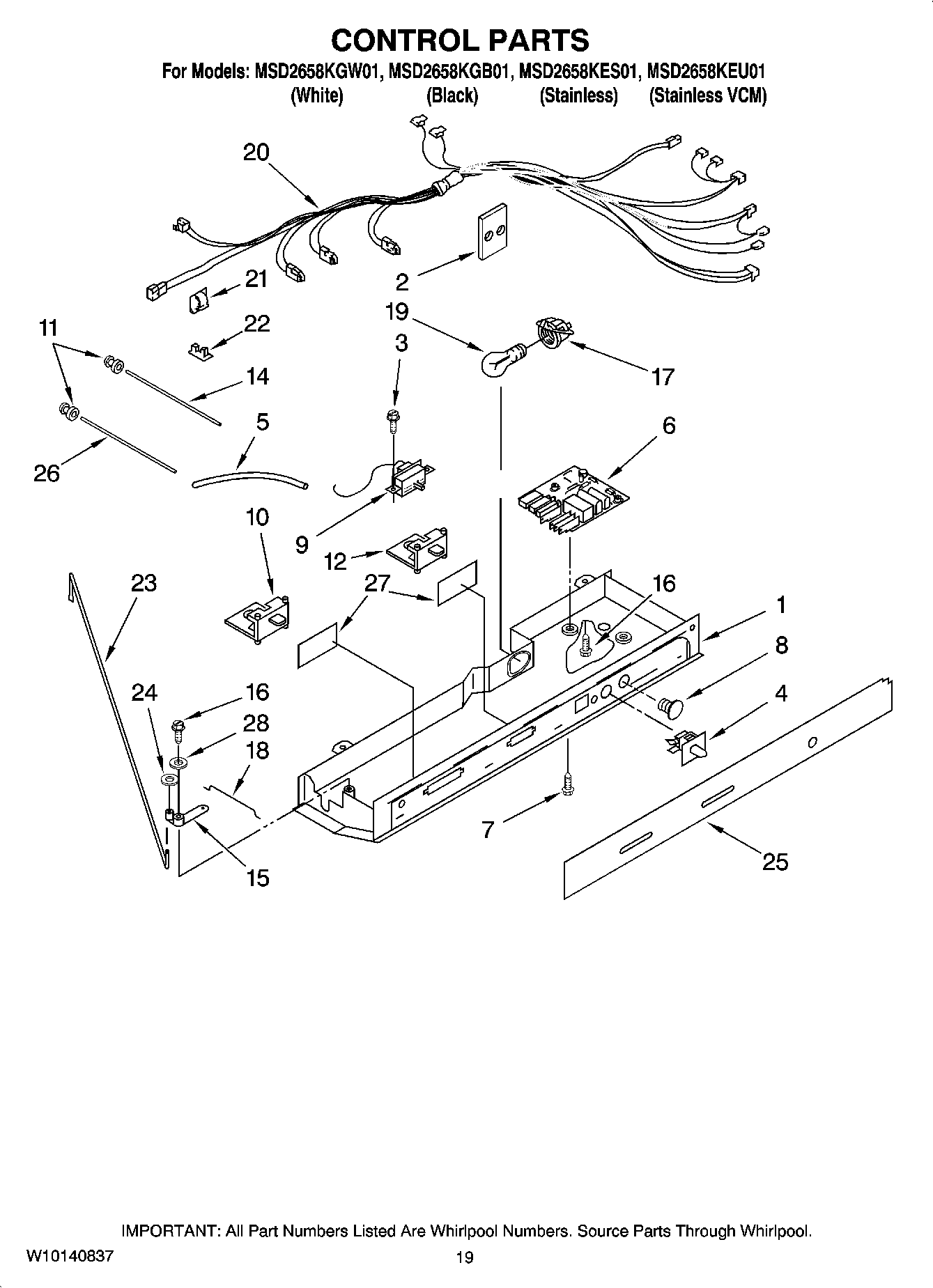

MSD2658KES01 11 – CONTROL PARTS

Products

Position	Product
1	MAY 2181738
2	MAY 2172931
3	Screw
4	MAY 2149705
5	TUBE-BARRIER, THERMOSTAT
6	Control Board Assembly
7	Screw
8	MAY 940014
9	Thermostat
10	MAY 2181741
11	Grommet, Light Bar (4)
12	MAY 2161466
14	MAY 2179920
15	Pivot Arm
16	MAY 627068
17	Socket, Light
18	CONNECTING ROD, SHORT
19	MAY 2255743
20	MAY 2187868
21	MAY 1115374
22	Clip-Wiring
23	Connecting Rod
24	Fastner, Push-On
25	MAY W10124123
26	LIGHT BAR FC
27	MAY 2175513
28	Spring Washer
