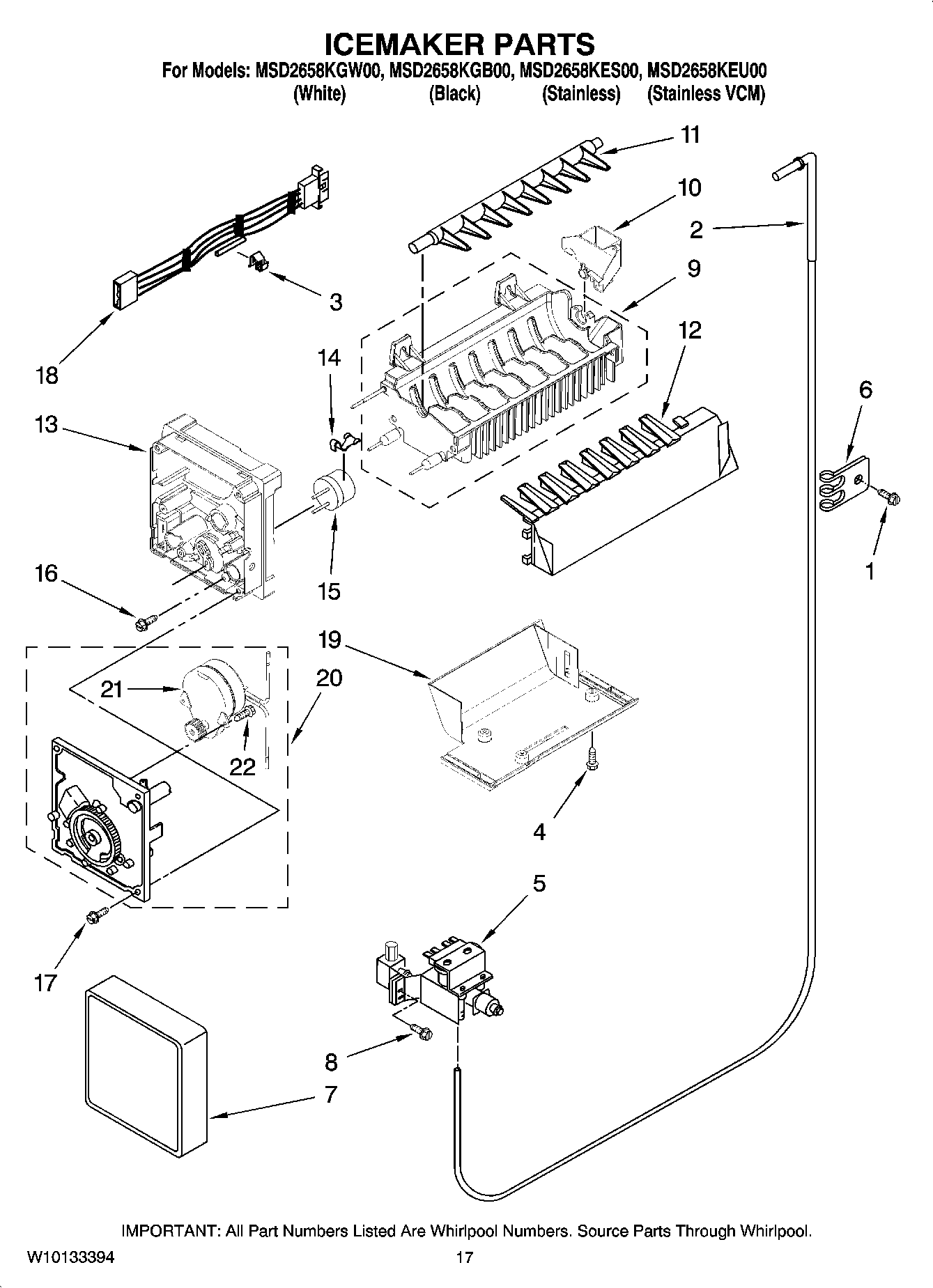

MSD2658KEU00 10 – ICEMAKER PARTS

Products

Position	Product
1	MAY 489084
2	Fitting, Water Tube
3	Clip
4	MAY 489478
5	MAY 2315534
6	Clip, Tube
7	MAY 2174358
8	MAY 488649
9	ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
10	Cup, Fill
11	MAY 627843
12	Ice Striper
13	MAY 2194712
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	MAY 489276
18	MAY 2187467
19	Bracket, Ice Maker Mounting
20	Module Assembly (Includes Items 23 and 24)
22	MAY 489136
100	MAY 2198597
