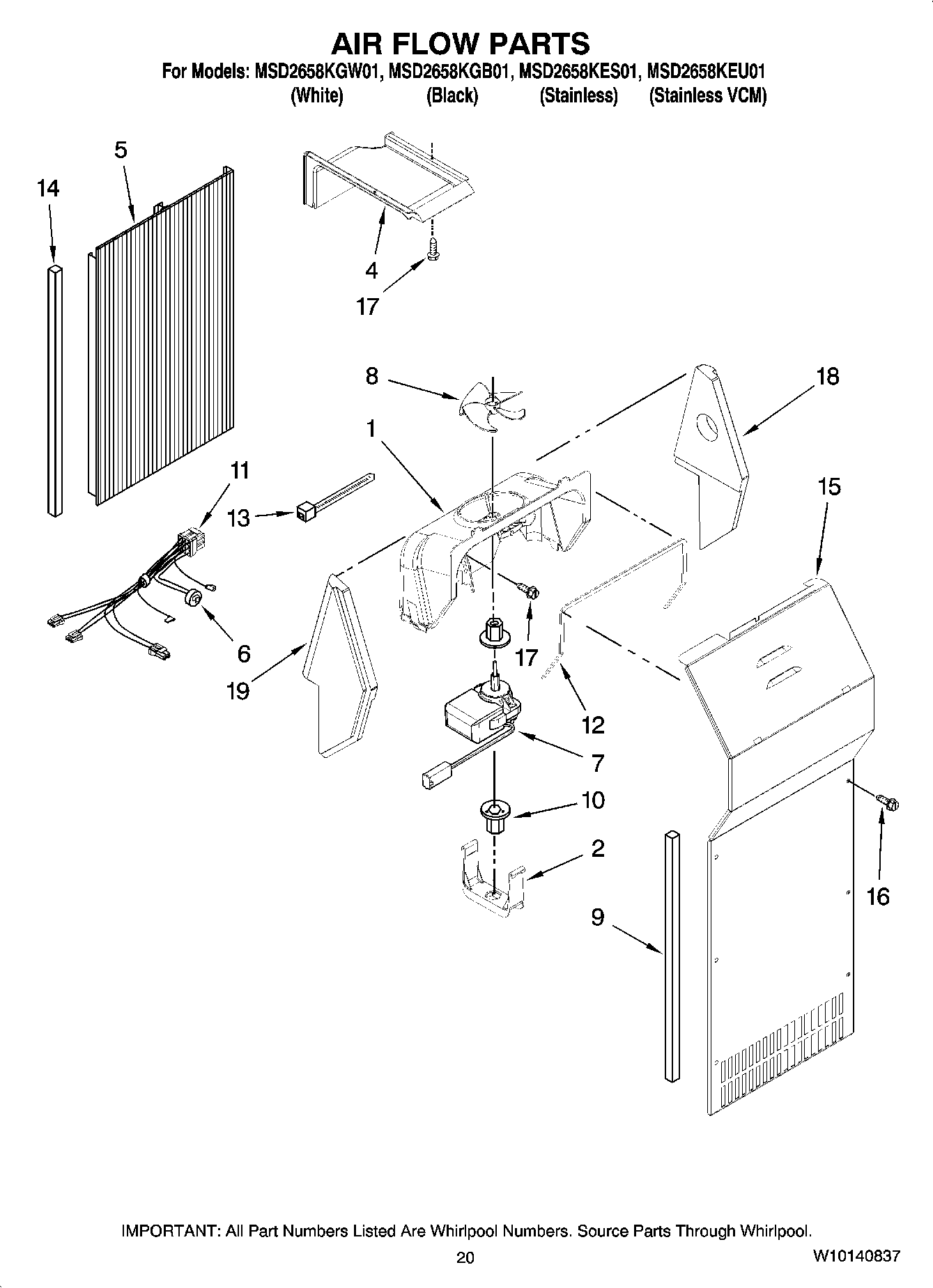

MSD2658KEU01 12 – AIR FLOW PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
	MAY 542639
	Kit, Evaporator Repair (Aluminum Epoxy)
	MAY 833938
	Refinishing Material (Enamel, Black (1 Qt. Uncut))
	MAY 80051
	PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE)
	PAINT, TOUCH-UP (1/2OZ. APOLLO GREY)
	PAINT, BULK (1 QT. GRAPHITE)
	MAY 542638
	MAY 505587
	MAY 503695
	MAY 479502
	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
	SEALER, GUM (4 FEET)
	PAINT, TOUCH-UP (1/2OZ. WHITE)
	PAINT, TOUCH-UP (1/2OZ. BLACK)
	MAY 1117510
	PAINT, BULK (1 QT. WHITE (UNCUT))
	PAINT, SPRAY (WHITE PRIMER)
1	Fan Scroll
2	MAY 2155590
4	MAY 2313359
5	MAY 2198580
6	MAY 2319914
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	Harness, Fan Tube Evaporator (Includes 6)
12	GASKET, SCROLL ASSEMBLY
13	Wire Tie
14	MAY 2203876
15	Cover, Evaporator (Includes 9)
16	MAY 8281159
17	MAY 489478
18	SUPPORT, FAN SCROLL (RIGHT HAND)
19	SUPPORT, FAN SCROLL (LEFT HAND)
