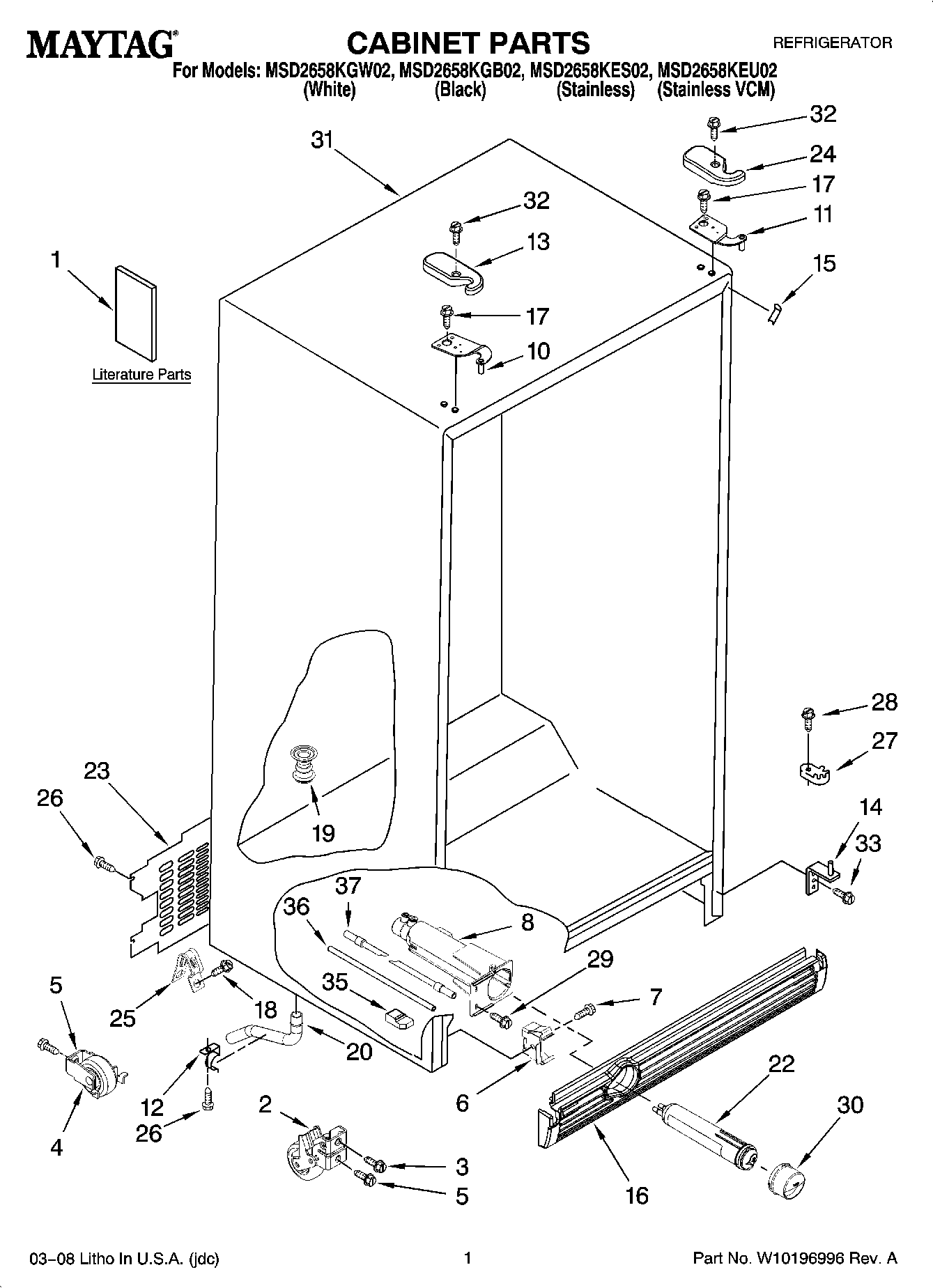

MSD2658KGB02 01 – CABINET PARTS

Products

Position	Product
1	MAY 2326267
1	MAY 2220407
1	Instruction Sheet, Door Removal
1	Service & Wiring Sheet
1	MAY W10182437
2	MAY 2174748
3	MAY 3400517
4	MAY 2196236
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	MAY 2186443
10	HINGE TOP, FC
11	HINGE TOP RC
12	MAY 1108439
13	Hinge Cover, FC (Apollo Gray)
13	HINGE COVER FC (BLACK)
13	HINGE COVER FC (WHITE)
14	Hinge Bottom
15	MAY 2304846
15	MAY 2304848
16	Grille (White)
16	Grille (Black)
17	MAY 489497
18	Screw (3)
19	MAY 2304888
20	Extension Tube
22	MAY 8212652
23	MAY 2188735
24	HINGE COVER RC (BLACK)
24	HINGE COVER RC (WHITE)
25	MAY 549193
26	MAY 489084
27	MAY 2155311
28	MAY 489483
29	MAY 489500
30	Cap, Water Filter (White)
30	Cap, Water Filter (Black)
32	MAY 8281227
33	Screw (4)
35	MAY 2186489
36	MAY 2255153
37	MAY 2319867
