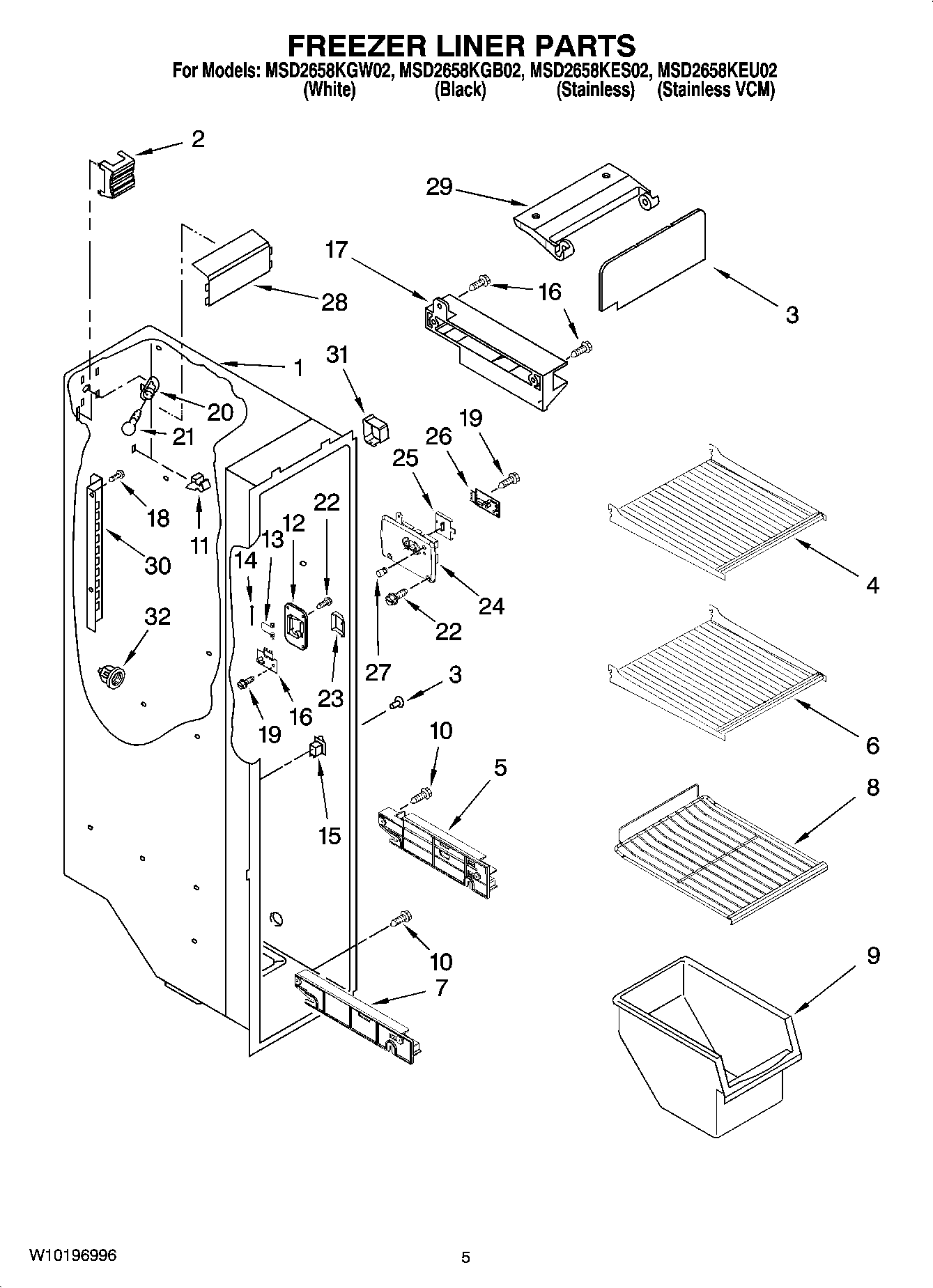

MSD2658KGB02 04 – FREEZER LINER PARTS

Products

Position	Product
2	MAY 2198589
3	MAY 2255720
4	MAY 2205837K
5	MAY 2301291
5	MAY 2301292
6	Shelf, Slide Out Lower (2)
7	MAY 2301289
7	MAY 2301290
8	Shelf
9	MAY 2182971
10	MAY W10004810
11	Clip, Air Duct (2)
12	MAY 2198587
13	SPRING, DOOR
14	PIN, DOOR
15	Switch, Rocker Arm
16	MAY 2220398
17	Slide, Ice Maker Mounting (Right Side)
18	MAY 489478
19	Screw (2)
20	Socket, Light
21	MAY 2255743
22	MAY 8281185
23	MAY 2198633
24	MAY W10173569
25	MAY 2315398
26	MAY 2255114
27	MAY 2198643
28	MAY 2212340
29	Bracket, Ice Maker Cover
30	LADDER (RIGHT HAND)
30	LADDER (LEFT HAND)
31	MAY 2303234
32	SOCKET, LIGHT
