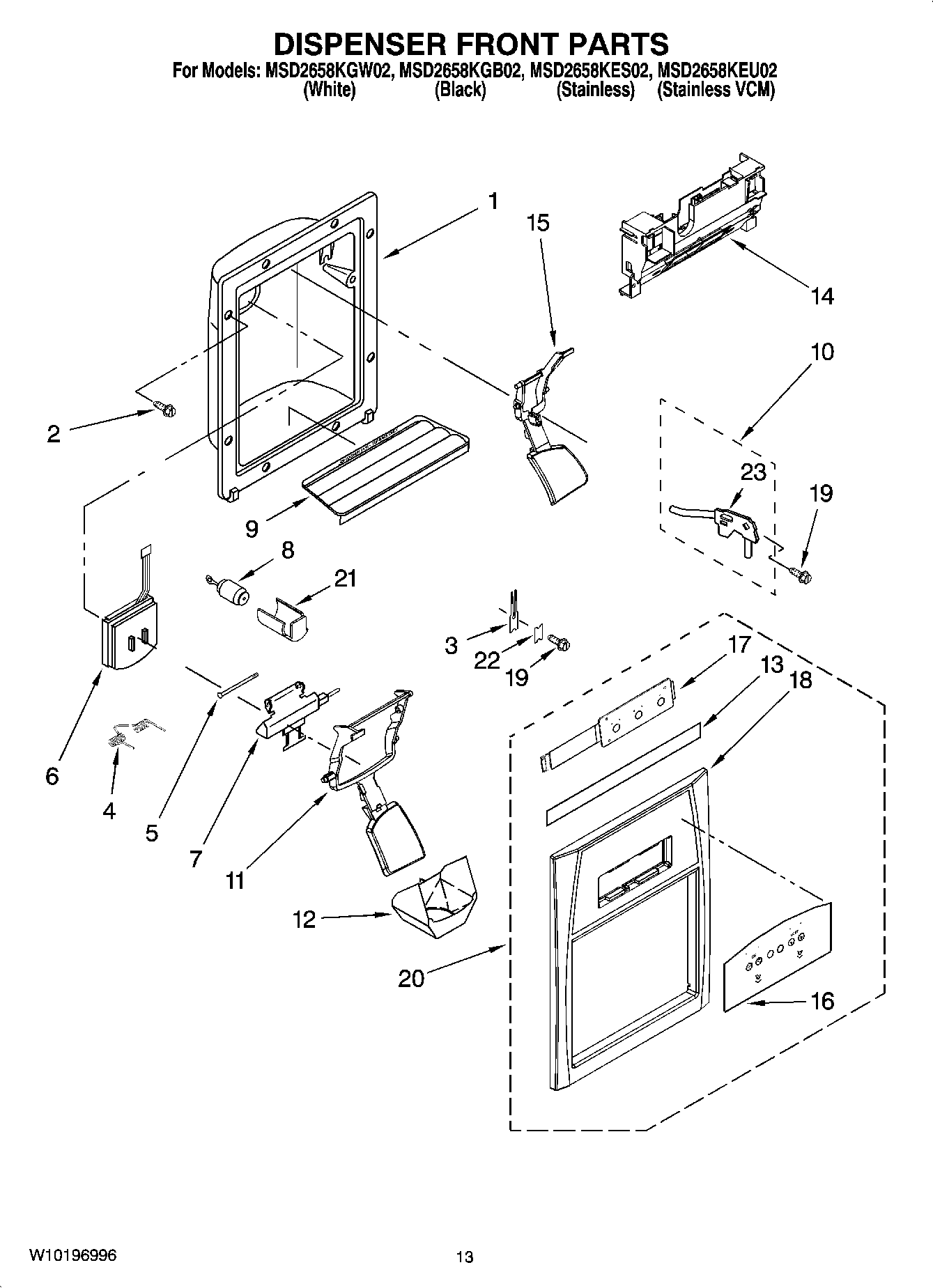

MSD2658KGB02 08 – DISPENSER FRONT PARTS

MSD2658KGB02 08 – DISPENSER FRONT PARTS

Written by

in

MSD2658KGB02 08 – DISPENSER FRONT PARTS

Products

PositionProduct
2Screw
3MAY 2194719
4MAY 2304772
5MAY 2196195
6MAY 2180353
7MAY 2304355
8MAY 2205686
9Grille, Overflow (White)
9Grille, Overflow (Black)
10MAY 2304317
11Lever, Ice Dispenser (Black)
11Lever, Ice Dispenser (White)
12MAY 2180224
13MAY 2305571
14MAY W10133702
15Lever, Water Dispenser (White)
15Lever, Water Dispenser (Black)
19MAY 489000
20Front Cover Assembly (Includes Items 16, 17 & 18) (Black)
20Front Cover Assembly (Includes Items 16, 17 & 18) (White)
21Sleeve, Delay Mechanism
22MAY 2195051
23MAY 2304673
