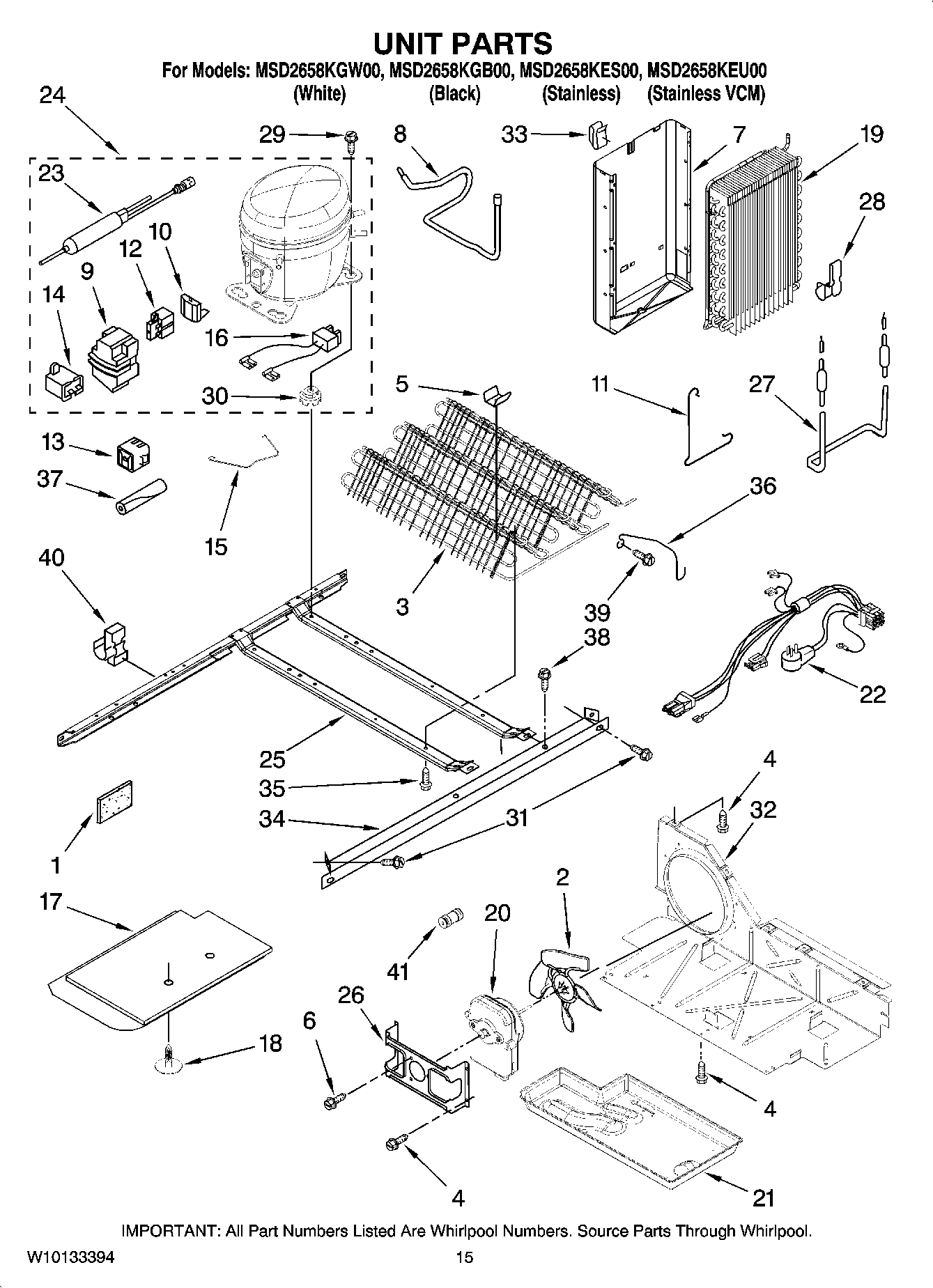

MSD2658KGW00 09 – UNIT PARTSadmin2025-04-26T08:39:05+00:00MSD2658KGW00 09 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | SEALER, INSULATION |
| 2 | MAY 2225834 |
| 3 | Condenser Assembly (Also Order 7) |
| 4 | Screw (3) |
| 5 | MAY 2216914 |
| 6 | MAY 489099 |
| 7 | Heat Shield (Includes 26) |
| 8 | MAY 2205765 |
| 9 | COVER ((SERVICE ONLY)) |
| 10 | MAY 2187145 |
| 11 | Clip |
| 12 | Start Relay (Service Only) |
| 13 | Start-Device, Combination (Start Relay and Overload) |
| 14 | Capacitor (Service) |
| 15 | MAY 2223314 |
| 16 | Wire Assembly (Service Only) |
| 17 | Unit Cover, Bottom |
| 18 | MAY 489396 |
| 19 | Evaporator |
| 20 | MAY 2188728 |
| 21 | MAY 1105523 |
| 22 | MAY 2187510 |
| 23 | Drier |
| 23 | MAY 2319825 |
| 24 | Compressor (Includes Items 10, 11, 19, & 26) |
| 25 | MAY 2304904 |
| 26 | MAY 2181929 |
| 27 | MAY 2188175 |
| 28 | MAY 2304287 |
| 29 | MAY 489373 |
| 30 | Grommet (Production) |
| 30 | MAY 4387558 |
| 31 | MAY 489340 |
| 32 | MAY 2196202 |
| 33 | MAY 2155547 |
| 34 | MAY 2305374 |
| 35 | MAY 8281232 |
| 36 | MAY 2186495 |
| 37 | Sleeve, Pressure Switch Hose |
| 38 | MAY 489427 |
| 39 | MAY 489478 |
| 40 | Clip, Wire |
| 41 | MAY 876764 |
| 41 | CONNECTOR, WATER |
| 41 | Valve, Access (5/8``) |
| 41 | VALVE, ACCESS (1/4``) |
| 41 | Valve, Access (5/16``) |
| 41 | Valve, Access (3/4``) |
| 41 | Valve, Access (1/2``) |
| 41 | 12658531CQ Whirlpool Refrigerator DOR-FIP Board |
| 41 | VALVE, ACCESS (3/8``) |
