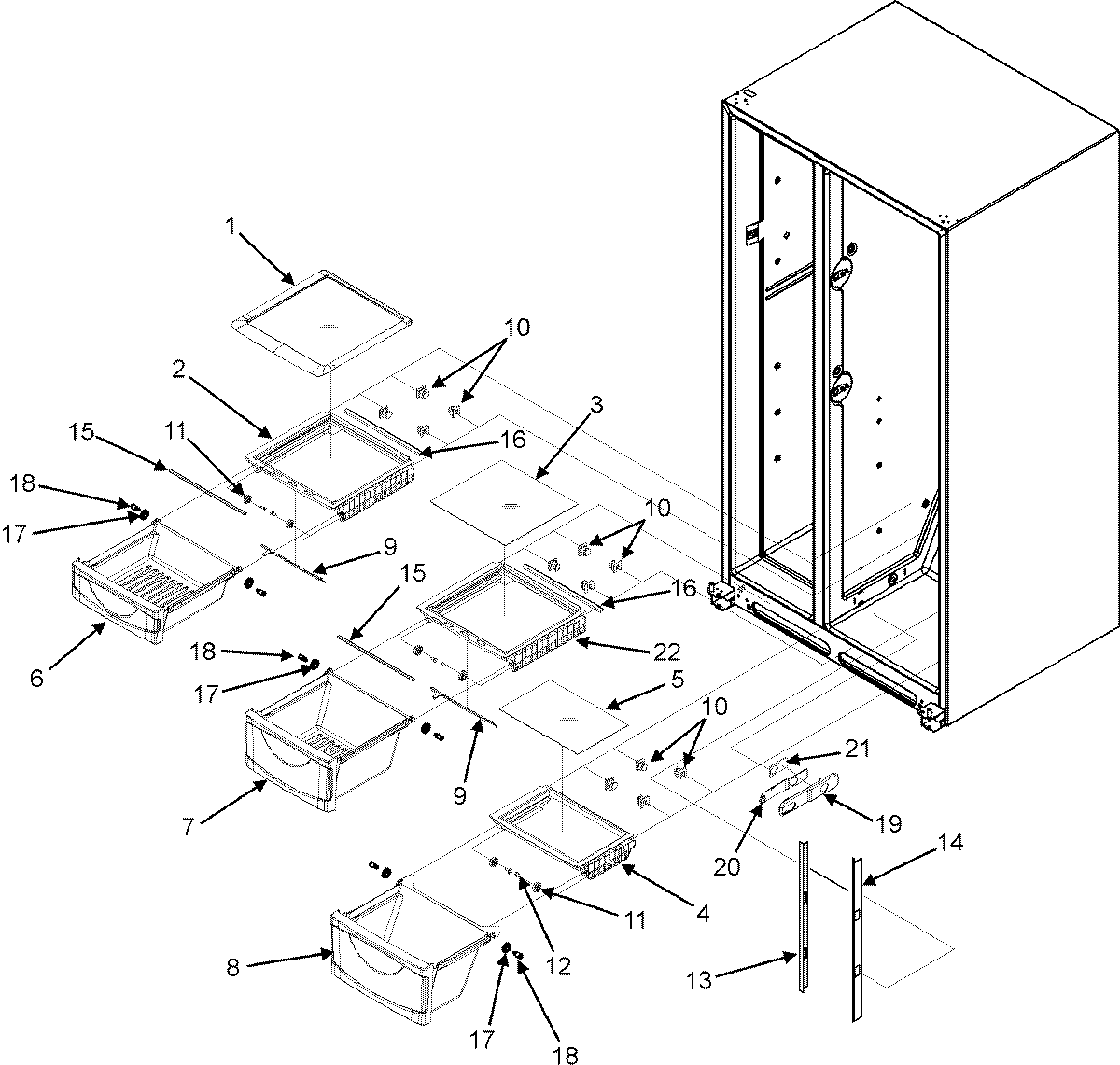

MSD265RHEB 04 – CRISPER ASSEMBLY

Products

PositionProduct
1MAY 67004130
2Frame, Crisper
3MAY 67004246
4MAY 67004247
5MAY 67004132
6MAY 67004349
7MAY 67004350
8MAY 67004351
9MAY 67004168
10WP12603701 Whirlpool Refrigerator Support
11MAY 67004169
12MAY M0238105
13PILLAR (LT)
14PILLAR (RT)
15MAY 67004248
16MAY 67004249
17MAY 67004133
19HOUSING, TEMP. CONTROL
20SLIDE, TEMP. CONTROL
21MAY 67004177
22WP67004531 Whirlpool Refrigerator Frame
