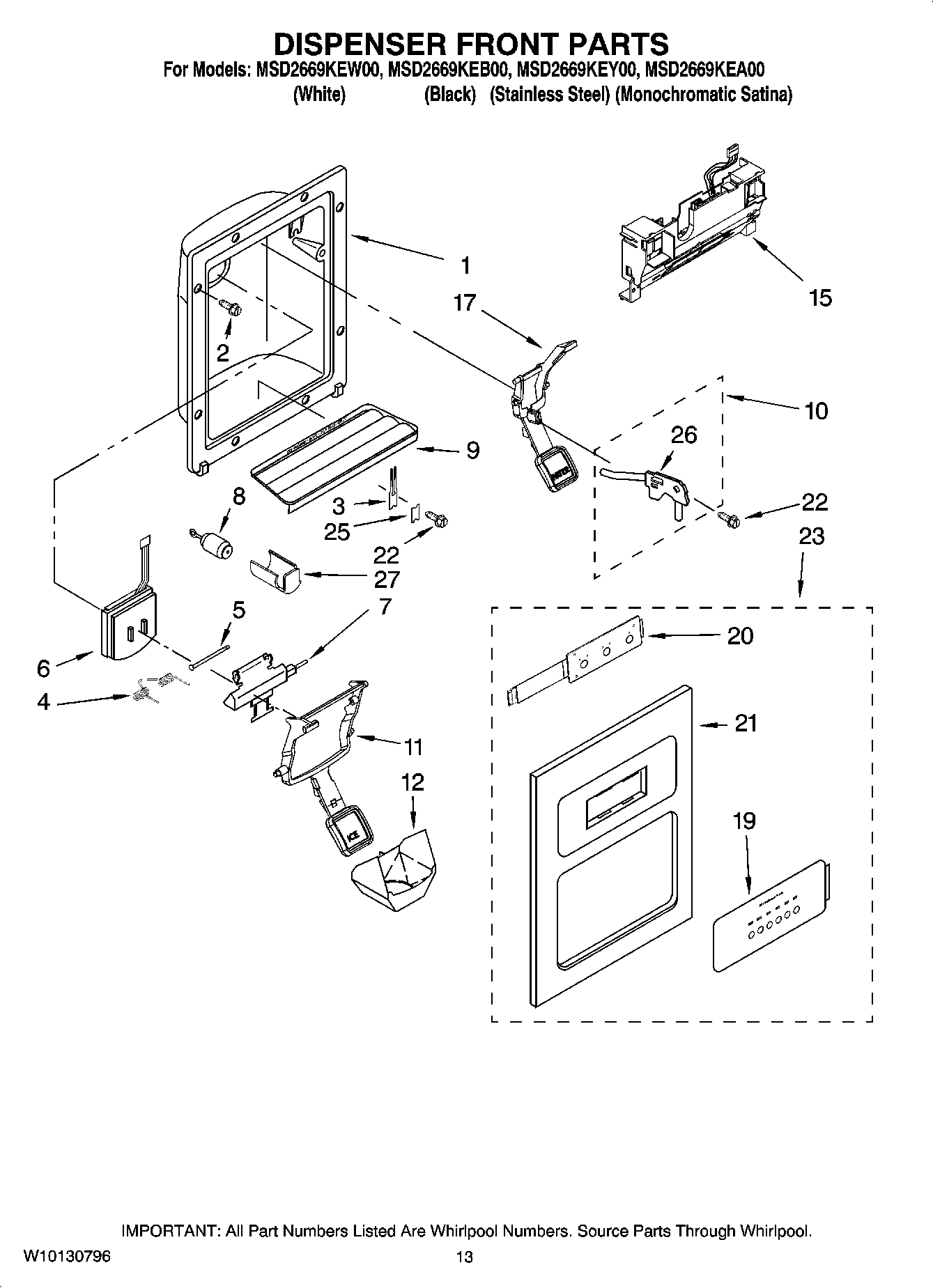

MSD2669KEA00 08 – DISPENSER FRONT PARTS

Products

Position	Product
2	Screw
3	MAY 2194719
4	MAY 2304772
5	MAY 2196195
6	MAY 2180353
7	MAY 2304355
8	MAY 2205686
9	MAY 2207007B
9	Grille, Overflow (White)
9	Grille, Overflow (Apollo Grey)
10	MAY 2304317
11	Lever, Ice Dispenser (White)
11	Lever, Ice Dispenser (Black)
11	MAY 2203562AP
12	MAY 2180224
15	MAY 2323002
17	Lever, Water Dispenser (Black)
17	Lever, Water Dispenser (White)
17	MAY 2203561AP
20	SCREW
22	MAY 489000
23	MAY W10120292
23	MAY W10120293
23	MAY W10121900
25	MAY 2195051
26	MAY 2304673
27	Sleeve, Delay Mechanism
