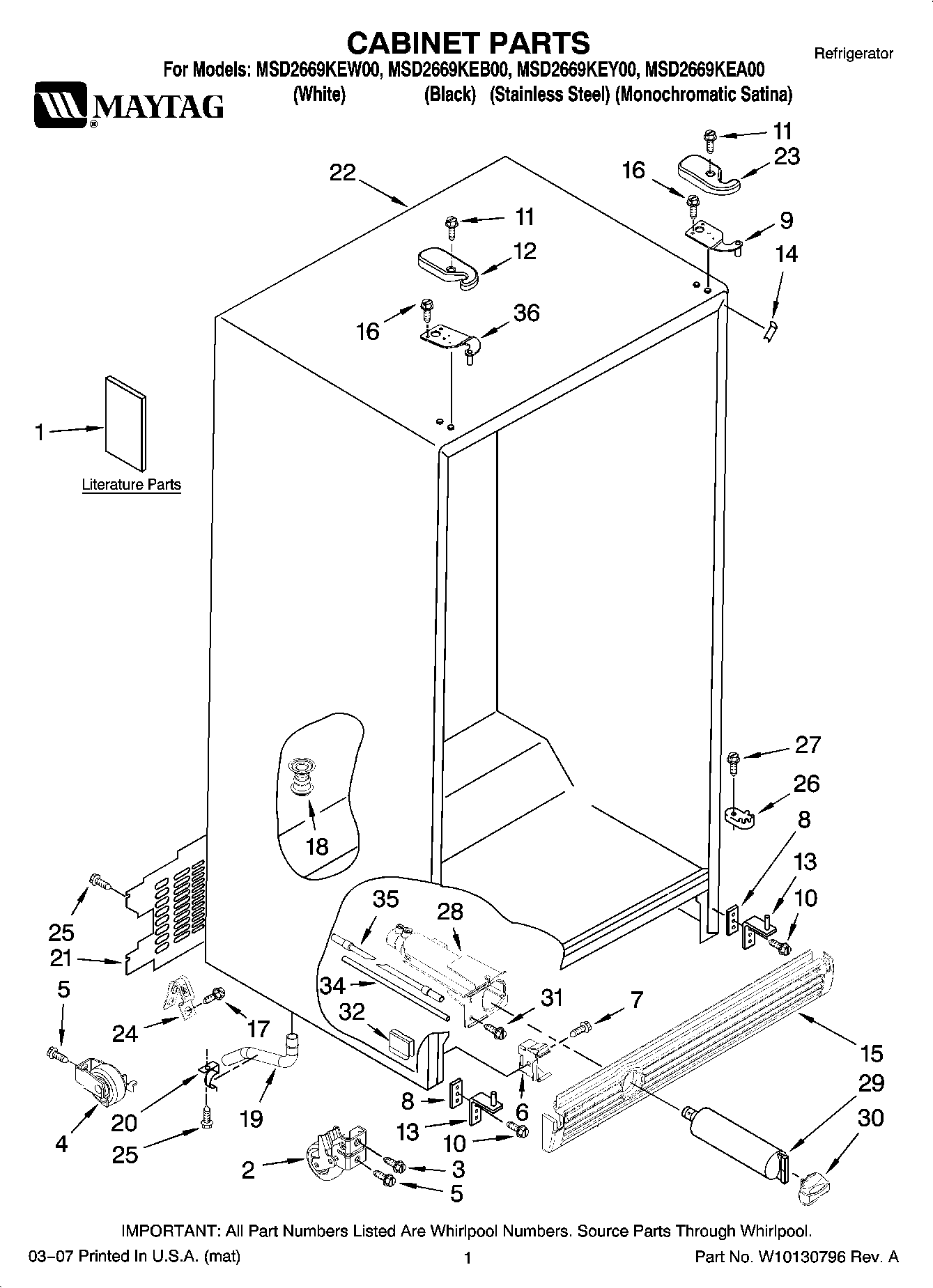

MSD2669KEB00 01 – CABINET PARTS

Products

Position	Product
1	Instruction Sheet, Door Removal
1	Service & Wiring Sheet
1	MAY 2326267
1	MAY W10120325
1	MAY 2220407
2	MAY 2254628
3	MAY W10079910
4	MAY 2254625
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	Shim
9	HINGE TOP RC
10	Screw (4)
11	MAY 8281227
12	Hinge Cover, FC (Apollo Gray)
12	HINGE COVER FC (BLACK)
12	HINGE COVER FC (WHITE)
13	MAY 2304322
14	MAY 2315169
14	MAY 2304846
14	MAY 2304848
15	Grille (White)
15	Grille (Black)
15	MAY 2198468AP
16	MAY 489497
17	Screw (3)
18	MAY 2304888
19	Extension Tube
20	MAY 1108439
21	MAY 2188735
23	MAY 2203408AP
23	HINGE COVER RC (WHITE)
23	HINGE COVER RC (BLACK)
24	MAY 549193
25	MAY 489084
26	MAY 2155311
27	MAY 489483
28	MAY 2186443
29	MAY 8212652
30	MAY 2186494AP
30	Cap, Water Filter (Black)
30	Cap, Water Filter (White)
31	MAY 489500
32	MAY 2186489
34	MAY 2304708
35	MAY 2319867
36	HINGE TOP, FC
