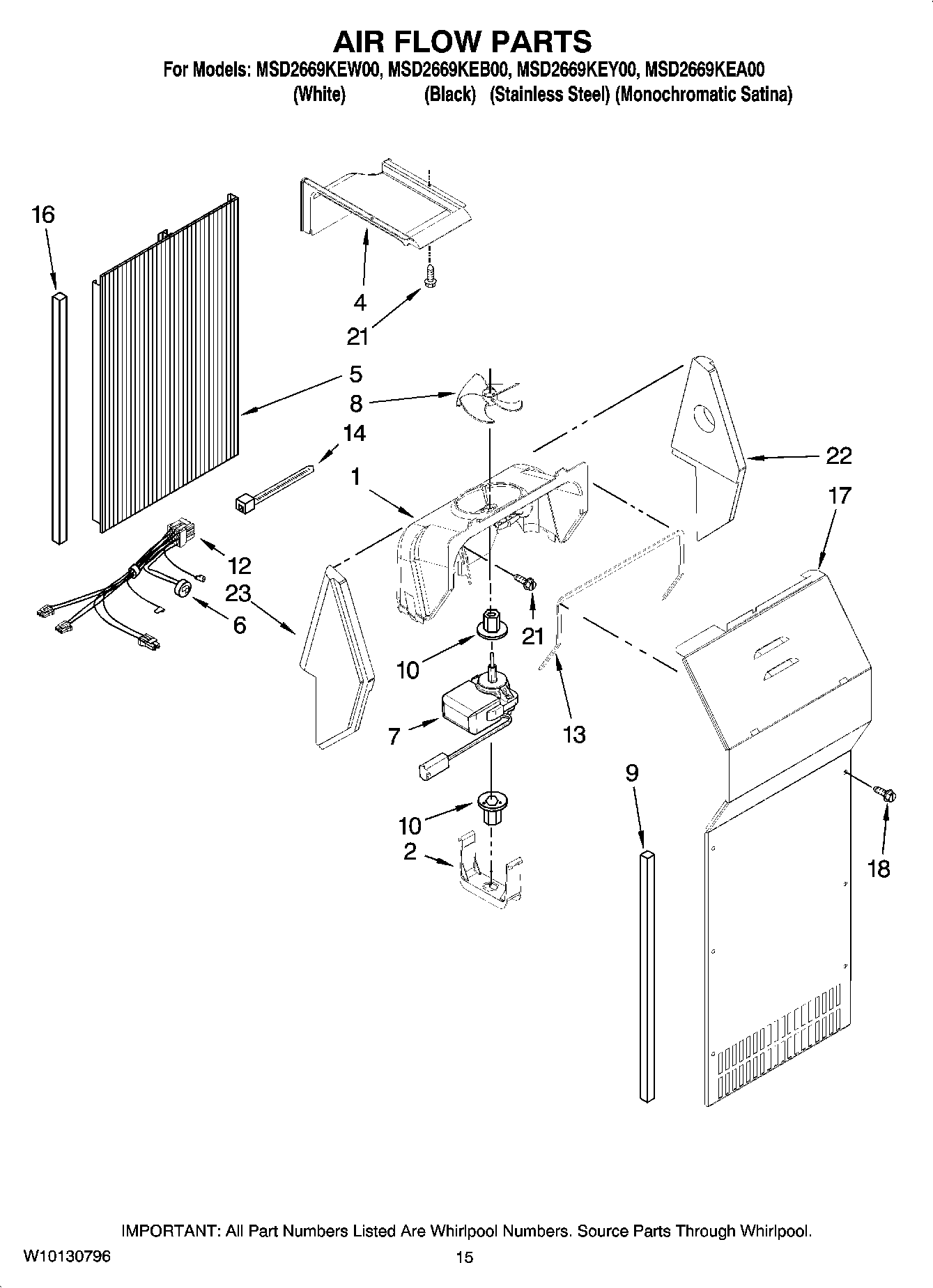

MSD2669KEB00 09 – AIR FLOW PARTS

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
4	MAY 2313359
5	MAY 2198580
6	MAY 2319914
7	MAY 2315549
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
12	Harness, Fan Tube Evaporator (Includes 6)
13	Gasket, Fan Scroll
14	Wire Tie
16	MAY 2203876
17	Cover, Evaporator (Includes 9)
18	MAY 8281159
21	MAY 489478
22	SUPPORT, FAN SCROLL (RIGHT HAND)
23	SUPPORT, FAN SCROLL (LEFT HAND)
