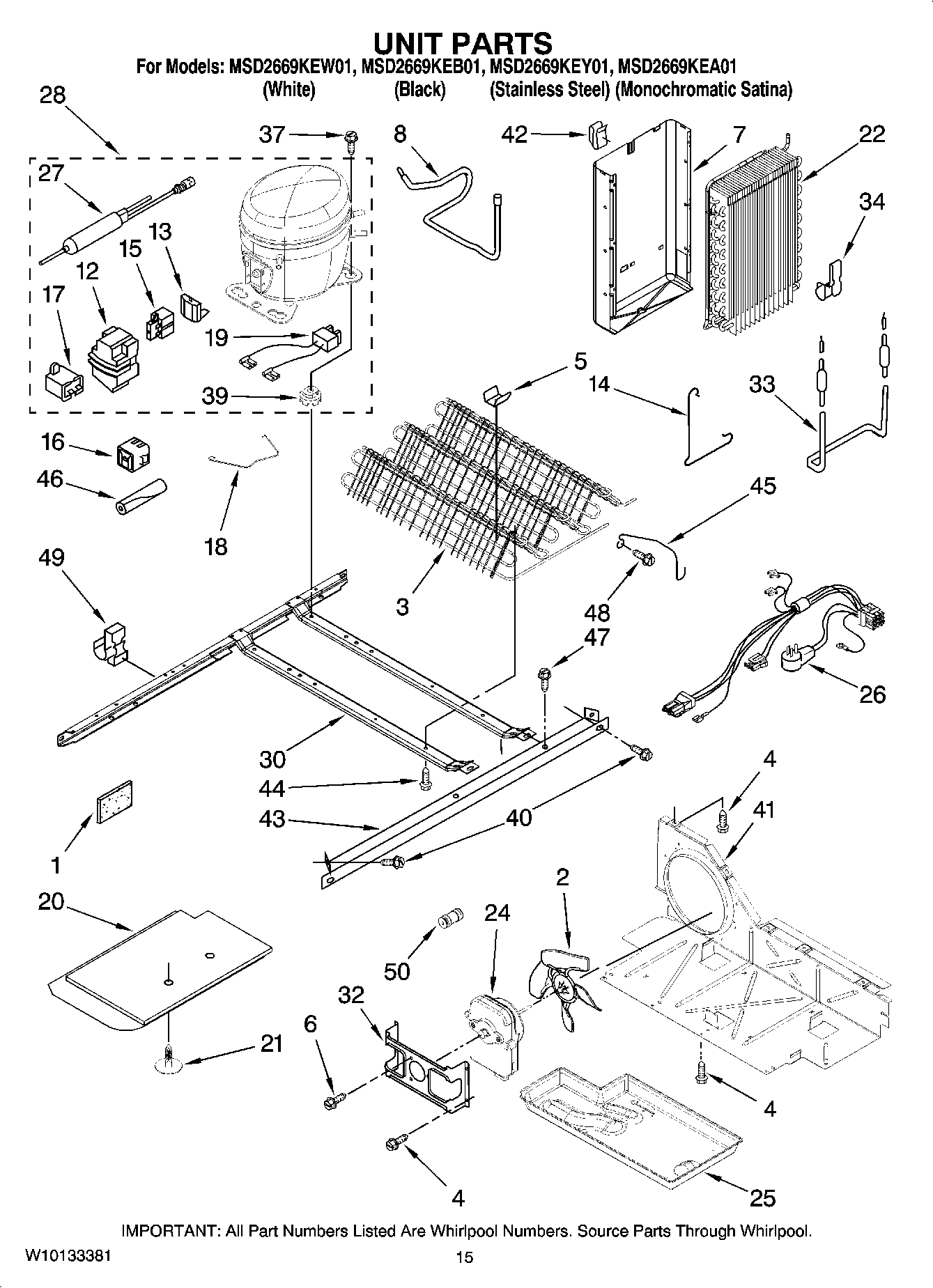

MSD2669KEB01 09 – UNIT PARTS

Products

Position	Product
1	SEALER, INSULATION
2	MAY 2225834
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	MAY 2216914
6	MAY 489099
7	Heat Shield (Includes 26)
8	MAY 2205765
12	COVER ((SERVICE ONLY))
13	MAY 2187145
14	Clip
15	Start Relay (Service Only)
16	Start-Device, Combination (Start Relay and Overload)
17	Capacitor (Service)
18	MAY 2223314
19	Wire Assembly (Service Only)
20	Unit Cover, Bottom
21	MAY 489396
22	Evaporator
24	MAY 2188728
25	MAY 1105523
26	MAY 2187510
27	Drier
27	MAY 2319825
28	Compressor (Includes Items 10, 11, 19, & 26)
30	MAY 2304904
32	MAY 2181929
33	MAY 2188175
34	MAY 2304287
37	MAY 489373
39	Grommet (Production)
39	MAY 4387558
40	MAY 489340
41	MAY 2196202
42	MAY 2155547
43	MAY 2305374
44	MAY 8281232
45	MAY 2186495
46	Sleeve, Pressure Switch Hose
47	MAY 489427
48	MAY 489478
49	Clip, Wire
50	VALVE, ACCESS (1/4“)
50	Valve, Access (5/16“)
50	Valve, Access (3/4“)
50	VALVE, ACCESS (3/8“)
50	Valve, Access (1/2“)
50	12658531CQ Whirlpool Refrigerator DOR-FIP Board
50	MAY 876764
50	Valve, Access (5/8“)
50	MAY 2305227
