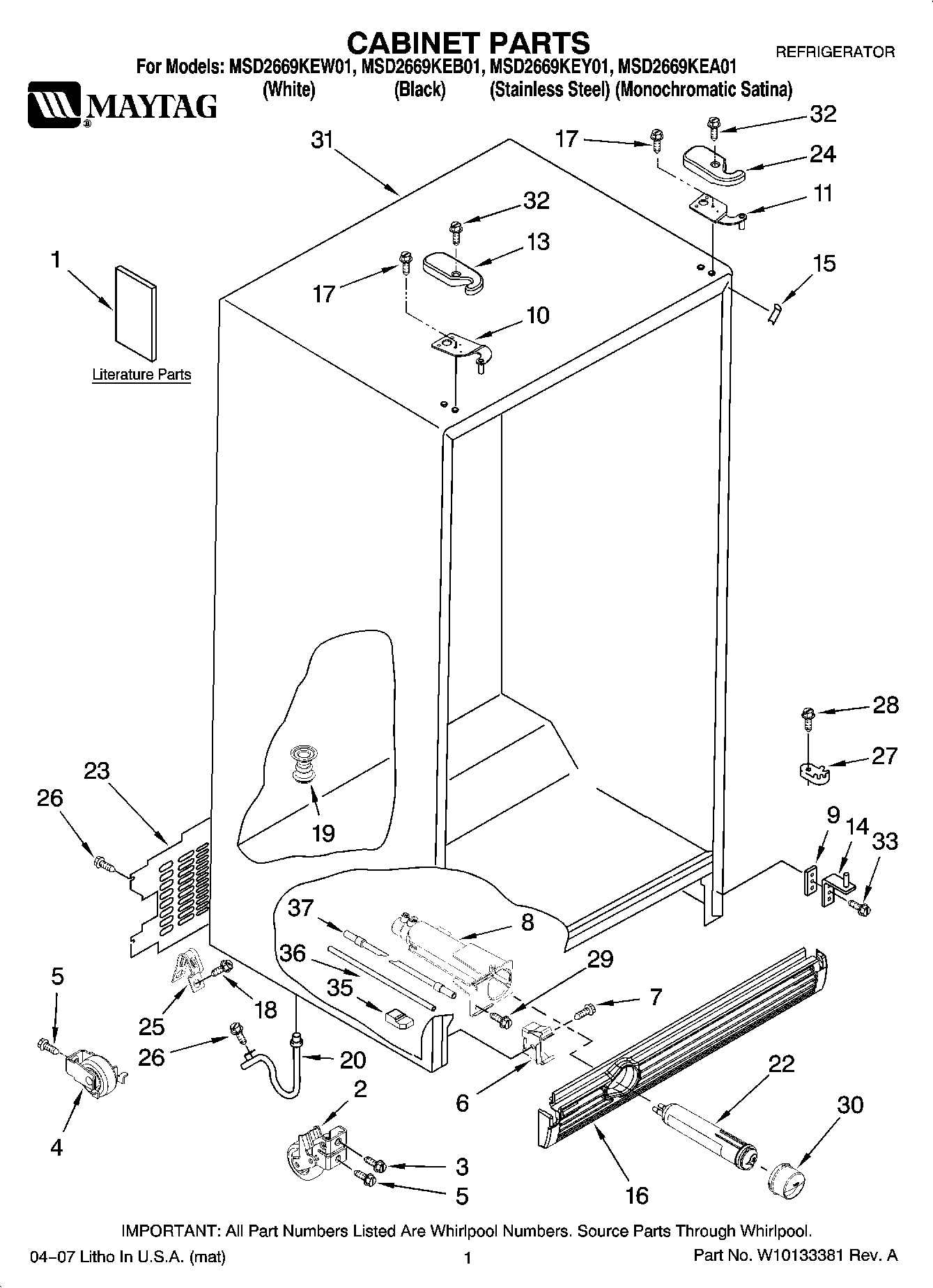

MSD2669KEW01 01 – CABINET PARTS

Products

Position	Product
1	MAY 2220407
1	MAY 2326267
1	MAY W10120325
1	Service & Wiring Sheet
1	Instruction Sheet, Door Removal
2	MAY 2254628
3	MAY W10079910
4	MAY 2254625
5	MAY 489427
6	MAY 2155013
7	MAY 489478
8	MAY 2186443
9	Shim
10	HINGE TOP, FC
11	HINGE TOP RC
13	Hinge Cover, FC (Apollo Gray)
13	HINGE COVER FC (BLACK)
13	HINGE COVER FC (WHITE)
14	MAY 2304322
15	MAY 2304846
15	MAY 2304848
15	MAY 2315169
16	Grille (Black)
16	Grille (White)
16	MAY 2198468AP
17	MAY 489497
18	Screw (3)
19	MAY 2304888
20	MAY 2304937
22	MAY 8212652
23	MAY 2188735
24	HINGE COVER RC (BLACK)
24	HINGE COVER RC (WHITE)
24	MAY 2203408AP
25	MAY 549193
26	MAY 489084
27	MAY 2155311
28	MAY 489483
29	MAY 489500
30	MAY 2186494AP
30	Cap, Water Filter (Black)
30	Cap, Water Filter (White)
32	MAY 8281227
33	Screw (4)
35	MAY 2186489
36	MAY 2304708
37	MAY 2319867
