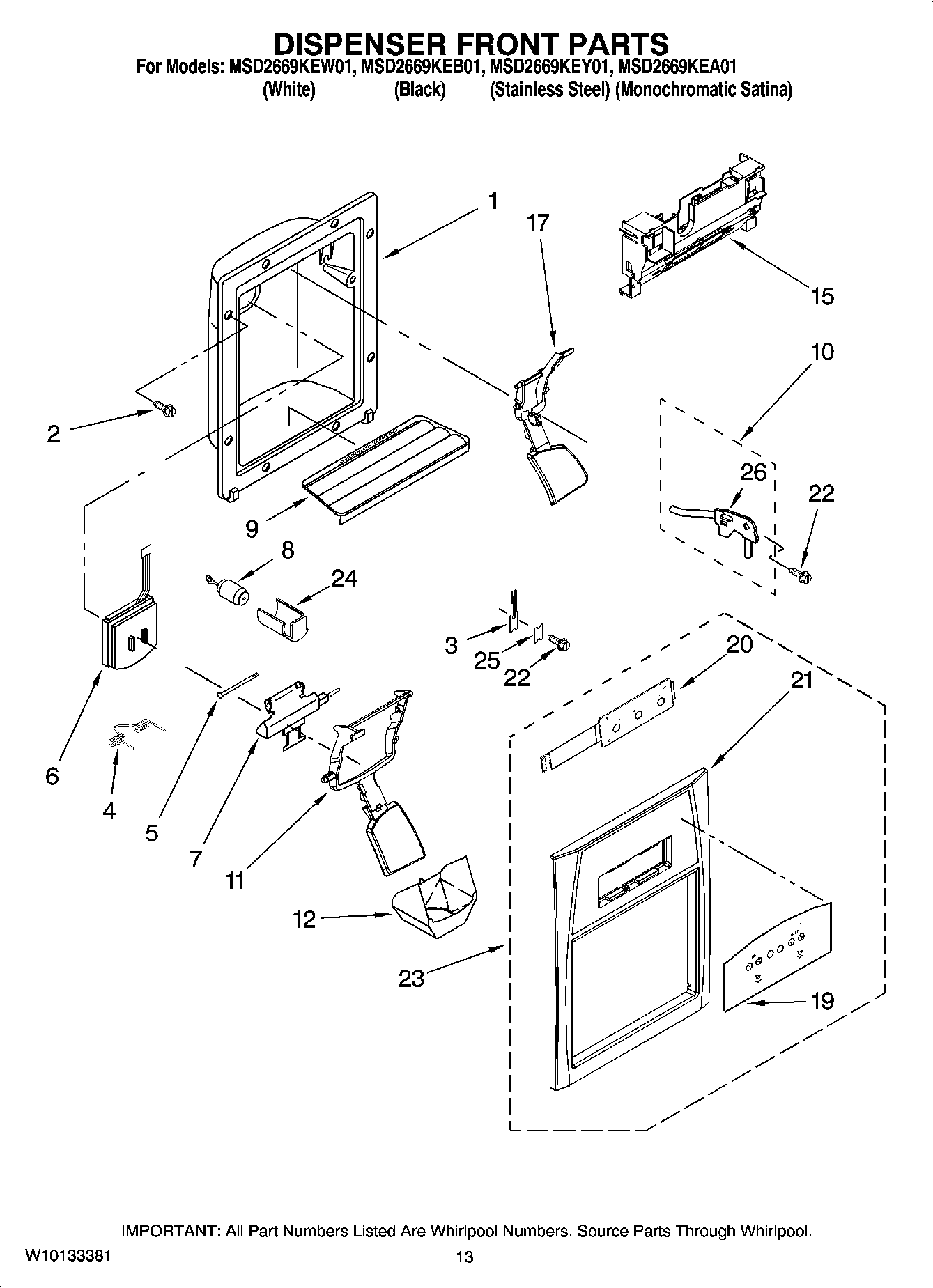

MSD2669KEW01 08 – DISPENSER FRONT PARTS
Written by
in
MSD2669KEW01 08 – DISPENSER FRONT PARTS
Products
Position
Product
2
Screw
3
MAY 2194719
4
MAY 2304772
5
MAY 2196195
6
MAY 2180353
7
MAY 2304355
8
MAY 2205686
9
Grille, Overflow (White)
9
MAY 2207007B
10
MAY 2304317
11
MAY 2203562AP
11
Lever, Ice Dispenser (White)
11
Lever, Ice Dispenser (Black)
12
MAY 2180224
15
MAY 2323002
17
MAY 2203561AP
17
Lever, Water Dispenser (Black)
17
Lever, Water Dispenser (White)
19
MAY 2202547
21
MAY LW10329576
22
MAY 489000
23
MAY W10120292
23
MAY W10120293
23
MAY W10121900
24
Sleeve, Delay Mechanism
25
MAY 2195051
26
MAY 2304673
←
