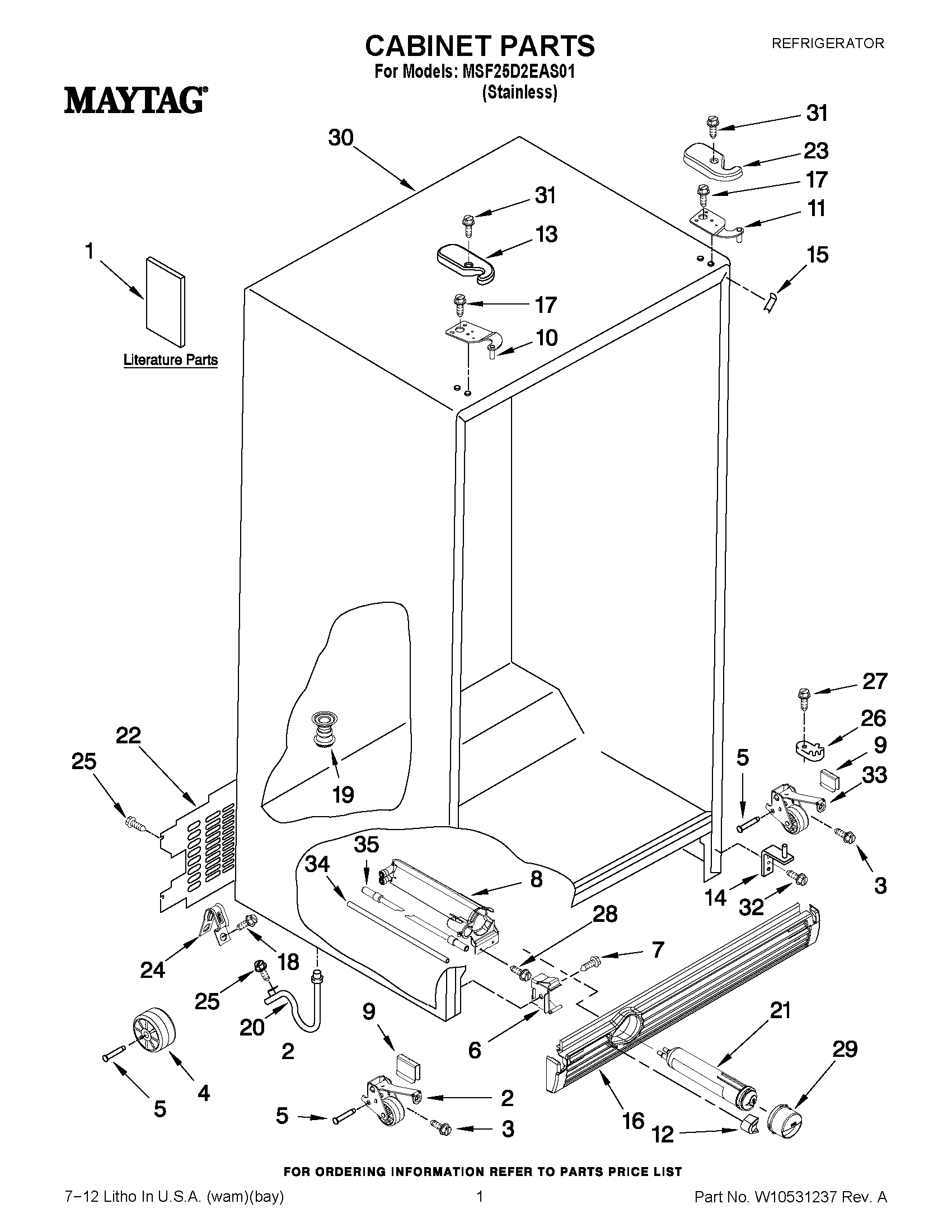

MSF25D2EAS01 01 – CABINET PARTS

MSF25D2EAS01 01 – CABINET PARTS

Written by

in

MSF25D2EAS01 01 – CABINET PARTS

Products

Position	Product
1	MAY W10458675
1	MAY W10207987
1	MAY W10154390
1	MAY W10321474
1	MAY 628370
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	Roller
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 489478
8	Housing, Water Filter
9	CLIP, ROLLER
10	HINGE TOP FC
11	HINGE, TOP RC
12	Button, Filter (Black)
13	HINGE COVER FC (BLACK)
14	HINGE BOTTOM (2)
15	CORNER FILLER (BLACK)
16	GRILLE
17	MAY 489497
18	Screw (3)
19	MAY 2304888
20	MAY W10153550
21	MAY 4396841
22	MAY 2188735
23	HINGE COVER RC (BLACK)
24	MAY 549193
25	MAY 489084
26	MAY 2155311
27	MAY 489483
28	MAY 489500
29	MAY 2260502B
30	LINER (NOT A SERVICEABLE PART)
31	MAY 8281227
32	Screw (4)
33	ROLLER, FRONT (RIGHT)
34	Tube, Filter Outlet
35	MAY W10281289
