MSF25D2EAS01 05 – MOTOR AND ICE CONTAINER PARTS
Written by
in

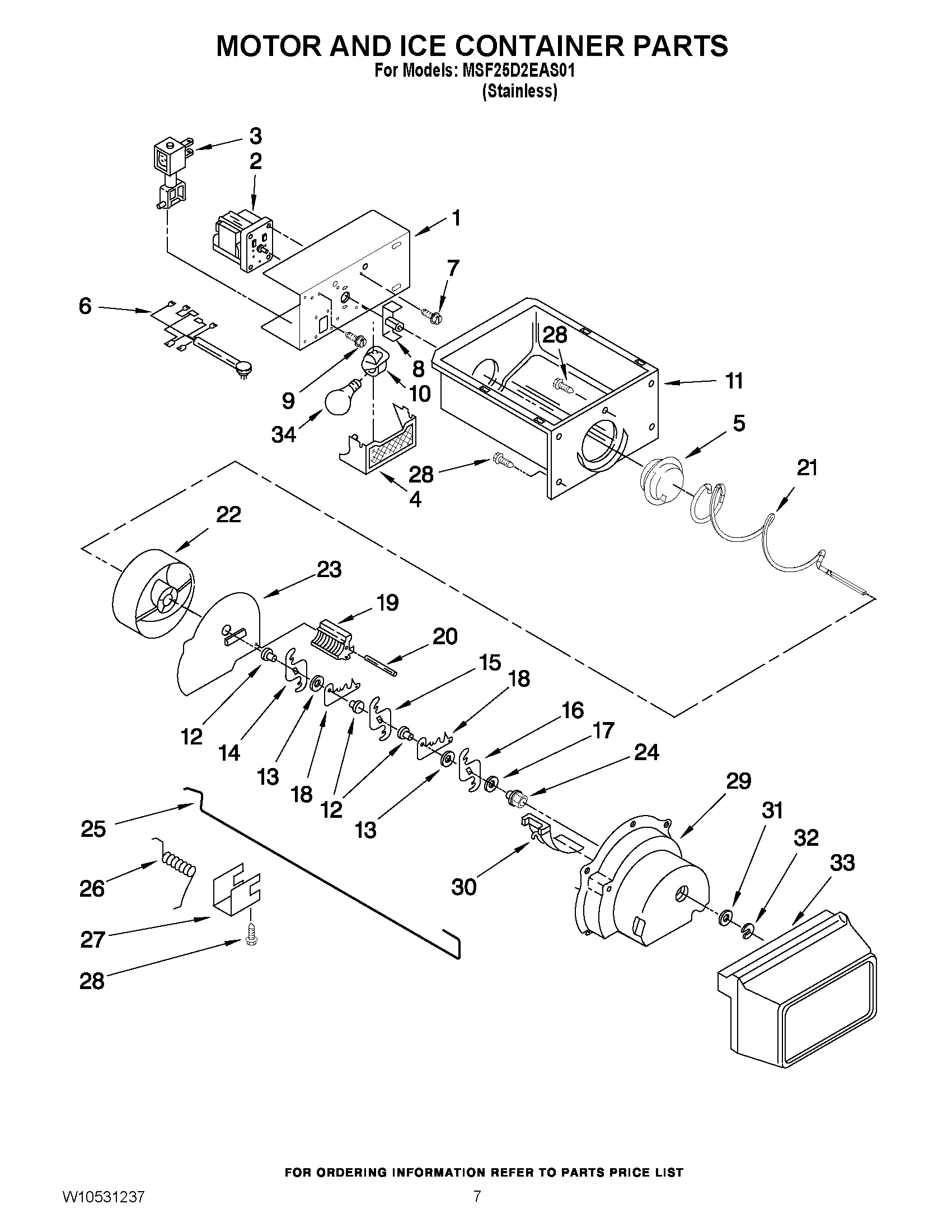

MSF25D2EAS01 05 – MOTOR AND ICE CONTAINER PARTS
Products
Position
Product
1
MAY W10304376
2
MAY W10317991
3
Soleniod Assembly
4
MAY 2171706
5
COUPLING, ICE CONVEYOR
6
MAY W10281336
7
Screw 8-32 x 5/16
8
MAY W10169511
9
MAY 489478
10
Socket, Light
11
MAY 2196091
12
MAY 1119005
13
MAY 1119007
14
MAY W10278731
15
MAY W10278732
16
MAY W10278733
17
MAY 489235
18
MAY W10278727
19
Block, Blade
20
MAY 489229
21
MAY W10295082
22
MAY 2305377
23
MAY 2171682
24
MAY 1119018
25
MAY 2155231
26
MAY 1119020
27
MAY 1119021
28
MAY 488886
29
MAY 2180348
30
MAY 1119017
31
MAY 489234
32
MAY 489236
33
FRONT COVER ICE CONTAINER
34
MAY 527949
100
MAY W10312300
←
