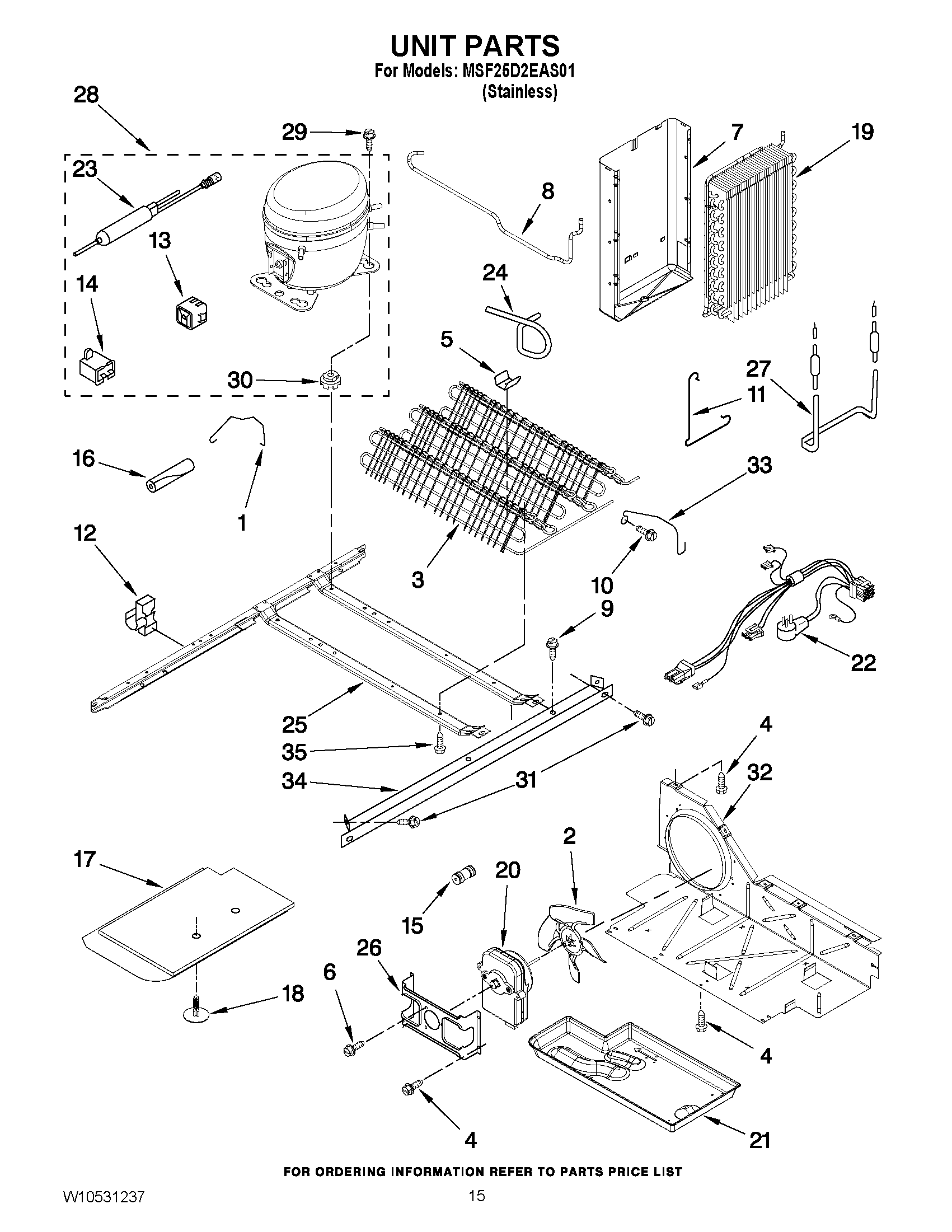

MSF25D2EAS01 09 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (1/2``)
NI	MAY 876764
NI	VALVE, ACCESS (1/4``)
NI	Valve, Access (5/16``)
NI	VALVE, ACCESS (3/8``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
1	MAY W10174384
2	MAY 2225834
3	Condenser Assembly (Also Order 7)
4	Screw (3)
5	MAY 2311725
6	MAY 8533993
7	Heat Shield
8	MAY W10210786
9	MAY 489427
10	MAY 489478
11	Clip
12	Clip, Wire
13	Start-Device, Combination (Start Relay and Overload) (Production)
13	Start-Device, Combination (Start Relay and Overload)
14	Capacitator (Production)
15	CONNECTOR, WATER
16	Sleeve, Pressure Switch Hose
17	ASSEMBLY, UNIT COVER (BOTTOM)
18	MAY 489396
19	Evaporator
20	MAY W10204250
21	MAY 1105523
22	HARNESS, UNIT
23	Drier
23	Drier
24	Process Tube
25	Unit Mounting Frame
26	MAY 2181929
27	MAY 2188175
28	Compressor (Includes Items 9, 12, 20 & 28) (Also Order 876765 Tube Kit)
29	MAY 489473
30	Grommet (Production)
30	MAY 2183042
31	MAY 489340
32	MAY W10332806
33	MAY 2260517
34	Unit Mounting Rail
35	MAY 8281232
