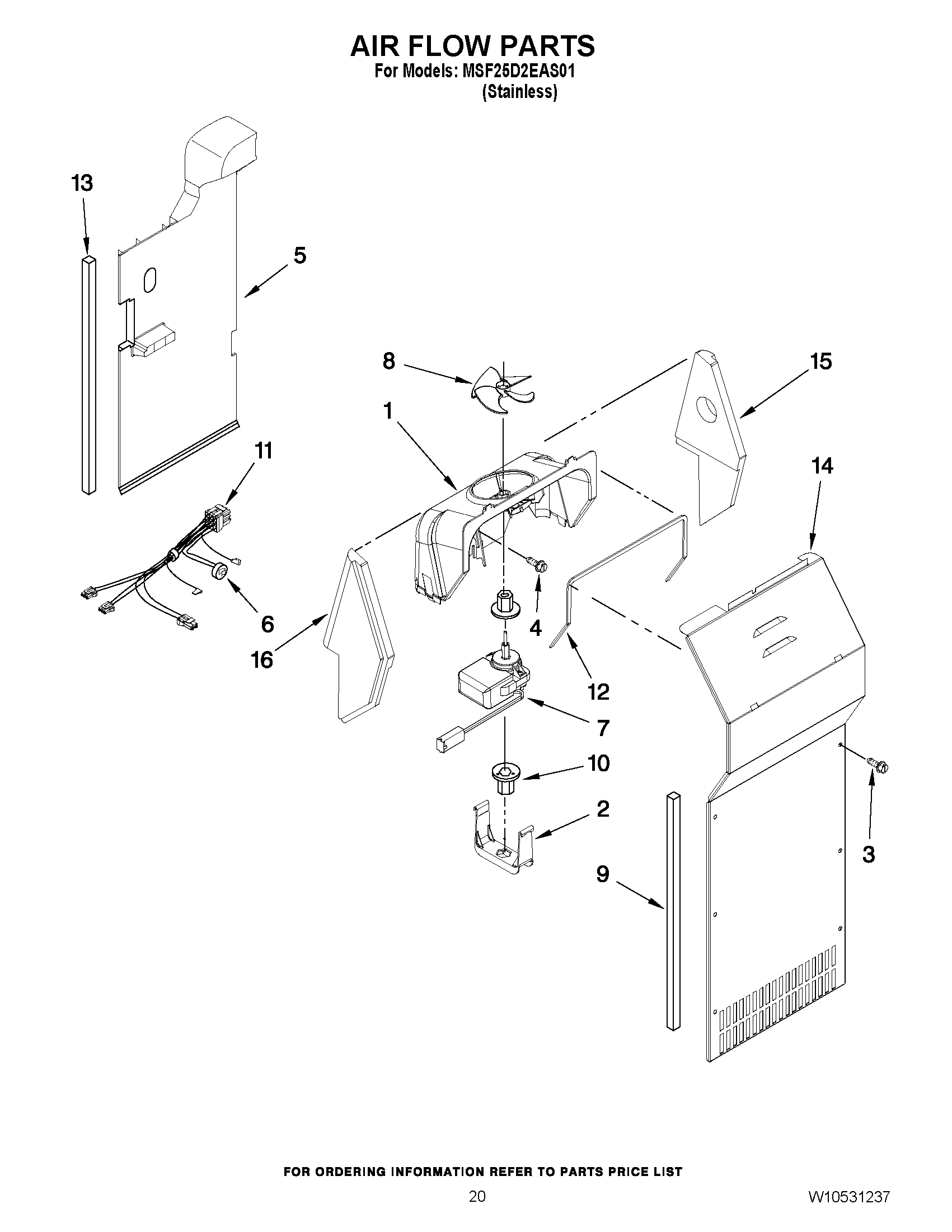

MSF25D2EAS01 12 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY 2155590
3	MAY 8281159
4	MAY 489478
5	AIR DUCT FREEZER
6	MAY W10225581
7	MAY W10312647
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	HARNESS, FAN EVAPORATOR (INCLUDES No.4)
12	Gasket, Fan Scroll
13	GASKET
14	Cover, Evaporator (Includes 9)
15	SUPPORT, FAN SCROLL (RIGHT HAND)
16	SUPPORT, FAN SCROLL (LEFT HAND)
