MSF25D4MDE02 02 – CABINET PARTS – Aparts

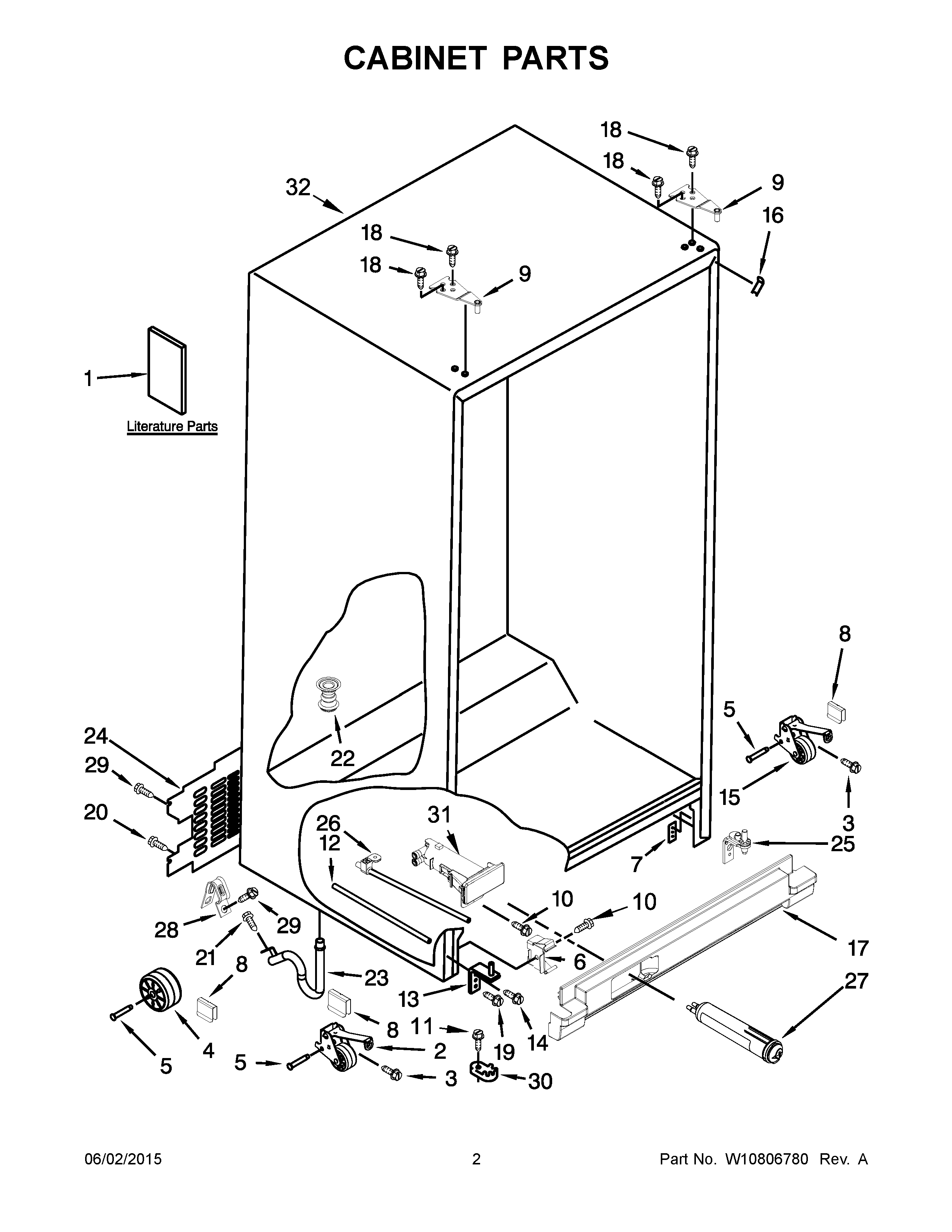

MSF25D4MDE02 02 – CABINET PARTS

Products

Position	Product
1	MAY W10611005
1B	MAY W10449647
1C	MAY 628370
1A	MAY W10621140
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	MAY W10475495
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 2304249
8	CLIP, ROLLER
9	HINGE, TOP (WHITE)
9B	DOOR HINGE ASSEMBLY (GREY)
9A	HINGE, TOP (BLACK)
10	MAY 489500
11	MAY W10142234
12	MAY W10350006
13	MAY W10414753
14	Screw (4)
15	ROLLER, FRONT (RIGHT)
16A	CORNER FILLER (BLACK)
16B	FILLER, CORNER (GREY)
16	CORNER FILLER (WHITE)
17A	MAY W10348651
17B	GRILE (GREY)
17	MAY W10348650
18	SCREW (WHITE)
18A	SCREW (BLACK)
19	MAY 3400103
20	SCREW
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	MAY 2188739
25	MAY W10714071
26	MAY W10350007
27	MAY W10569758
28	MAY 549193
29	MAY 489084
30	CLOSER, FREEZER DOOR
31	MAY W10350062
31A	MAY W10350063
31B	MAY W10350065
32	LINER (NOT A SERVICEABLE PART)
