MSF25D4MDE02 03 – REFRIGERATOR LINER PARTS – Aparts

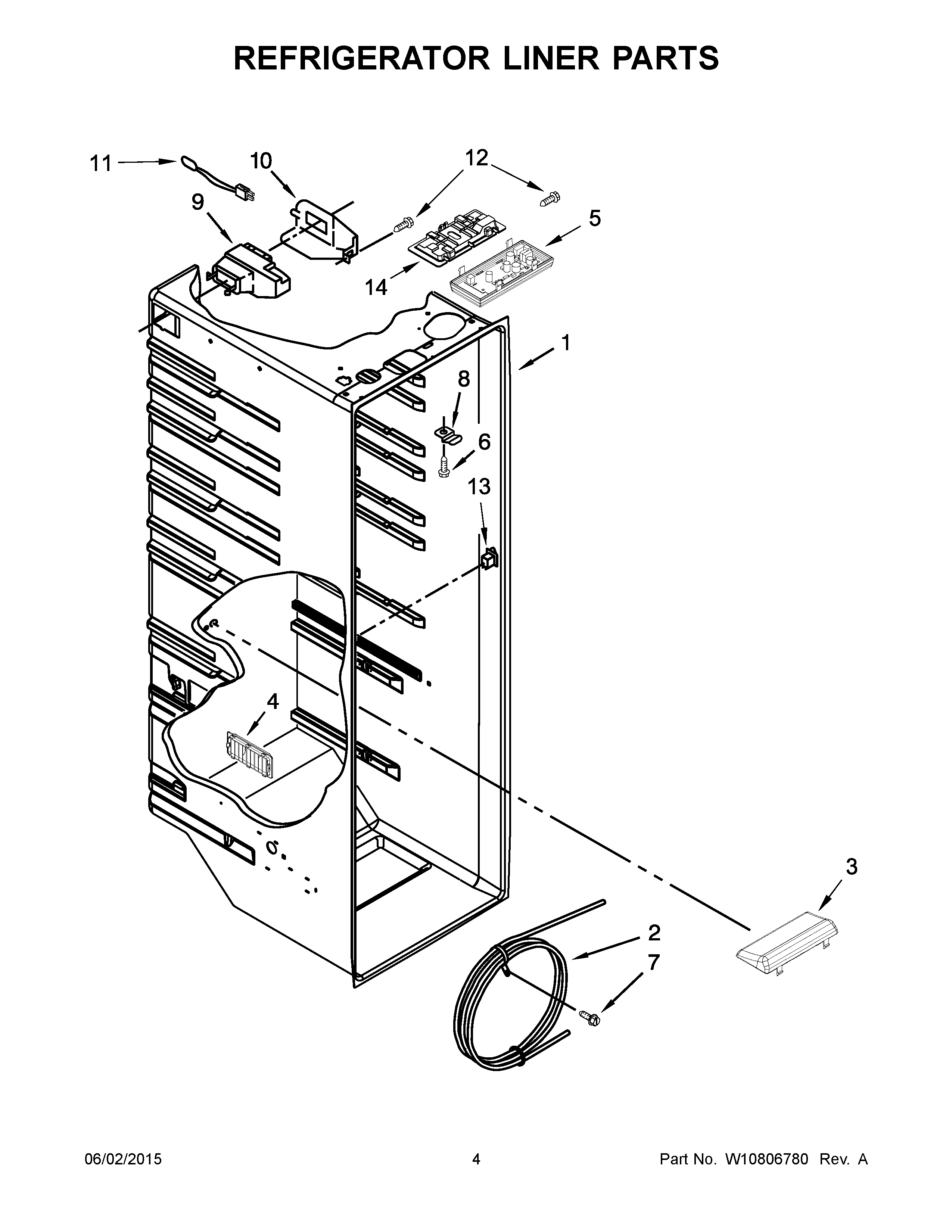

MSF25D4MDE02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	RESERVOIR
3	MAY W10515057
4	MAY W10550195
5	MAY W10515058
6	MAY 489084
7	Screw
8	CLIP, CONTROL BOX
9	ASSEMBLY, AIR DIFFUSER
10	MAY W10128735
11	MAY 2188819
12	SCREW 8-15 X 3/4
13	MAY 1118894
14	MAY W10445802
