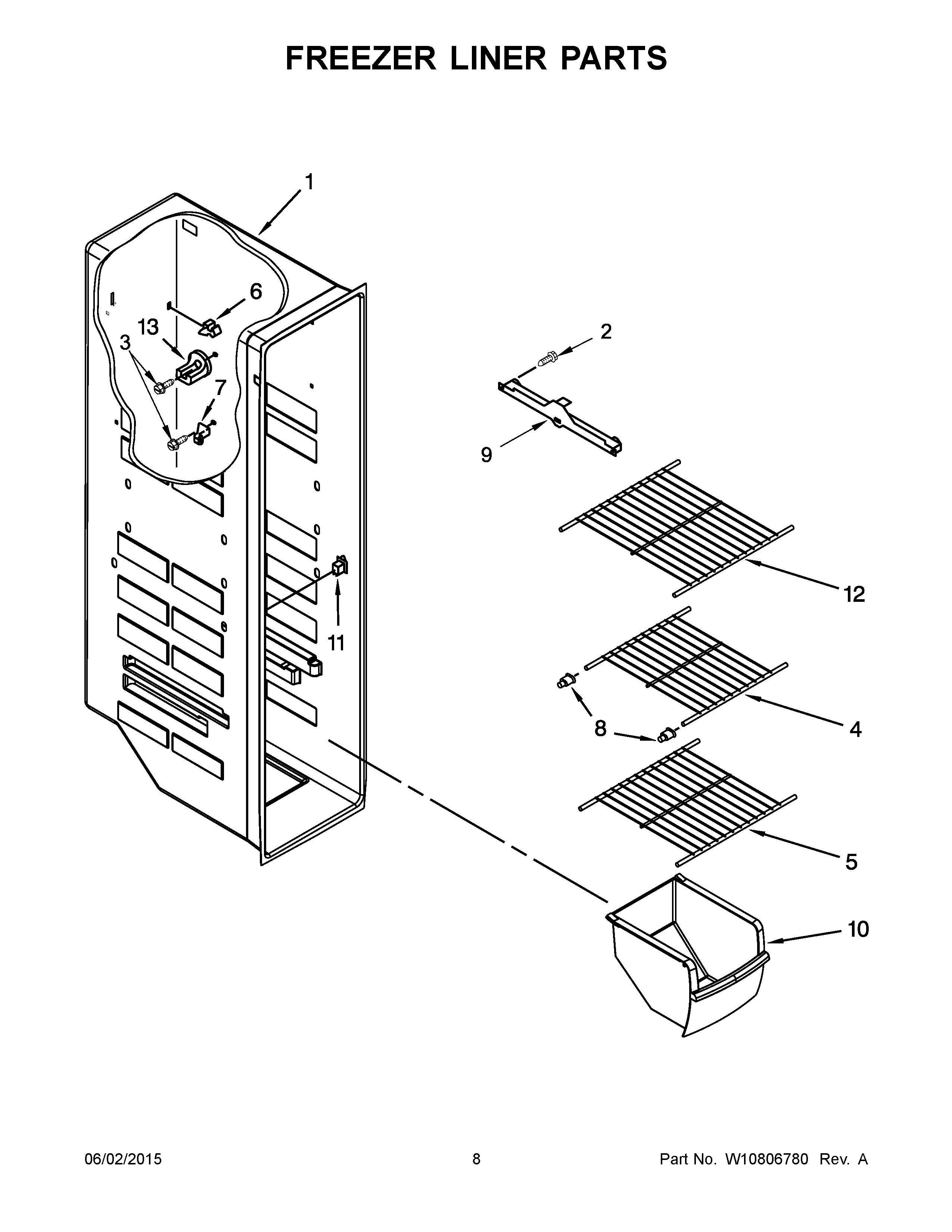

MSF25D4MDE02 05 – FREEZER LINER PARTS

MSF25D4MDE02 05 – FREEZER LINER PARTS

Written by

in

MSF25D4MDE02 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY 489100
3MAY 3400893
4MAY W10698645
5MAY W10698646
6MAY 2315163
8Cup, Shelf Mount
9ASlide, Container (Right Side)
9Slide, Container (Left Side)
10Freezer Bin
11MAY 2321285
12MAY W10698644
13Support, Stud (4)
