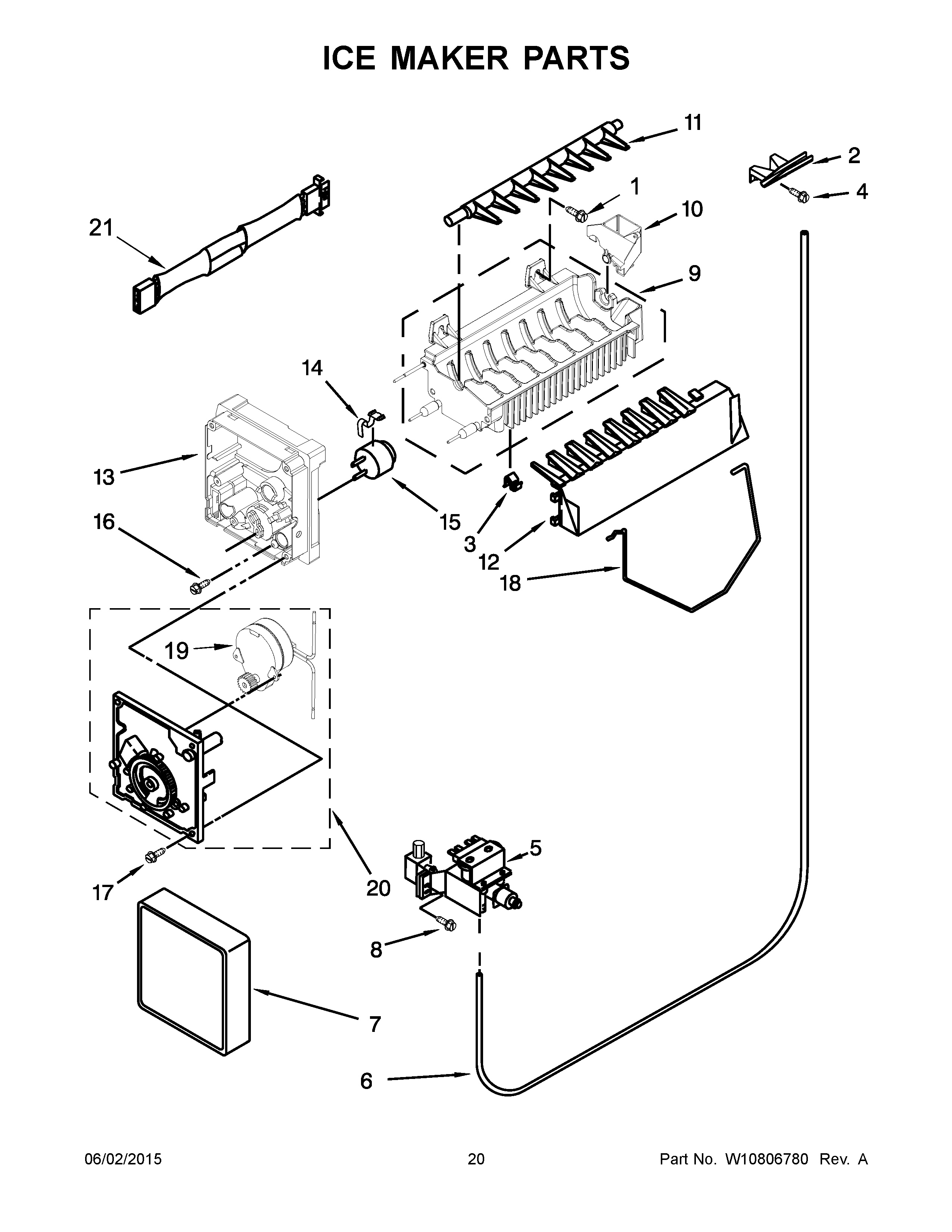

MSF25D4MDE02 11 – ICE MAKER PARTS

Products

Position	Product
1	Screw
2	MAY 2209774
3	Clip
4	MAY 489478
5	MAY W10179146
6	MAY W10357076
7	COVER
8	MAY 488649
9	ASSEMBLY, MOLD AND HEATER
10	MAY W10435665
11	MAY W10318914
12	ICE STRIPPER
13	Support & Motor Assembly
14	MAY 2315522
15	Thermostat (Also Order 542369 Cement)
16	Screw (2)
17	Screw (3)
18	MAY 2304354
19	LINER (NOT A SERVICEABLE PART)
20	Module Assembly (Includes Items 23 and 24)
21	MAY W10508644
100	MAY W10300022
