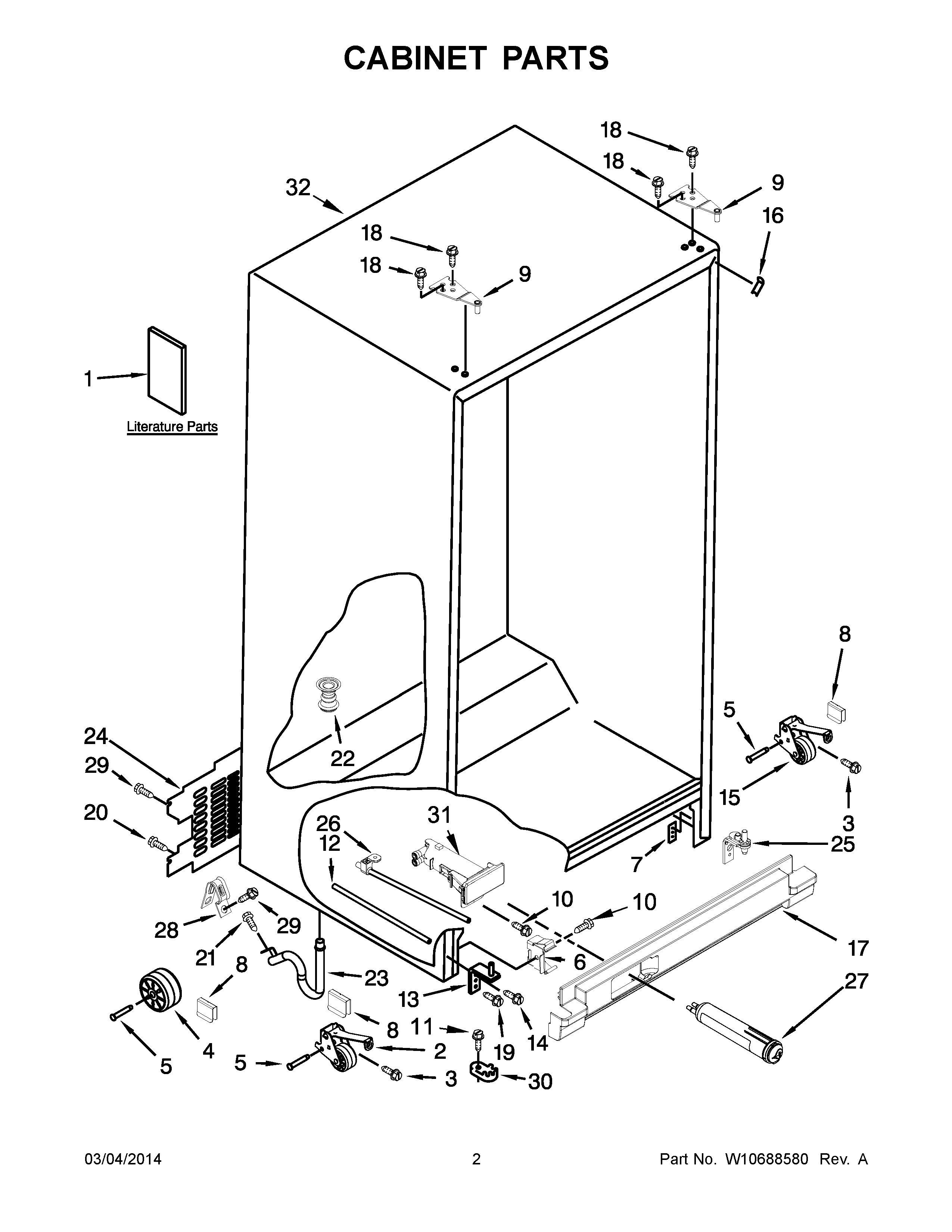

MSF25D4MDM00 02 – CABINET PARTS

MSF25D4MDM00 02 – CABINET PARTS

Written by

in

MSF25D4MDM00 02 – CABINET PARTS

Products

Position	Product
1	MAY W10449647
1	MAY W10611005
1	MAY W10621140
1	MAY 628370
2	ROLLER, FRONT (LEFT)
3	MAY 2152958
4	MAY W10475495
5	AXLE, ROLLER
6	MAY 2155013
7	MAY 2304249
8	CLIP, ROLLER
9	HINGE, TOP (BLACK)
9	HINGE, TOP (WHITE)
9	HINGE TOP (FC) (GREY)
10	MAY 489500
11	MAY W10142234
12	MAY W10350006
13	MAY W10414753
14	Screw (4)
15	ROLLER, FRONT (RIGHT)
16	CORNER FILLER (BLACK)
16	FILLER, CORNER (GREY)
16	CORNER FILLER (WHITE)
17	MAY W10348651
17	MAY W10348650
17	GRILE (GREY)
18	SCREW (BLACK)
18	SCREW (WHITE)
19	MAY 3400103
20	SCREW
21	Screw (3)
22	MAY 2304888
23	MAY W10153550
24	MAY 2188739
25	MAY W10409481
26	MAY W10350007
27	MAY W10569758
28	MAY 549193
29	MAY 489084
30	CLOSER, FREEZER DOOR
31	MAY W10350063
31	MAY W10350065
31	MAY W10350062
32	LINER (NOT A SERVICEABLE PART)
