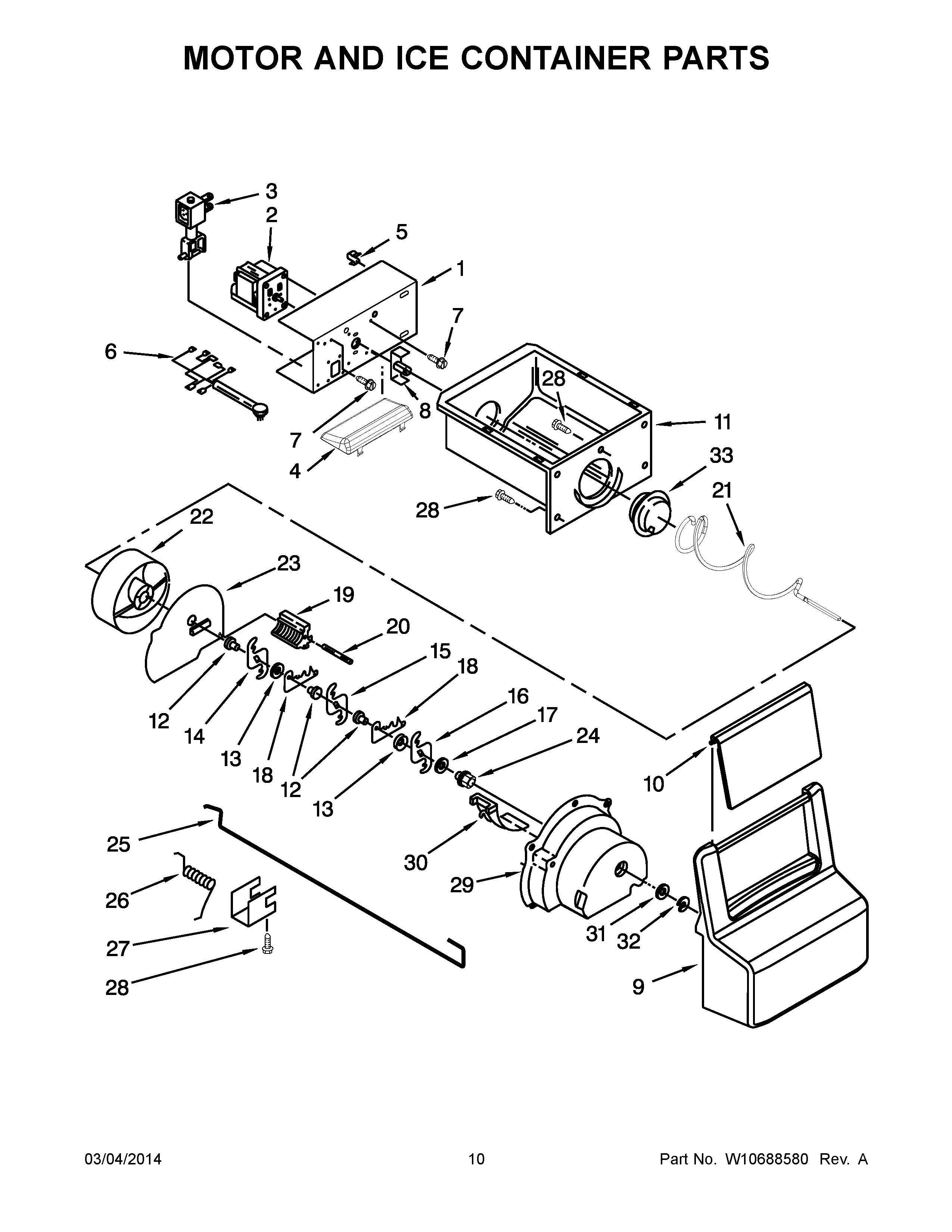

MSF25D4MDM00 06 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	MAY W10397980
2	MAY W10317991
3	Soleniod Assembly
4	MAY W10515057
5	MAY 1129563
6	MAY W10417930
7	Screw 8-32 x 5/16
8	MAY W10169511
9	Front Cover, Ice Container
10	ICE DOOR
11	MAY 2196091
12	MAY W10189661
13	MAY W10189658
14	MAY W10278731
15	MAY W10278732
16	MAY W10278733
18	MAY W10181990
19	MAY W10189708
20	MAY 489229
21	MAY W10295082
22	MAY 2305377
23	MAY 2171682
24	MAY 1119018
25	MAY 2155231
26	MAY 1119020
27	MAY 1119021
28	MAY 488886
29	MAY W10185018
30	MAY 1119017
31	MAY 489234
32	MAY 489236
33	COUPLING, ICE CONVEYOR
100	MAY W10406981
