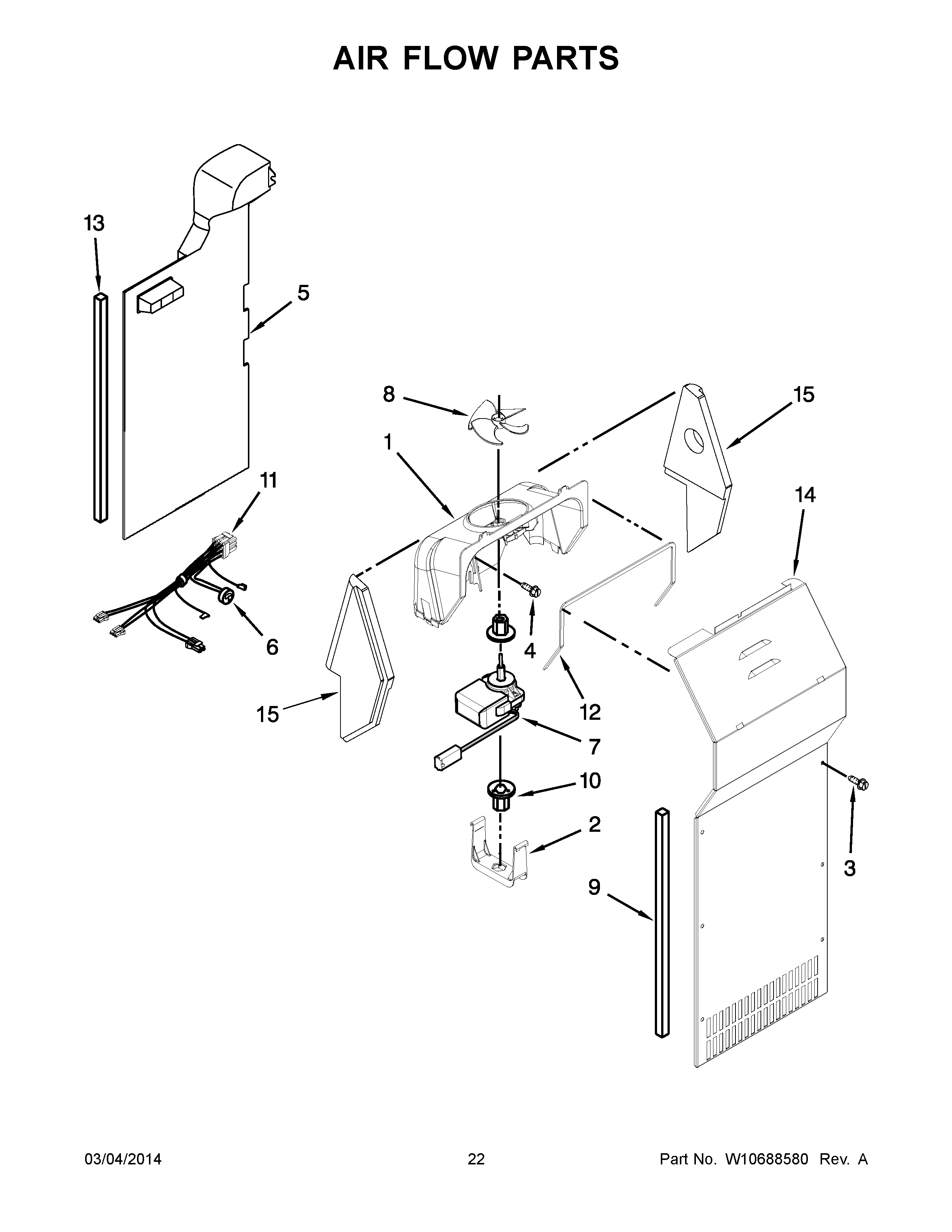

MSF25D4MDM00 12 – AIR FLOW PARTS

Written by

Products

Position	Product
1	Fan Scroll
2	MAY W10260421
3	SCREW
4	MAY 489478
5	AIR DUCT FREEZER
6	MAY W10225581
7	MAY W10312647
8	Blade, Fan (Evaporator)
9	Gasket
10	GROMMET, MOTOR
11	MAY W10539759
12	Gasket, Fan Scroll
13	GASKET
14	MAY W10463013
15	SUPPORT, FAN SCROLL (LEFT HAND)
15	SUPPORT, FAN SCROLL (RIGHT HAND)
