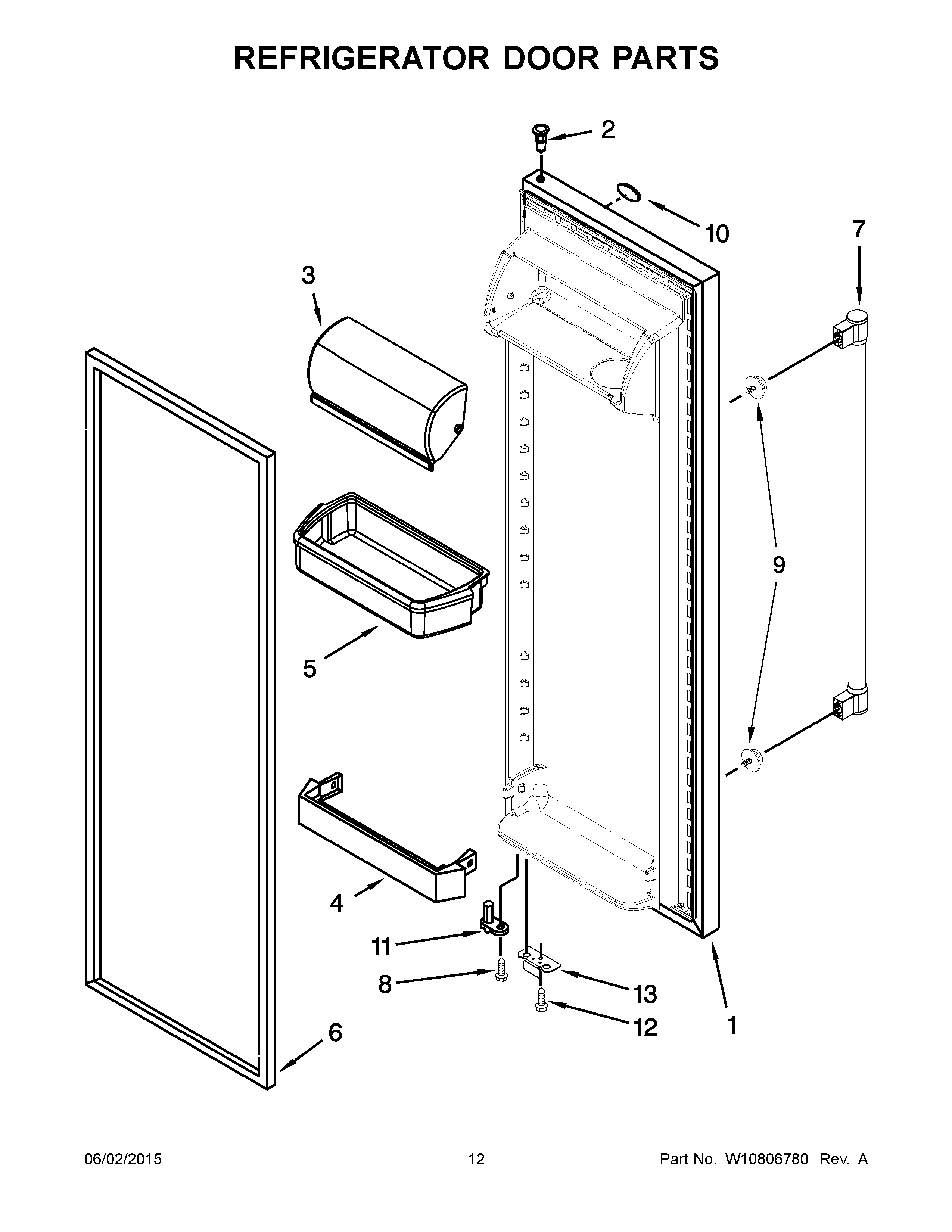

MSF25D4MDM02 07 – REFRIGERATOR DOOR PARTS

MSF25D4MDM02 07 – REFRIGERATOR DOOR PARTS

Written by

in

MSF25D4MDM02 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1AMAY W10407712
1BREFRIGERATOR DOOR (INCLUDES ITEM #6) (MONOCHROMATIC STAINLESS)
1REFRIGERATOR DOOR (INCLUDES ITEM 4) (WHITE)
2THIMBLE
3Door, Compartment
4Trivet
5MAY W10710203
6AMAY 2309529
6Door Gasket, Magnetic (White)
6BDOOR GASKET, MAGNETIC (SERVICE) (GREY)
7ASSEMBLY, HANDLE (STAINLESS)
8MAY 3400012
9MAY W10460893
10MAY W10612926
11DOOR CLOSER
12MAY 489420
13AMAY W10219802
13BMAY W10507574
13MAY W10219801
