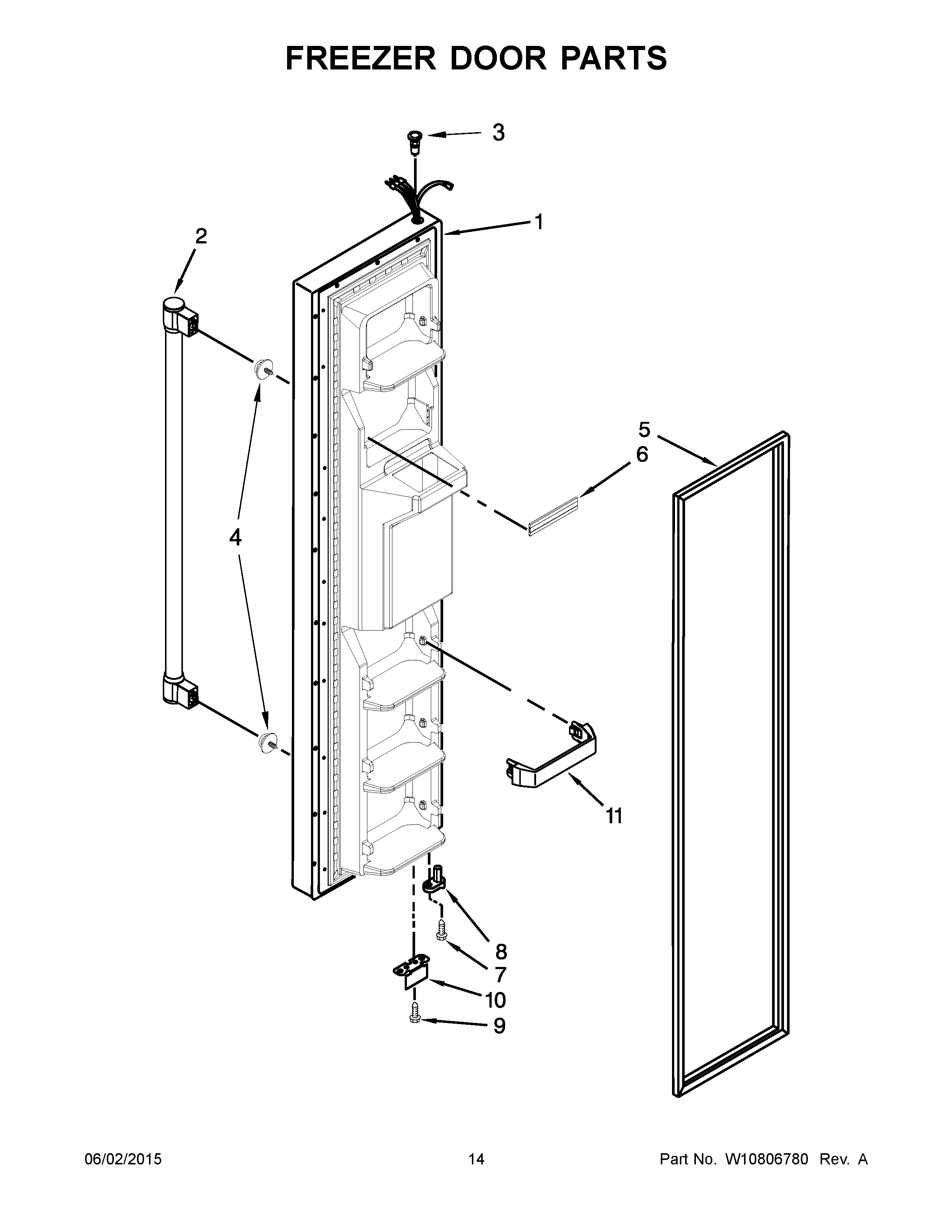

MSF25D4MDM02 08 – FREEZER DOOR PARTS

MSF25D4MDM02 08 – FREEZER DOOR PARTS

Written by

in

MSF25D4MDM02 08 – FREEZER DOOR PARTS

Products

PositionProduct
1BFREEZER DOOR (INCLUDES ITEM #5 AND DISPENSER FRONT PARTS) (MONOCHROMATIC STAINLESS)
1FREEZER DOOR (INCLUDES ITEM #5 AND DISPENSER FRONT PARTS) (WHITE)
1AFREEZER DOOR (INCLUDES ITEM #5 AND DISPENSER FRONT PARTS) (BLACK)
2ASSEMBLY, HANDLE (STAINLESS)
3THIMBLE
4MAY W10460893
5BDOOR GASKET, MAGNETIC (SERVICE) (GREY)
5AMAY 2309533
5Door Gasket, Magnetic (White)
6MAY W10307494
7MAY 3400012
8THIMBLE, CAM
9MAY 489420
10BMAY W10507570
10AMAY 2306940B
10MAY 2306940
11Trim, Door (4)
