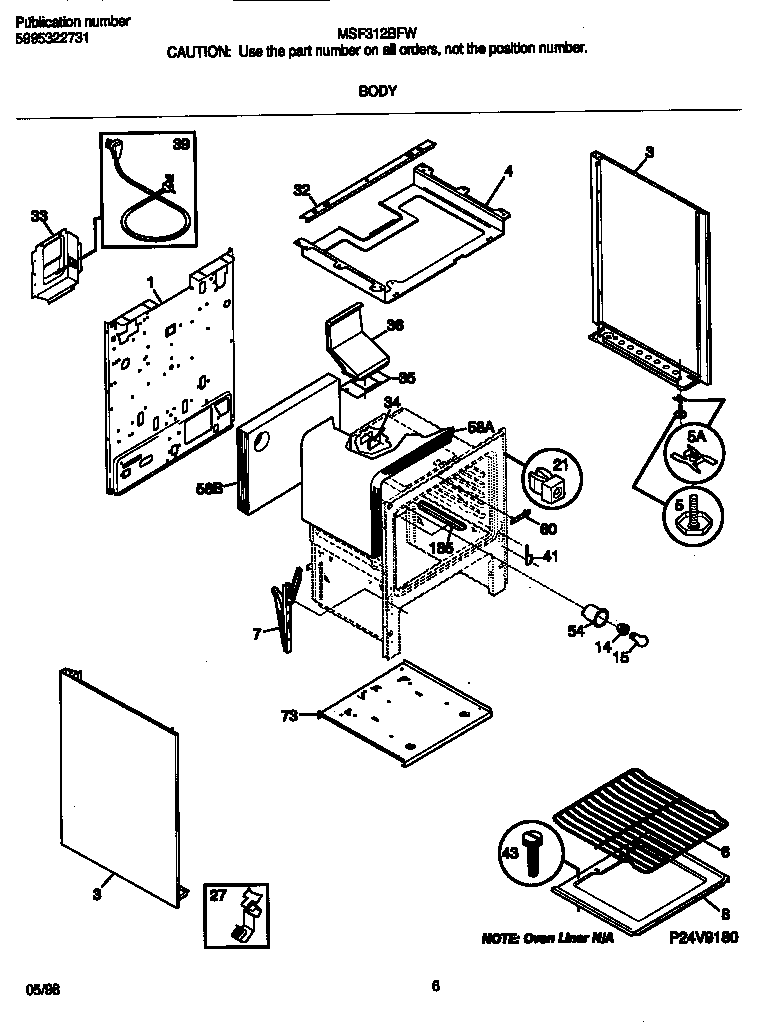

MSF312BFWB 04 – BODY

MSF312BFWB 04 – BODY

Written by

in

MSF312BFWB 04 – BODY

Products

PositionProduct
*35731WCI 316081029
*35734316064600 Frigidaire Oven Support
*35730WCI 316056500
*35729Screw,cup pt ,8-18 x 0.375 ,chrome
*35733316116000 Frigidaire Screw
*35732WCI 3934058
*35735SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
1WCI 316029412
3WCI 316081028
4WCI 316067206
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5SCREW-LEVELING
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15WCI 5300067016
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32WCI 3203394
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
39AWCI 316001220
39BWCI 316047600
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58INSULATION, OVEN WRAPPER
58INSUL – OVEN BACK (NON-ILLUSTRATED)
60COVER-OVEN FRONT
73WCI 316109901
185316112900 Frigidaire SHIELD
