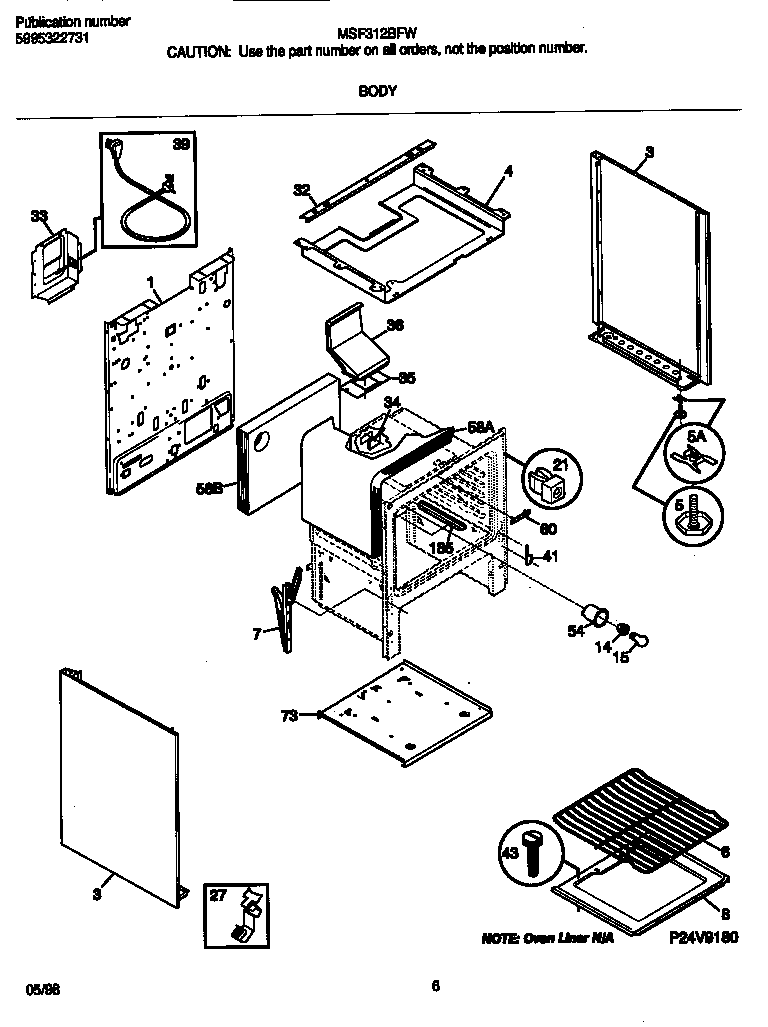

MSF312BFWE 04 – BODY

MSF312BFWE 04 – BODY

Written by

in

MSF312BFWE 04 – BODY

Products

PositionProduct
*35730WCI 316056500
*35734316064600 Frigidaire Oven Support
*35729Screw,cup pt ,8-18 x 0.375 ,chrome
1WCI 316029412
3AWCI 316081034
3BWCI 316081035
4WCI 316067206
5WCI 316107300
6316067902 Frigidaire Oven Rack
7Hinge,oven door ,(2)
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15WCI 5300067016
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32WCI 3203394
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131931
39BWCI 316047600
39AWCI 316001220
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73WCI 316109902
170A316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170B316116000 Frigidaire Screw
185316112900 Frigidaire SHIELD
