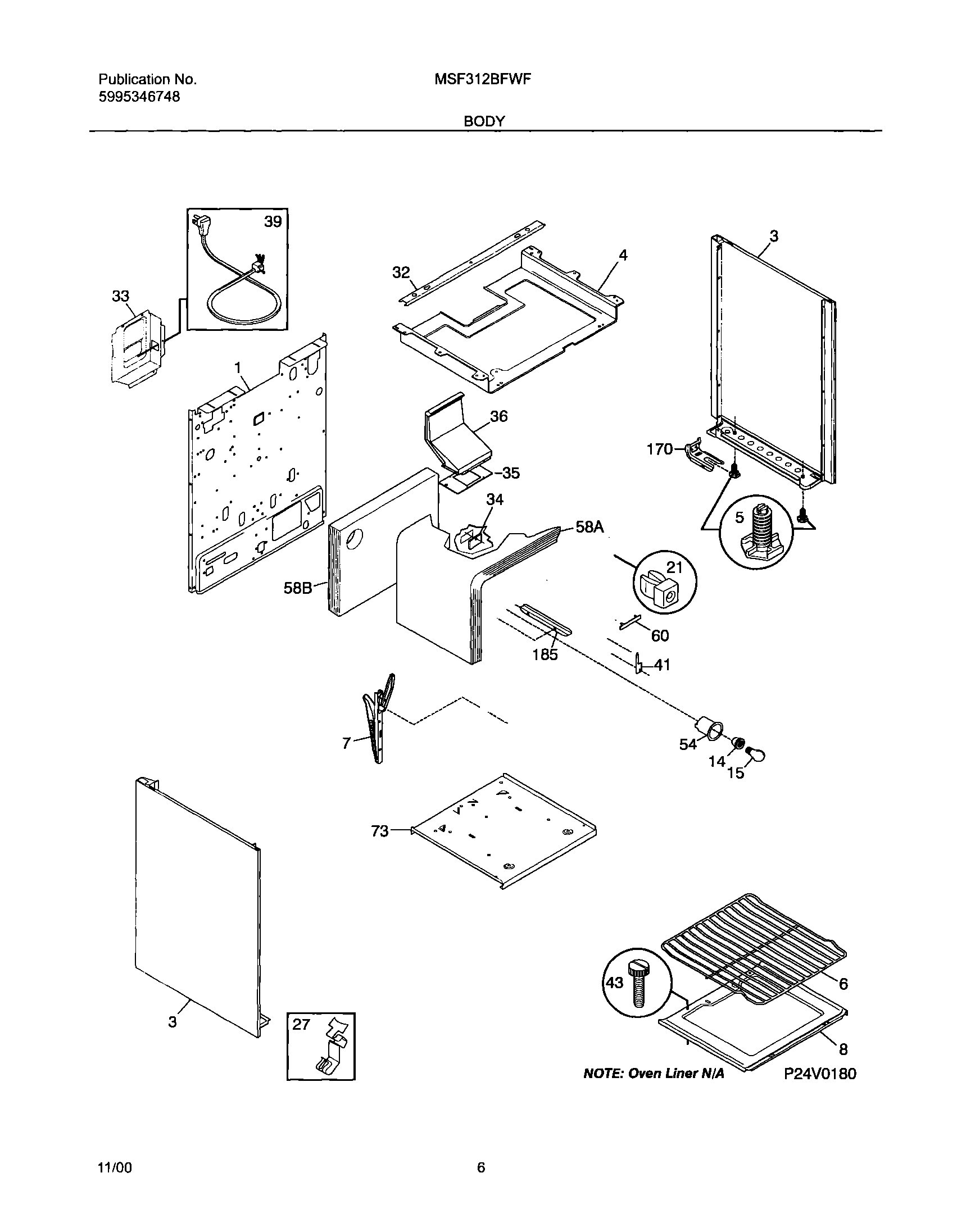

MSF312BFWF 07 – BODY

Products

Position	Product
NI	Screw,cup pt ,8-18 x 0.375 ,chrome
NI	WCI 5303280311
NI	5303285179 Frigidaire Oven Door Screw
NI	316021105 Frigidaire Oven Screw
NI	5303271648 Frigidaire Oven Screw
NI	316064600 Frigidaire Oven Support
NI	WCI 316001220
NI	WCI 316056500
1	WCI 316029416
3	WCI 316081035
3	WCI 316081034
4	WCI 316067206
5	WCI 316129200
6	316067902 Frigidaire Oven Rack
7	Hinge,oven door ,(2)
8	PANEL-OVEN BOTTOM
14	316116400 Frigidaire Oven Light Socket
15	WCI 5300067016
21	SPACER-BODYSIDE, (8)
27	5303284616 Frigidaire Range Bulb Clip Thermostat
32	WCI 316107503
33	WCI 316055600
34	COVER-IGNITOR
35	316542102 Frigidaire Flue Gasket
36	WCI 3131931
39	WCI 316047600
41	WCI 3131570
43	316282700 Frigidaire Oven Screw
54	WCI 5303271606
55	WCI 5304403185
58B	INSUL – OVEN BACK (NON-ILLUSTRATED)
58A	INSULATION, OVEN WRAPPER
73	WCI 316109902
170	316112500 Frigidaire Oven Template
170	316116000 Frigidaire Screw
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
185	316112900 Frigidaire SHIELD
