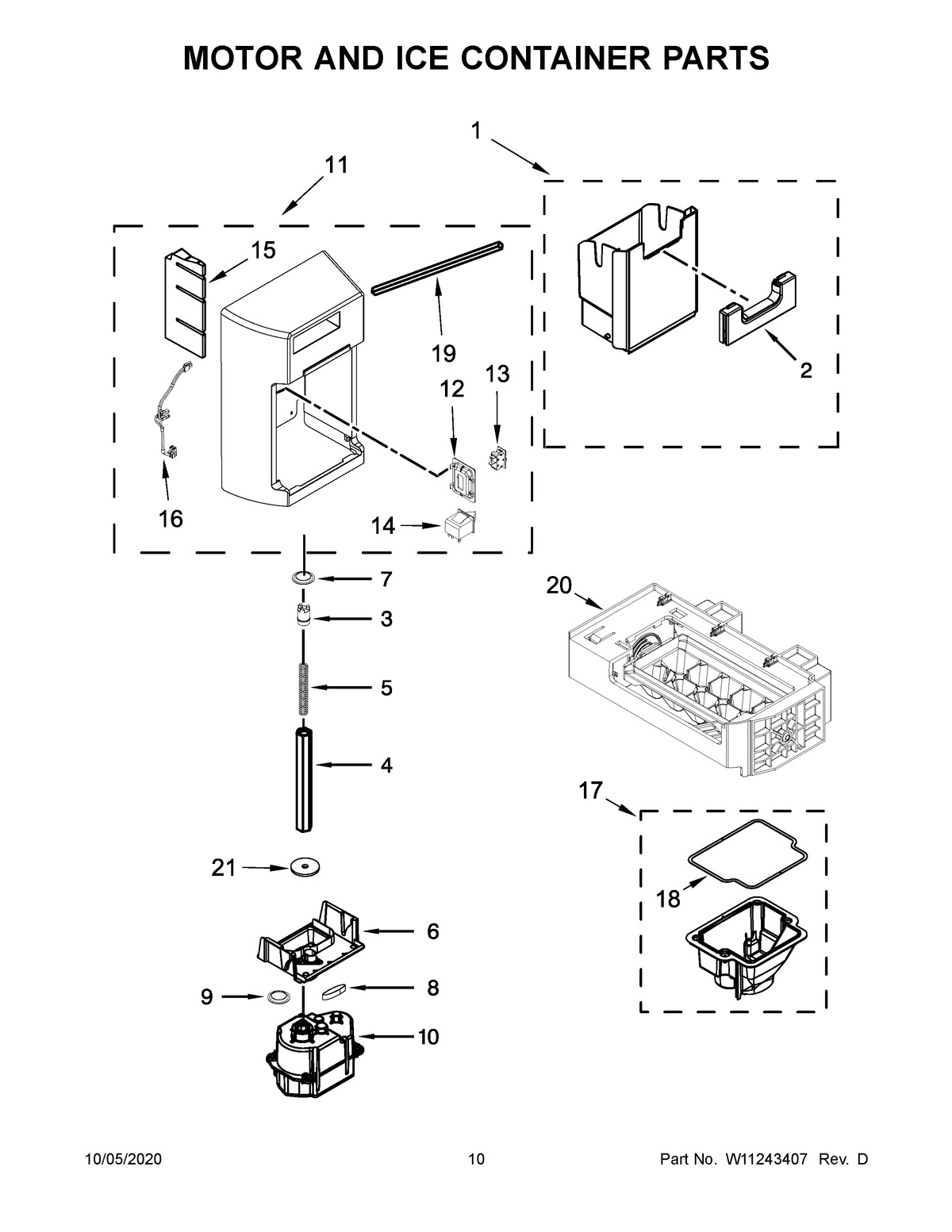

MSS25C4MGK00 06 – MOTOR AND ICE CONTAINER PARTS

Products

Position	Product
1	ICE CONTAINER (COMPLETE)
2	ASSEMBLY, LATCH
3	Coupling, Bottom
4	SHAFT, DRIVE
5	MAY W10754509
6	ASSEMBLY, MOUNTING PLATE
7	MAY 2198628
8	GASKET
9	MAY 2212370
10	MOTOR, DISPENSER
11	COVER, CONTAINER
12	MAY W10691248
13	MAY W10666871
14	SWITCH, ROCKER ARM
15	FILLER, EPS ICEMAKER COVER
16	MAY W10646076
17	ASSEMBLY, MOTOR BOX
18	GASKET
19	GASKET, FOAM
20	ASSEMBLY, ICE MAKER
21	MAY 2305382
