MSS25C4MGK00 07 – REFRIGERATOR DOOR PARTS

MSS25C4MGK00 07 – REFRIGERATOR DOOR PARTS

Written by

in

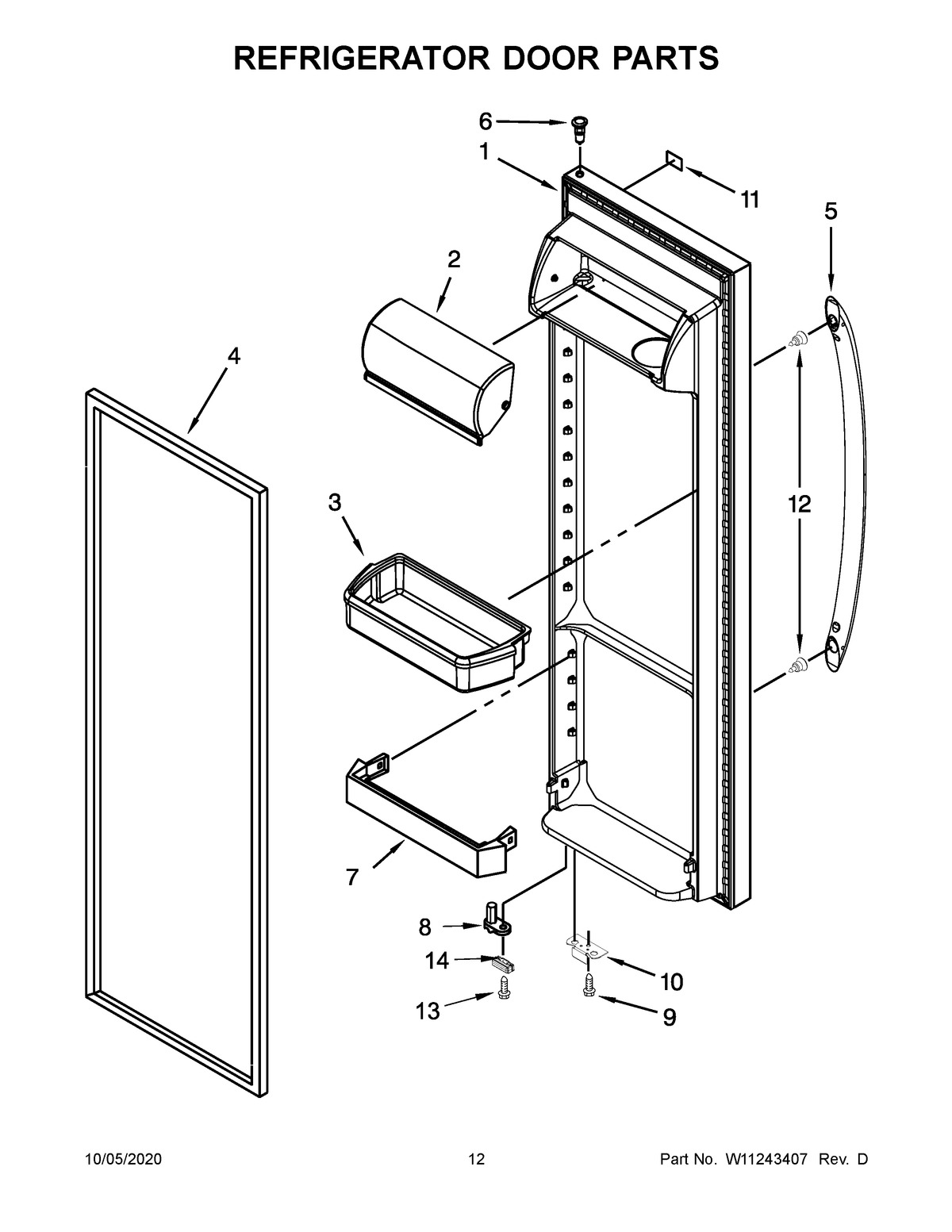

MSS25C4MGK00 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (WHITE)
1CDOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BLACK CAST)
1BDOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (STAINLESS)
1ADOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (BLACK)
2Door, Compartment
3BIN, DOOR
4GASKET, DOOR (BEIGE)
4BGASKET, DOOR (GREY)
4AGASKET, DOOR (BLACK)
5MAY W10891380
5AMAY W10891379
5BASSEMBLY, HANDLE (STAINLESS)
6THIMBLE
7Trivet
8THIMBLE, CAM
9SCREW
10BRACKET, DOOR STOP (BLACK)
11MAY W10612926
12STUD SCREW
13MAY 3400012
14BMAY W10407188
14ABUMPER, DOOR (BLACK)
14BUMPER, DOOR (WHITE)
