MSS25C4MGK00 08 – FREEZER DOOR PARTS

MSS25C4MGK00 08 – FREEZER DOOR PARTS

Written by

in

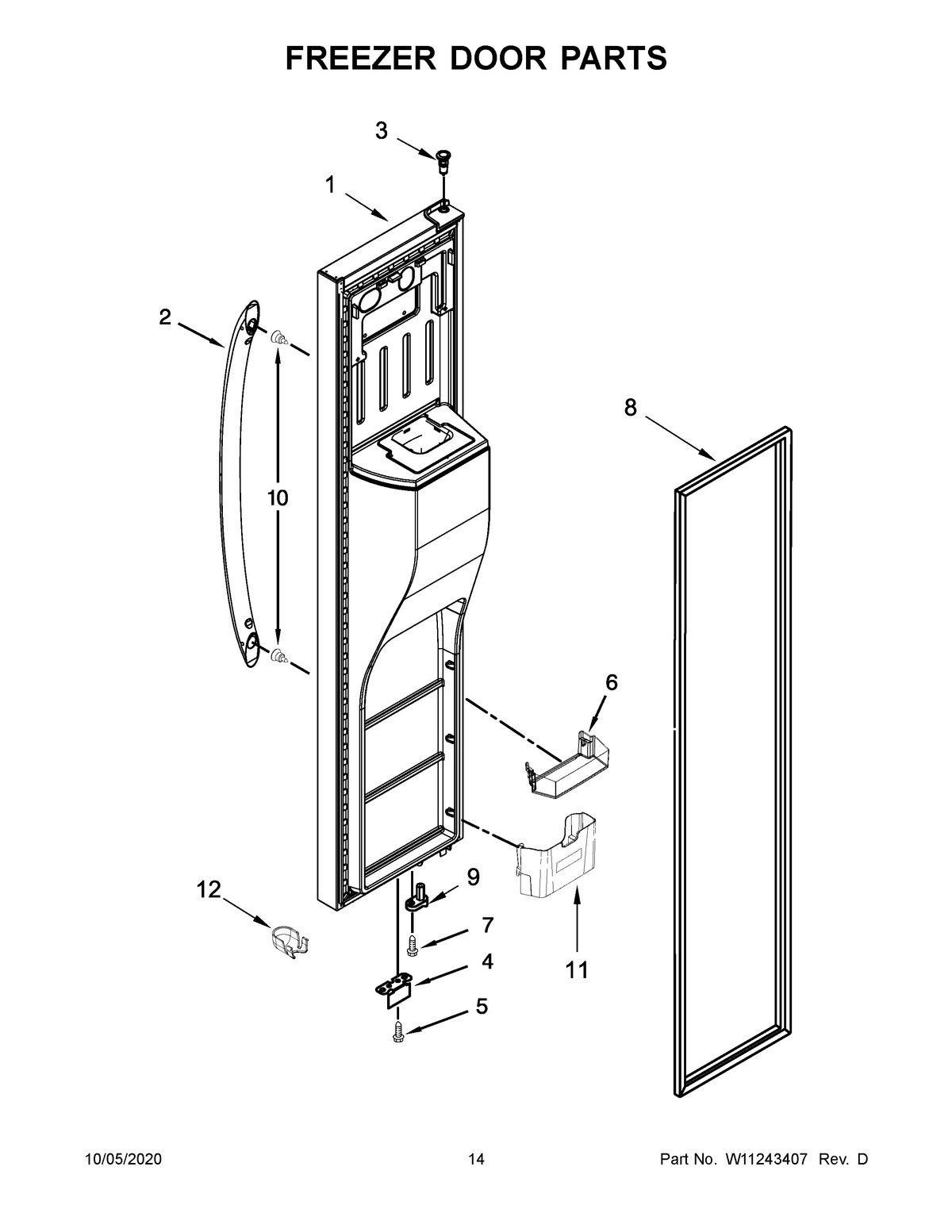

MSS25C4MGK00 08 – FREEZER DOOR PARTS

Products

PositionProduct
1CDOOR, FREEZER (INCLUDES DOOR GASKET) (BLACK CAST)
1BDOOR, FREEZER (INCLUDES DOOR GASKET) (STAINLESS)
1ADOOR, FREEZER (INCLUDES DOOR GASKET) (BLACK)
1DOOR, FREEZER (INCLUDES DOOR GASKET) (WHITE)
2AMAY W10891379
2MAY W10891380
2BASSEMBLY, HANDLE (STAINLESS)
3THIMBLE
4BRACKET, DOOR STOP (BLACK)
5SCREW
6TRIVET
7SCREW
8BGASKET, DOOR (GREY)
8GASKET, DOOR (BEIGE)
8AGASKET, DOOR (BLACK)
9THIMBLE, CAM
10STUD SCREW
11TRIVET
12COVER, WIRE
