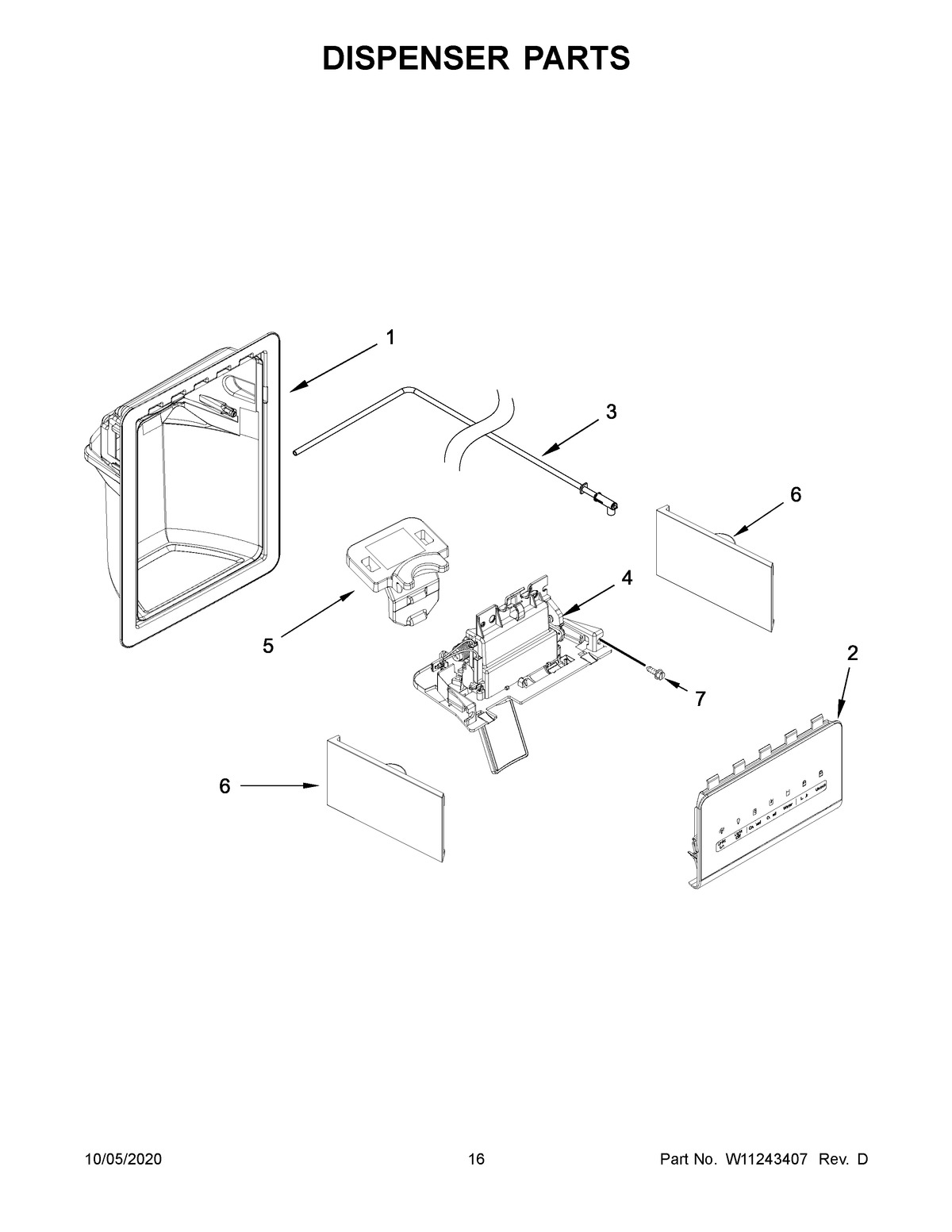

MSS25C4MGK00 09 – DISPENSER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2ASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (WHITE)
2BASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (STAINLESS)
2AASSEMBLY, USER INTERFACE (INCLUDES LIGHT FEATURE) (BLACK)
3ASSEMBLY, WATER FITTING
4AASSEMBLY, SEPARATOR (BLACK)
4BASSEMBLY, SEPARATOR (GREY)
4ASSEMBLY, SEPARATOR (WHITE)
5RETAINER, SEPARATOR HOSE
6DCOVER, DISPENSER FRONT (NEPTUNE FROST (LEFT HAND))
6ECOVER, DISPENSER FRONT (NEPTUNE FROST (RIGHT HAND))
6BFRONT COVER, DISPENSER (BLACK (LEFT HAND))
6CFRONT COVER, DISPENSER (BLACK (RIGHT HAND))
6AFRONT COVER, DISPENSER (WHITE (RIGHT HAND))
6FRONT COVER, DISPENSER (WHITE (LEFT HAND))
7Screw
