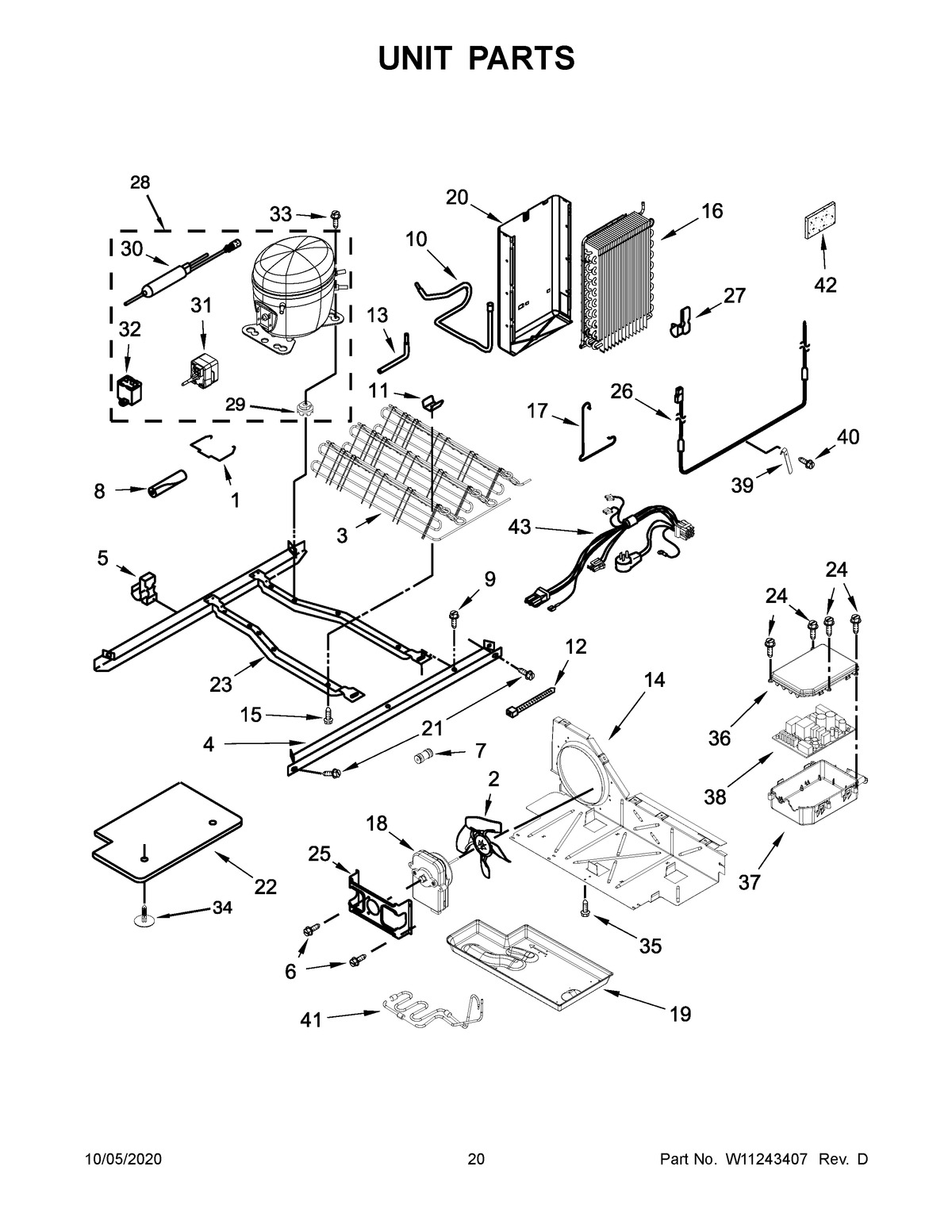

MSS25C4MGK00 11 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	STRAP, BALE
2	MAY 2225834
3	ASSEMBLY, CONDENSER
4	RAIL, UNIT MOUNTING
5	MAY 2326941
6	MAY 8533993
7	CONNECTOR, UNION
8	Sleeve, Pressure Switch Hose
9	MAY 489427
10	TUBE, SUCTION
11	MAY 2311725
12	MAY 2263990
13	MAY 2325479
14	BAFFLE, AIR
15	MAY 8281232
16	Evaporator
18	MOTOR, CONDENSER FAN
19	TRAY, EVAPORATOR
20	Heat Shield
21	MAY 489340
22	ASSEMBLY, UNIT COVER (BOTTOM)
23	FRAME, UNIT MOUNTING (INCLUDES UNIT MOUNTING RAIL)
24	MAY 8533859
25	MAY 2181929
26	MAY 2188175
27	Clip
28	MAY W10391109
29	GROMMET, COMPRESSOR
30	MAY W10771114
31	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
32	MAY W10350564
33	MAY 489473
34	MAY 489396
35	Screw (3)
36	MAY W10334855
37	BOX, CONTROL
38	CONTROL, ELECTRONIC
39	PROBE, HEAT
40	MAY 489478
41	MAY W11189542
42	SEALER, INSULATION
43	ASSEMBLY, UNIT WIRE
