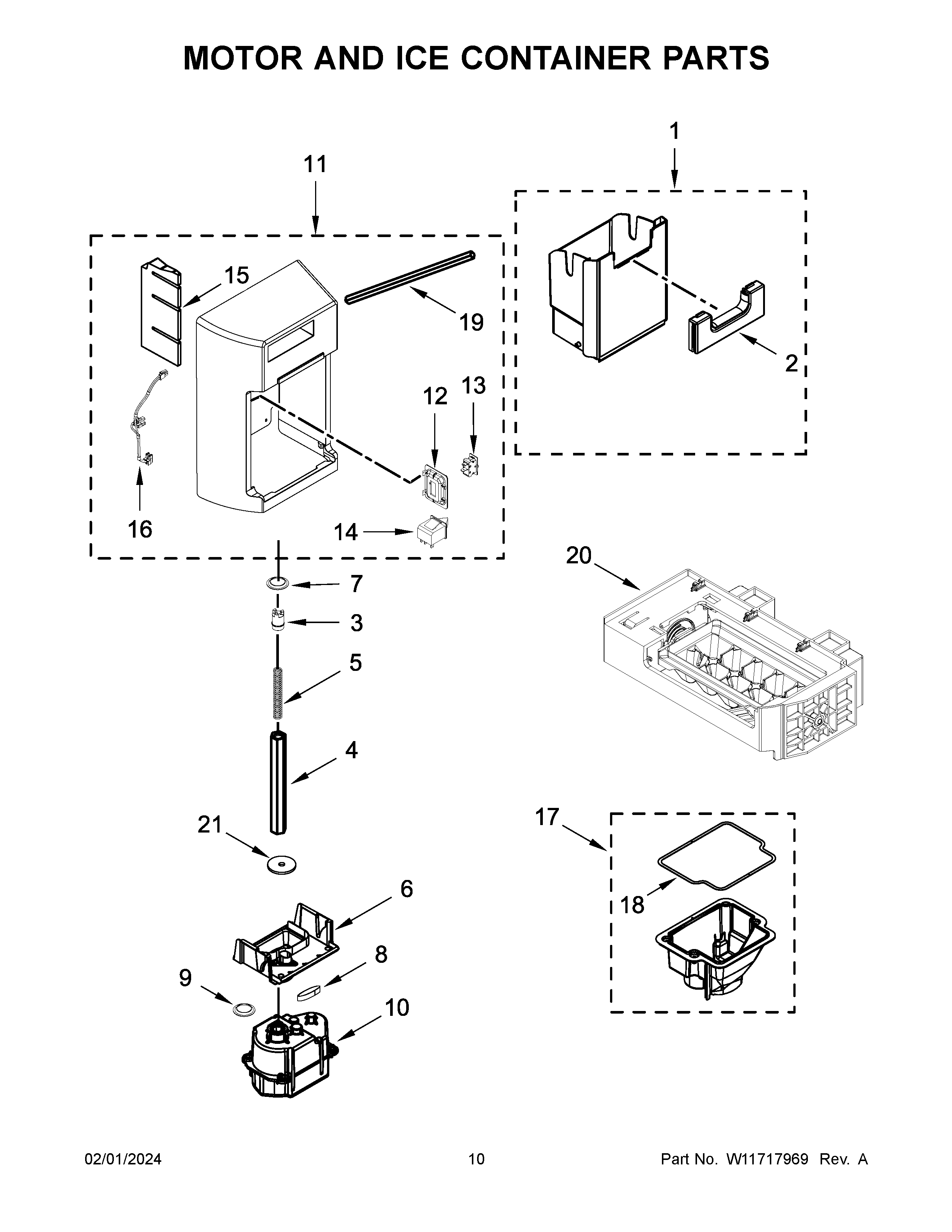

MSS25C4MGZ08 06 – MOTOR AND ICE CONTAINER PARTS

MSS25C4MGZ08 06 – MOTOR AND ICE CONTAINER PARTS

Written by

in

MSS25C4MGZ08 06 – MOTOR AND ICE CONTAINER PARTS

Products

PositionProduct
1W11244434 Whirlpool Refrigerator Ice Container
2W11652042 Whirlpool Bin Latch
3WP2220458 Whirlpool Drive Cam
4WPW10258544 Whirlpool Refrigerator Shaft
5W10852956 Whirlpool Refrigerator Spring
6CHUTE
7WP2198628 Whirlpool Door Seal
8WPW10291905 Whirlpool Seal
9WP2212370 Whirlpool Washer
10W11202789 Whirlpool Auger Motor
11W11566889 Whirlpool Refrigerator Front Cover
12W11341247 Whirlpool Plate
13W11469740 Whirlpool Refrigerator Switch
14W11123943 Whirlpool Refrigerator Switch
15FILLER, EPS ICEMAKER COVER
16W11684619 Whirlpool Refrigerator Jumper Wire
17W11708427 Whirlpool Bracket
18W10166854 Whirlpool Refrigerator Gasket
19WPW10400435 Whirlpool Refrigerator Gasket
20W10873791 Whirlpool Refrigerator Ice Maker Assembly
21WP2305382 Whirlpool Refrigerator Washer
