MSS25C4MGZ08 07 – REFRIGERATOR DOOR PARTS

MSS25C4MGZ08 07 – REFRIGERATOR DOOR PARTS

Written by

in

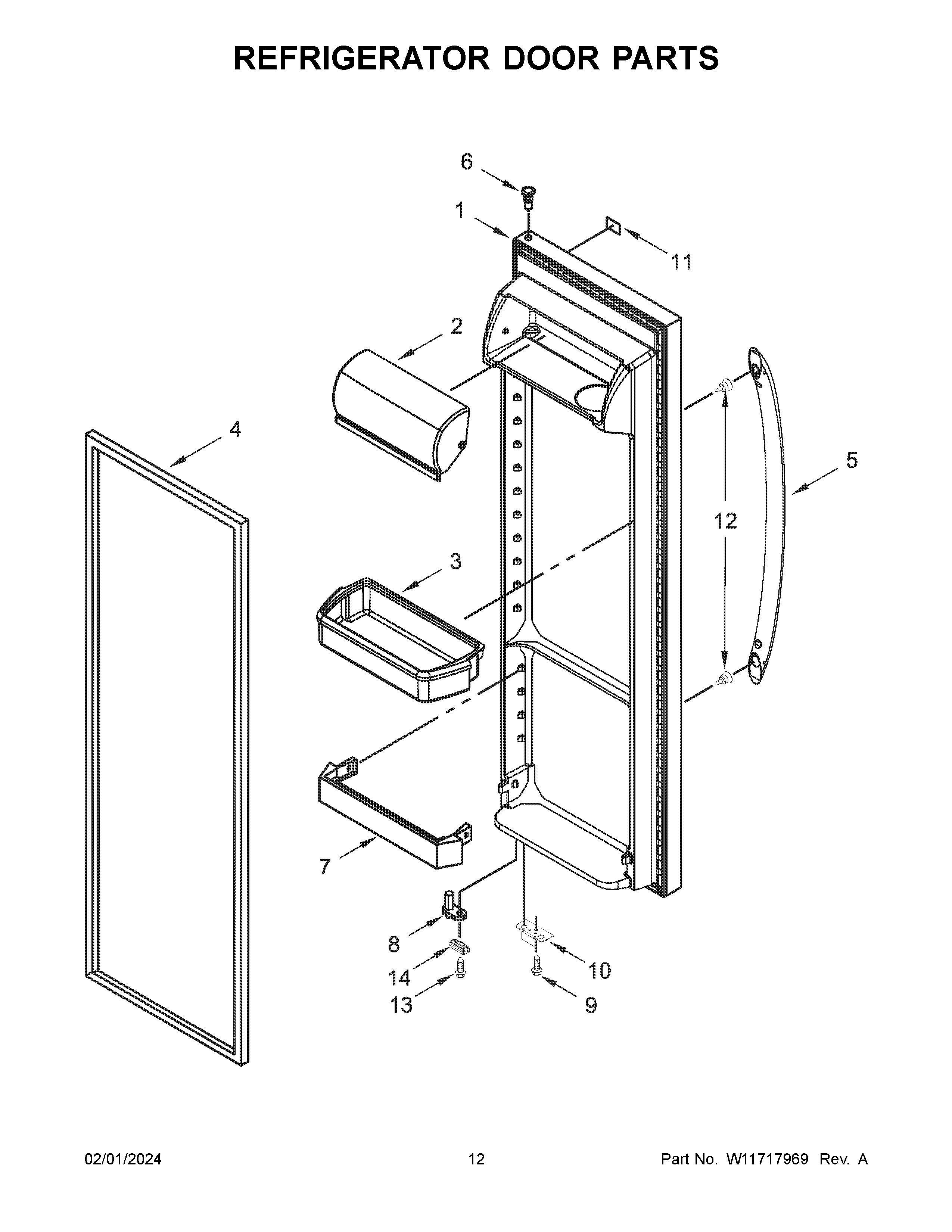

MSS25C4MGZ08 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1LW10912110 Whirlpool Refrigerator Door Service Kit RC 25 (Dropship)
2WP2256101 Whirlpool Dairy Door
3W11174793 Whirlpool Refrigerator Upper Door Shelf Bin
4W10136735 Whirlpool Refrigerator Door Gasket
5HANDLE
6WP2182181 Whirlpool Refrigerator Thimble
7WP2309941 Whirlpool Refrigerator Door Bar Trim
8W11397972 Whirlpool Refrigerator Door Cam
9SCREW
10W11557261 Whirlpool Refrigerator Bracket Assembly
11WPW10612926 Whirlpool Refrigerator Nameplate
12WPW10661886 Whirlpool Refrigerator Door Handle Screw
13WPW10296804 Whirlpool Refrigerator Screw
14W11573367 Whirlpool Refrigerator Door Bumper
