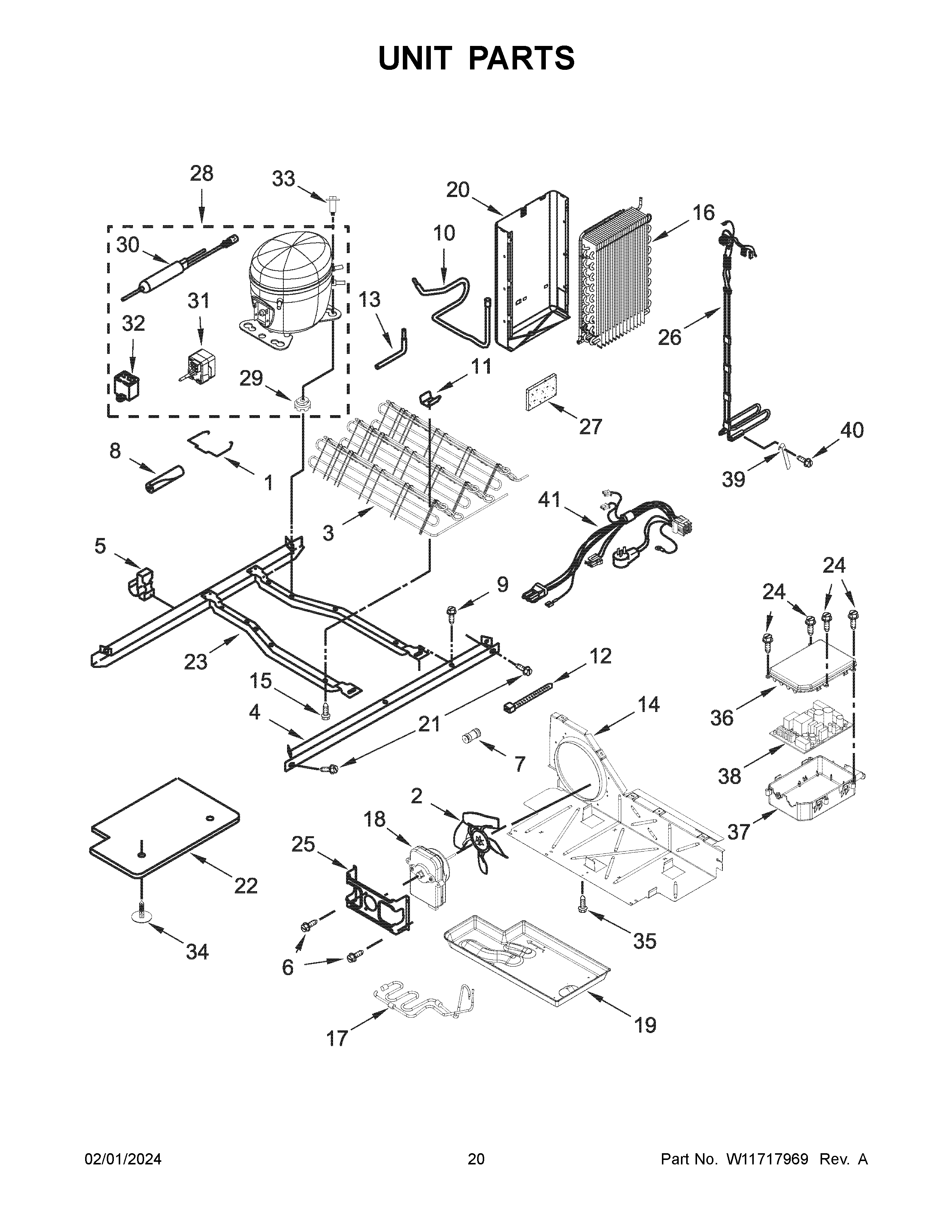

MSS25C4MGZ08 11 – UNIT PARTS

Products

Position	Product
NI	WPL ARIEECA0D5508F01B518BF1EC83A36EF0B0
1	W11661170 Whirlpool Clip
2	W11458267 Whirlpool Refrigerator Fan Blade
3A	W11506623 Whirlpool Refrigerator Coupler
3	W11632924 Whirlpool Condenser
3B	W11504445 Whirlpool Refrigerator Coupler
4	W10900442 Whirlpool Refrigerator Unit Rail
5	W10812039 Whirlpool Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	WP2300868 Whirlpool Refrigerator Fitting
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	W11506460 Whirlpool Tube Assembly
11	W10683556 Whirlpool Refrigerator Clip
12	WPW10339879 Whirlpool Wire Tie
13	W11566476 Whirlpool Tube
14	W10896764 Whirlpool Refrigerator Air Baffle
15	W11544659 Whirlpool Refrigerator Screw
16A	W11504448 Whirlpool Refrigerator Coupler
16	W11546692 Whirlpool Refrigerator Evaporator
16B	W11506620 Whirlpool Refrigerator Coupler
17	W11678305 Whirlpool Tube
18	W11578915 Whirlpool Condenser Motor
19	TRAY, EVAPORATOR
20	W11400740 Whirlpool Shield
21	489340 Whirlpool Refrigerator Screw
22	W10897560 Whirlpool Refrigerator Unit Cover
23	W10900446 Whirlpool Frame Assembly
24	WPW10171469 Whirlpool Refrigerator Screw
25	WP2181929 Whirlpool Refrigerator Bracket
26	W11650661 Whirlpool Heater Assembly
27	W11553819 Whirlpool Refrigerator Insulation
28C	COUPLER
28A	W11504415 Whirlpool Refrigerator Coupler
28B	W11504431 Whirlpool Microwave Coupler
28	COMPRESSOR
29	WPW10169124 Whirlpool Refrigerator Grommet
30A	W11504433 Whirlpool Refrigerator Coupler
30B	W11504447 Whirlpool Refrigerator Coupler
30	W11109499 Whirlpool Refrigerator Tube
31	WPW10197428 Whirlpool Start Device
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	SCREW
34	489396 Whirlpool Refrigerator Clip
35	WP489464 Whirlpool Refrigerator Screw
36	W10313215 Whirlpool Refrigerator Box Cover
37	2323186 Whirlpool Refrigerator Housing
38	W11566891-includeCORE Whirlpool W11566891 Refrigerator Electronic Control Board + Core
39	HEAT PROBE
40	WP489478 Whirlpool Refrigerator Screw
41	W11679642 Whirlpool Wire Harness
