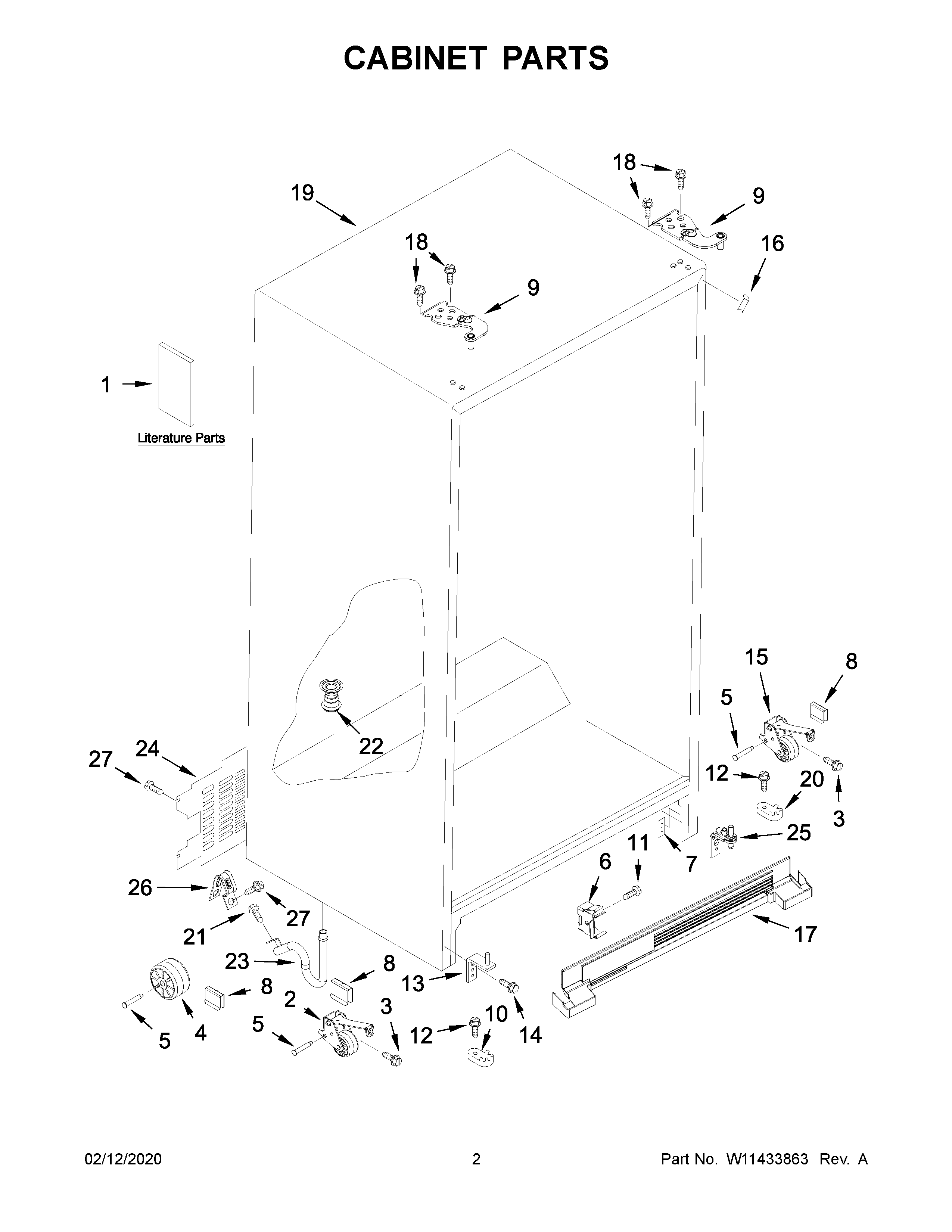

MSS25N4MKZ00 02 – CABINET PARTS

MSS25N4MKZ00 02 – CABINET PARTS

Written by

in

MSS25N4MKZ00 02 – CABINET PARTS

Products

PositionProduct
1BUSE AND CARE GUIDE
1ATECH SHEET
1MAY W11392878
2ROLLER, FRONT (LEFT)
3MAY 2152958
4Roller
5AXLE, ROLLER
6MAY 2155013
7APLATE, SCREW (FREEZER)
7PLATE, SCREW (REFRIGERATOR)
8CLIP, ROLLER
9AHINGE, TOP (GREY (FREEZER))
9HINGE, TOP (GREY (REFRIGERATOR))
10CLOSER, DOOR (FREEZER)
11MAY 488500
12MAY W10142234
13ASSEMBLY, BOTTOM HINGE (FREEZER)
14Screw (4)
15ROLLER, FRONT (RIGHT)
16FILLER, WRAPPER (GREY)
17GRILLE (GREY)
18SCREW (BLACK)
19LINER (NOT A SERVICEABLE PART)
20CLOSER, LOWER CAM DOOR (REFRIGERATOR)
21Screw (3)
22MAY 2304888
23MAY W10153550
24COVER, UNIT
25ASSEMBLY, BOTTOM HINGE (REFRIGERATOR)
26CLAMP, POWER CORD
27MAY W10141645
