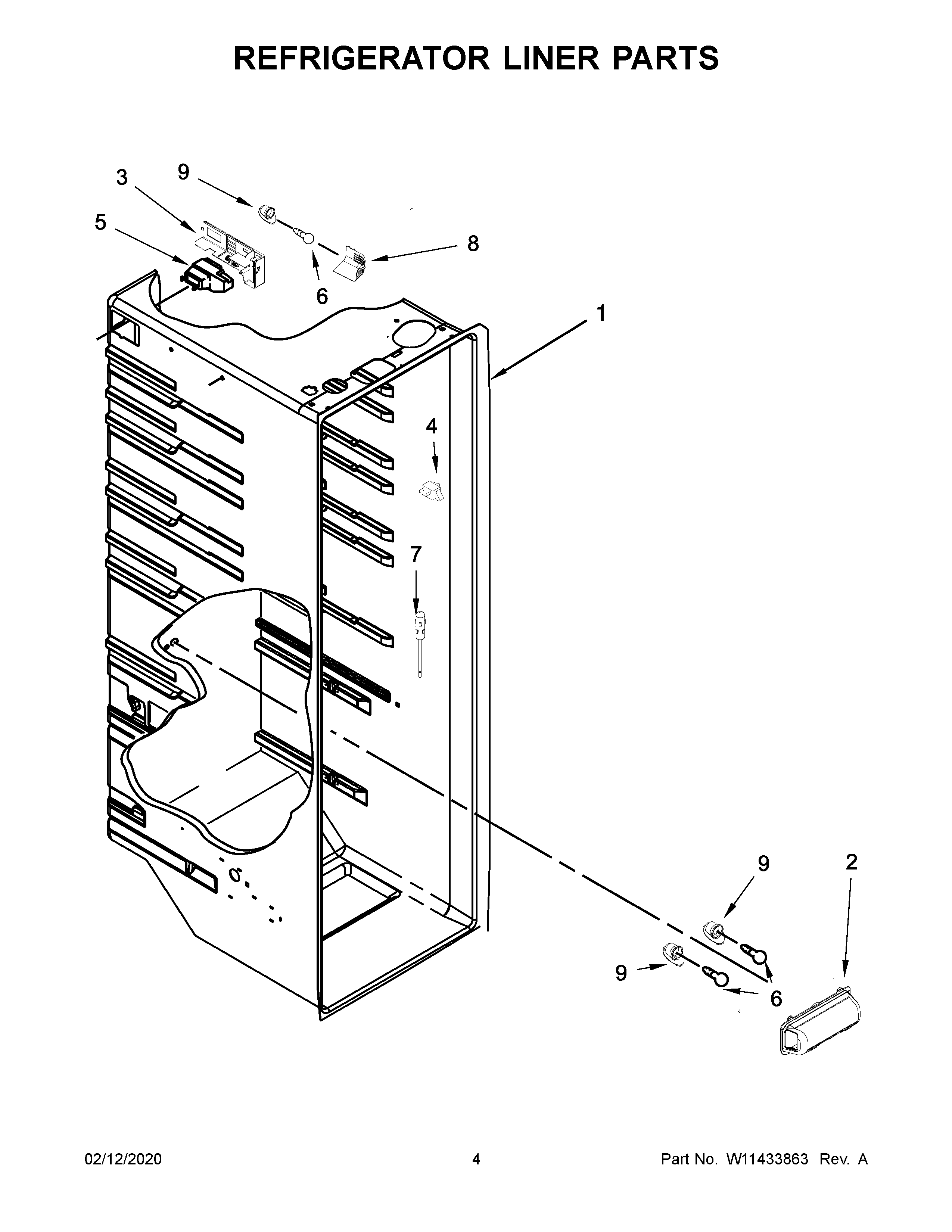

MSS25N4MKZ00 03 – REFRIGERATOR LINER PARTS

Written by

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	LENS, LIGHT (INCLUDES GASKET)
3	ASSEMBLY, CONTROL BOX (INCLUDES ELECTRONIC CONTROL)
4	MAY 1118894
5	DIFFUSER, AIR
6	LAMP, LED
7	THERMISTOR
8	COVER, LIGHT
9	Socket, Light
