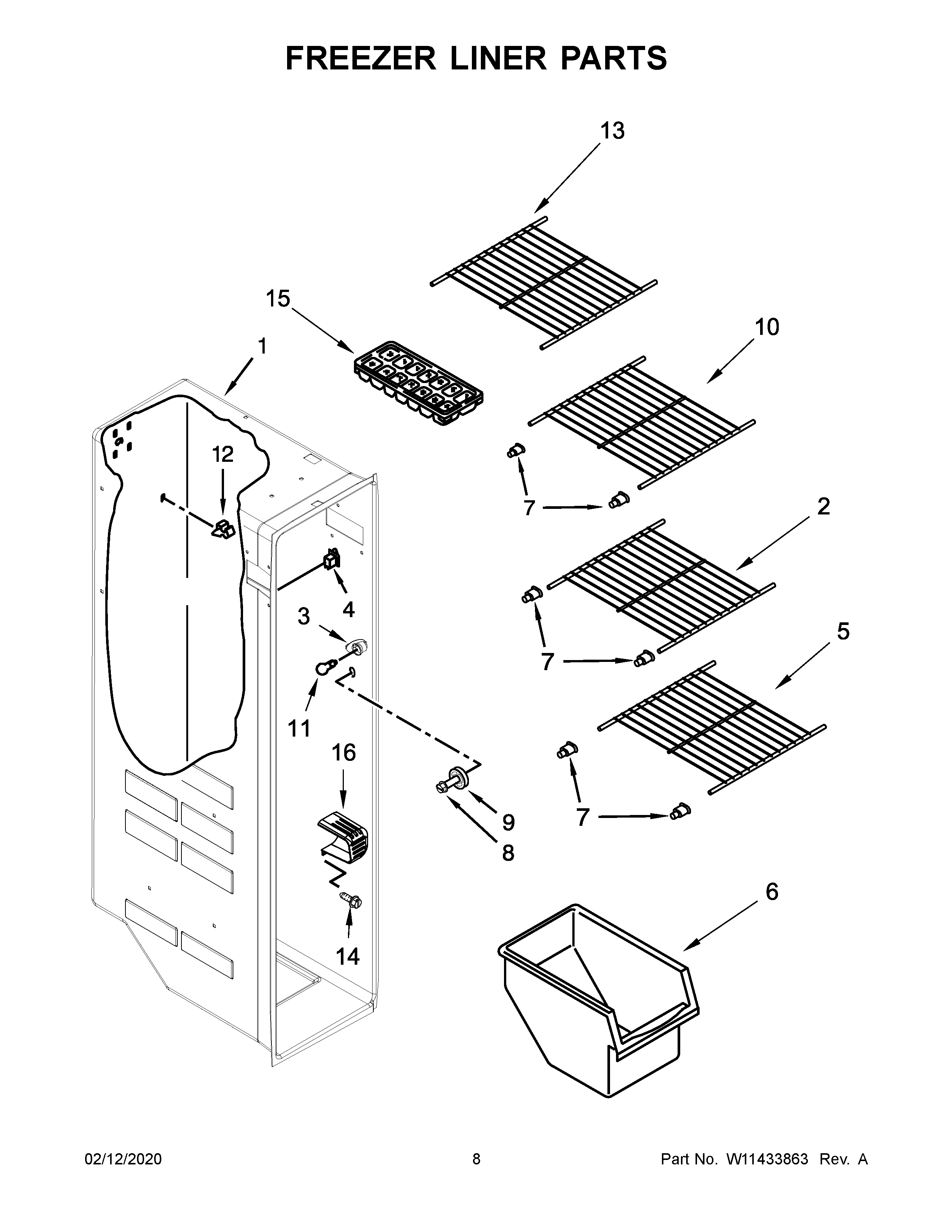

MSS25N4MKZ00 05 – FREEZER LINER PARTS

MSS25N4MKZ00 05 – FREEZER LINER PARTS

Written by

in

MSS25N4MKZ00 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10318948
3SOCKET, LIGHT
4MAY W10460893
5MAY W10318947
6Freezer Bin
7Cup, Shelf Mount
8MAY W10191954
9Stud Assembly
10MAY W10318961
11LAMP, LED
12MAY 2315163
13MAY W10318945
14MAY 3400893
15TRAY, ICE
16MAY 2212340
