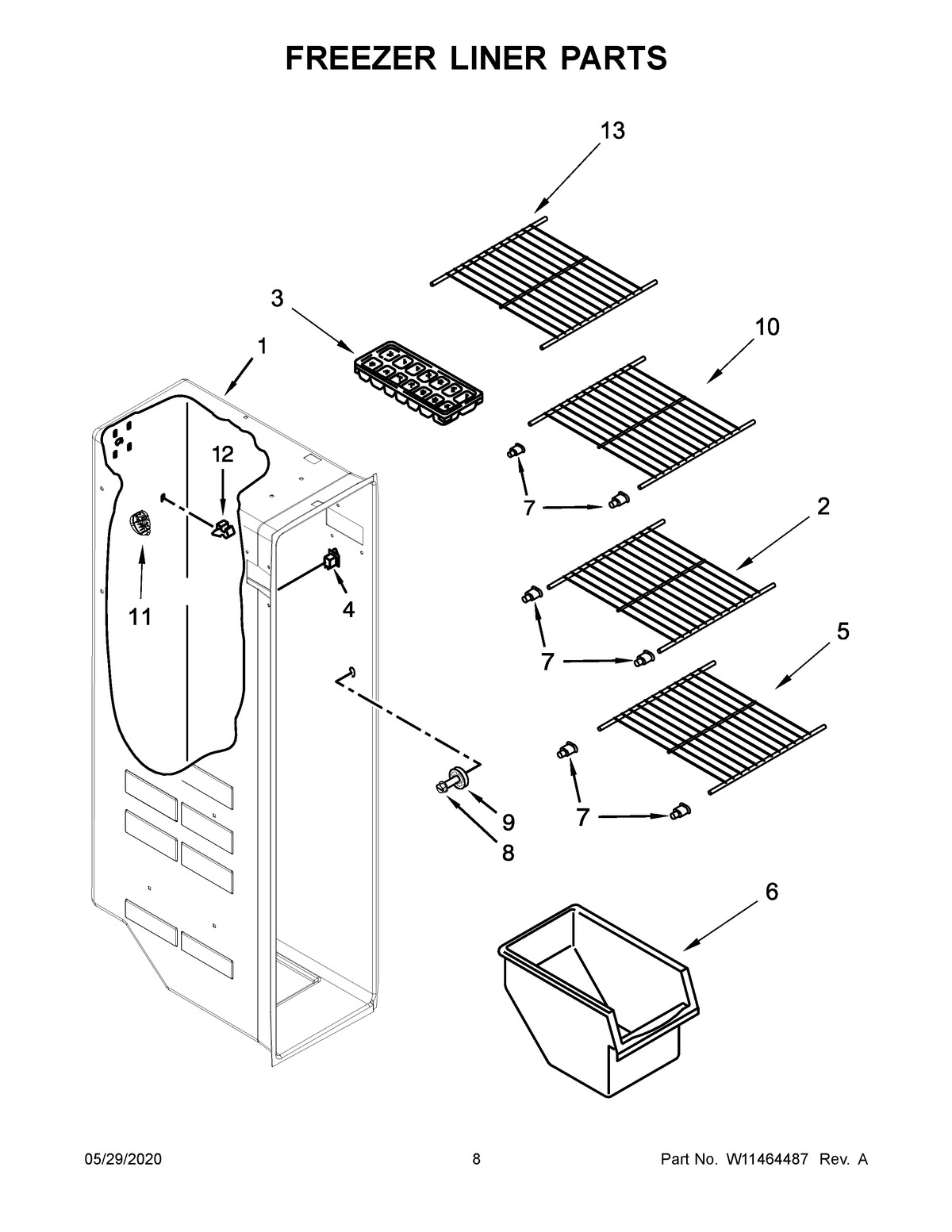

MSS25N4MKZ01 05 – FREEZER LINER PARTS

MSS25N4MKZ01 05 – FREEZER LINER PARTS

Written by

in

MSS25N4MKZ01 05 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10318948
3TRAY, ICE CUBE
4MAY W10460893
5MAY W10318947
6Freezer Bin
7Cup, Shelf Mount
8MAY W10191954
9Stud Assembly
10MAY W10318961
11MAY W11251749
12MAY 2315163
13MAY W10318945
