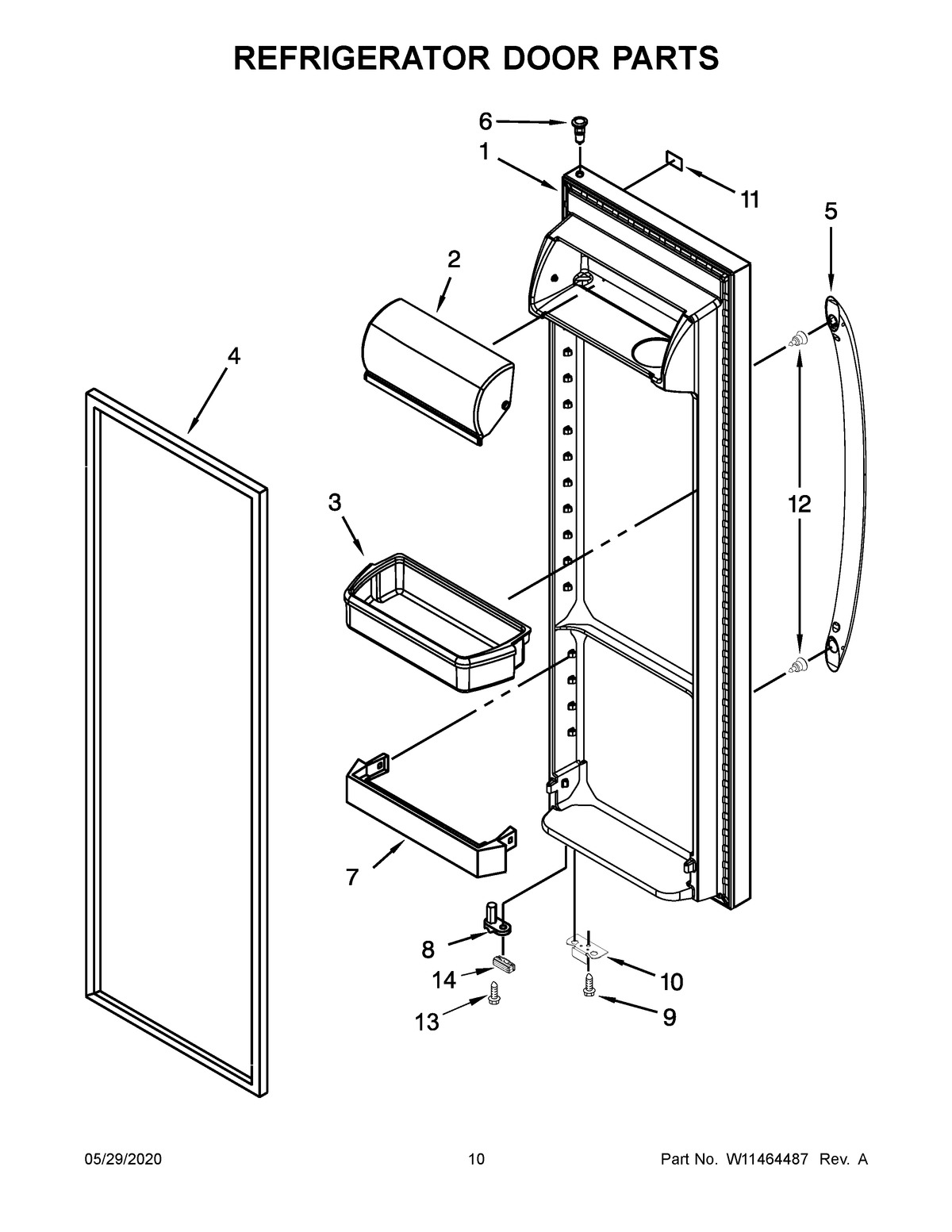

MSS25N4MKZ01 06 – REFRIGERATOR DOOR PARTS

Written by

Products

Position	Product
1	DOOR, REFRIGERATOR (INCLUDES DOOR GASKET) (STAINLESS)
2	Door, Compartment
3	BIN, DOOR
4	GASKET, DOOR (GREY)
5	ASSEMBLY, HANDLE (STAINLESS)
6	THIMBLE
7	Trivet
8	THIMBLE, CAM
9	SCREW
10	BRACKET, DOOR STOP (BLACK)
11	MAY W10612926
12	MAY W10460893
13	SCREW (GREY)
14	MAY W10407188
