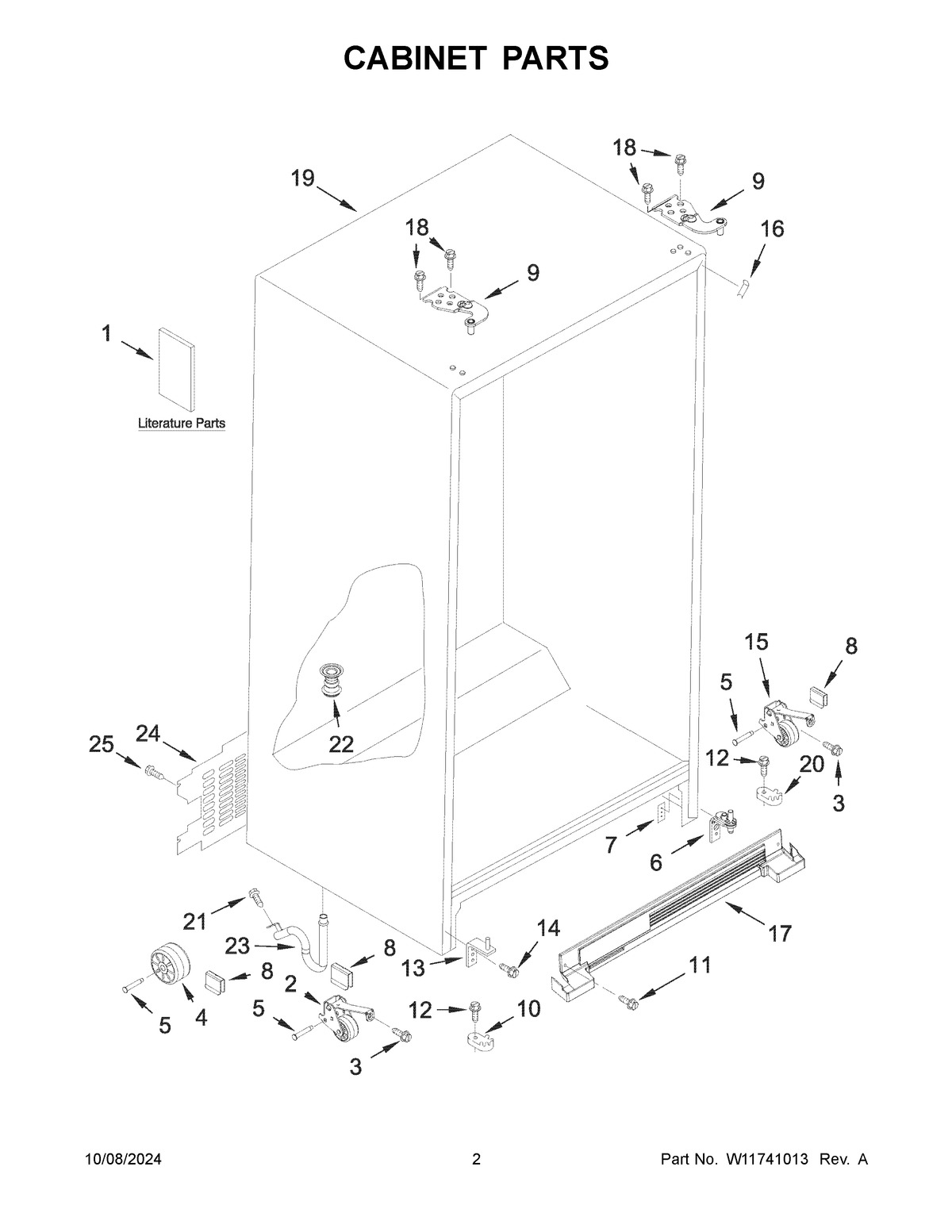

MSS25N4MKZ11 02 – CABINET PARTS

MSS25N4MKZ11 02 – CABINET PARTS

Written by

in

MSS25N4MKZ11 02 – CABINET PARTS

Products

PositionProduct
1ATECH SHEET, ENERGY GUIDE
1USER GUIDE
2WPW10304660 Whirlpool Wheel Assembly
3W10803534 Whirlpool Screw
4WPW10475495 Whirlpool Roller Assembly
5W11594405 Whirlpool Axle
6W11399415 Whirlpool Refrigerator Door Hinge
7W11036715 Whirlpool Refrigerator Plate
7AW10904380 Whirlpool Plate
9AW11505710 Whirlpool Refrigerator Door Hinge
9W11505709 Whirlpool Refrigerator Door Hinge
10W11679635 Whirlpool Door Cam
11WPW10308489 Whirlpool Refrigerator Screw
12WP489483 Whirlpool Screw
13W11687636 Whirlpool Refrigerator Door Hinge
14WP489497 Whirlpool Screw
15WPW10304659 Whirlpool Wheel Assembly
16W11219642 Whirlpool Refrigerator Filler
17W11282561 Whirlpool Refrigerator Grille
18SCREW, HINGE (WHITE)
19CABINET (NOT A SERVICABLE PART)
20CAM-DOOR
21WP489464 Whirlpool Refrigerator Screw
22W11566763 Whirlpool Fitting
23W11512417 Whirlpool Drain Connector
24W11613261 Whirlpool Unit Cover
25SCREW
