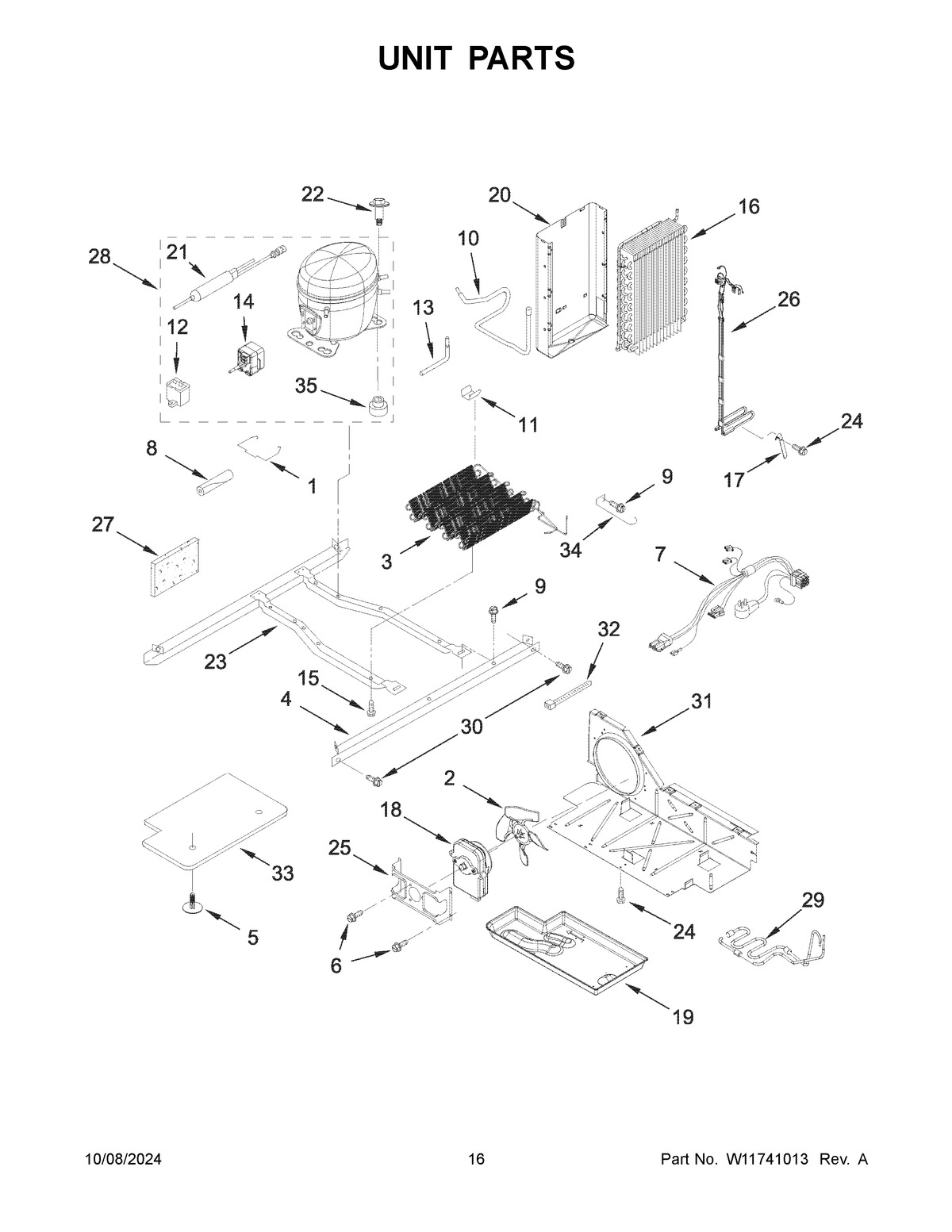

MSS25N4MKZ11 09 – UNIT PARTS

MSS25N4MKZ11 09 – UNIT PARTS

Written by

in

MSS25N4MKZ11 09 – UNIT PARTS

Products

Position	Product
NI	WPL ARIEECA0D5508F01B518BF1EC83A36EF0B0
1	W11577799 Whirlpool Refrigerator Clip
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W11632924 Whirlpool Condenser
3B	W11504445 Whirlpool Refrigerator Coupler
3A	W11506623 Whirlpool Refrigerator Coupler
4	W10900442 Whirlpool Refrigerator Unit Rail
5	489396 Whirlpool Refrigerator Clip
6	WP8533993 Whirlpool Refrigerator Screw
7	W11673314 Whirlpool Wire Harness
8	SLEEVE
9	WP489427 Whirlpool Refrigerator Screw
10	W11386791 Whirlpool Refrigerator Tube
11	W10683556 Whirlpool Refrigerator Clip
12	WPW10662129 Whirlpool Refrigerator Run Capacitor
13	W10858105 Whirlpool Refrigerator Tube
14	W11547180 Whirlpool Refrigerator Start Device
15	W11544659 Whirlpool Refrigerator Screw
16A	W11504449 Whirlpool Refrigerator Coupler
16	W11546692 Whirlpool Refrigerator Evaporator
17	HEAT PROBE
18	W11578915 Whirlpool Condenser Motor
19	TRAY, EVAPORATOR
20	W11400740 Whirlpool Shield
21	W11109499 Whirlpool Refrigerator Tube
21A	W11504433 Whirlpool Refrigerator Coupler
21B	W11504447 Whirlpool Refrigerator Coupler
22	SCREW
23	W10900446 Whirlpool Frame Assembly
24	WP489478 Whirlpool Refrigerator Screw
25	WP2181929 Whirlpool Refrigerator Bracket
26	W11650661 Whirlpool Heater Assembly
27	W11553819 Whirlpool Refrigerator Insulation
28C	COUPLER
28B	W11504431 Whirlpool Microwave Coupler
28	COMPRESSOR
28A	W11504415 Whirlpool Refrigerator Coupler
29	W11678305 Whirlpool Tube
30	489340 Whirlpool Refrigerator Screw
31	W10896764 Whirlpool Refrigerator Air Baffle
32	WPW10339879 Whirlpool Wire Tie
33	W10897560 Whirlpool Refrigerator Unit Cover
34	Guard, Fan
35	W11678963 Whirlpool Grommet
