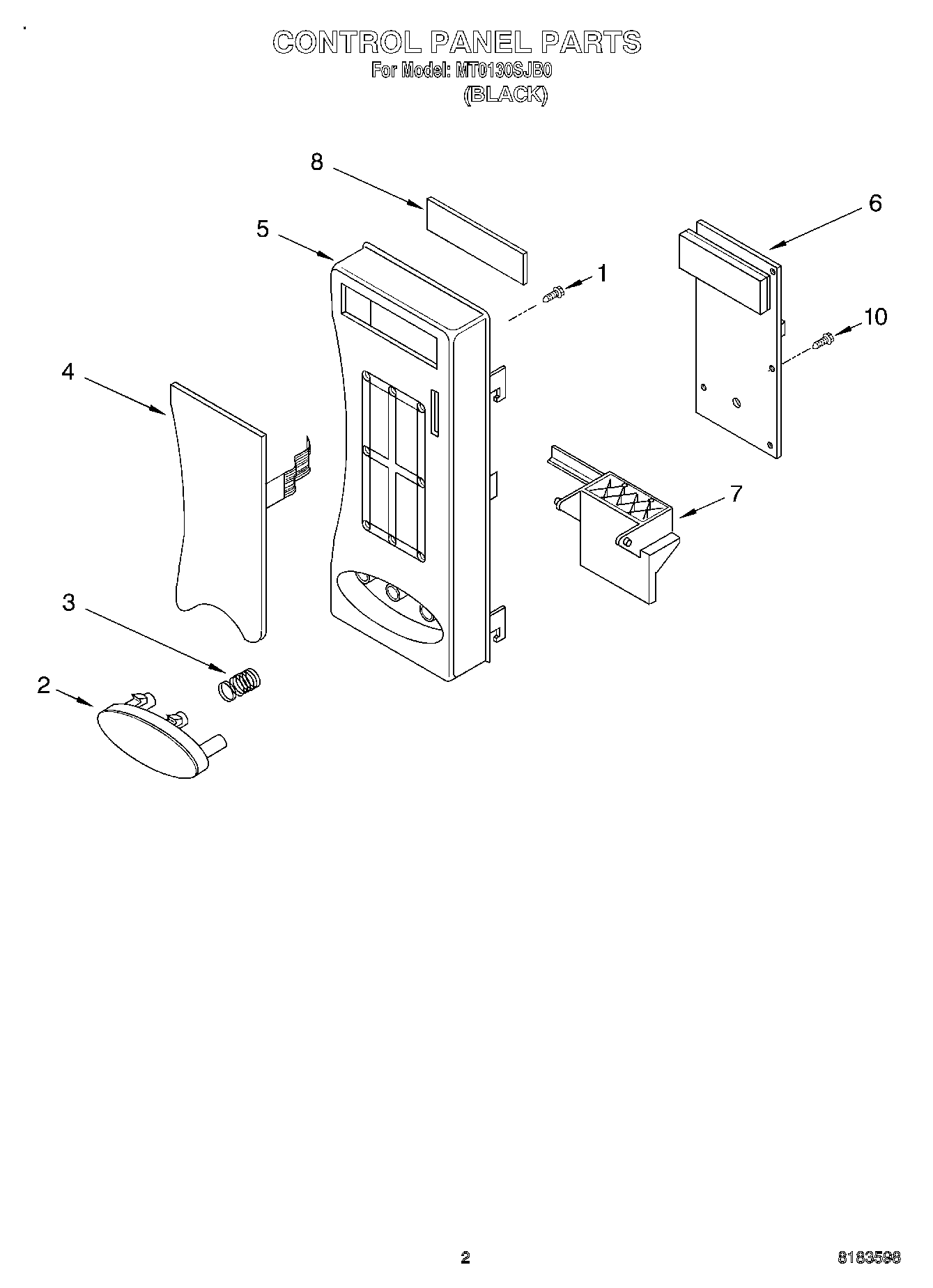

MT0130SJB0 02 – CONTROL PANEL
Products
| Position | Product |
|---|---|
| 1 | Screw |
| 2 | Release Button |
| 3 | WP4158178 Whirlpool Microwave Spring |
| 4 | Key Membrane |
| 5 | Control Panel |
| 6 | P.C.B Sub Assembly |
| 7 | Lever, Release |
| 8 | Window |
| 10 | Screw |
MT0130SJB0 02 – CONTROL PANEL
| Position | Product |
|---|---|
| 1 | Screw |
| 2 | Release Button |
| 3 | WP4158178 Whirlpool Microwave Spring |
| 4 | Key Membrane |
| 5 | Control Panel |
| 6 | P.C.B Sub Assembly |
| 7 | Lever, Release |
| 8 | Window |
| 10 | Screw |
