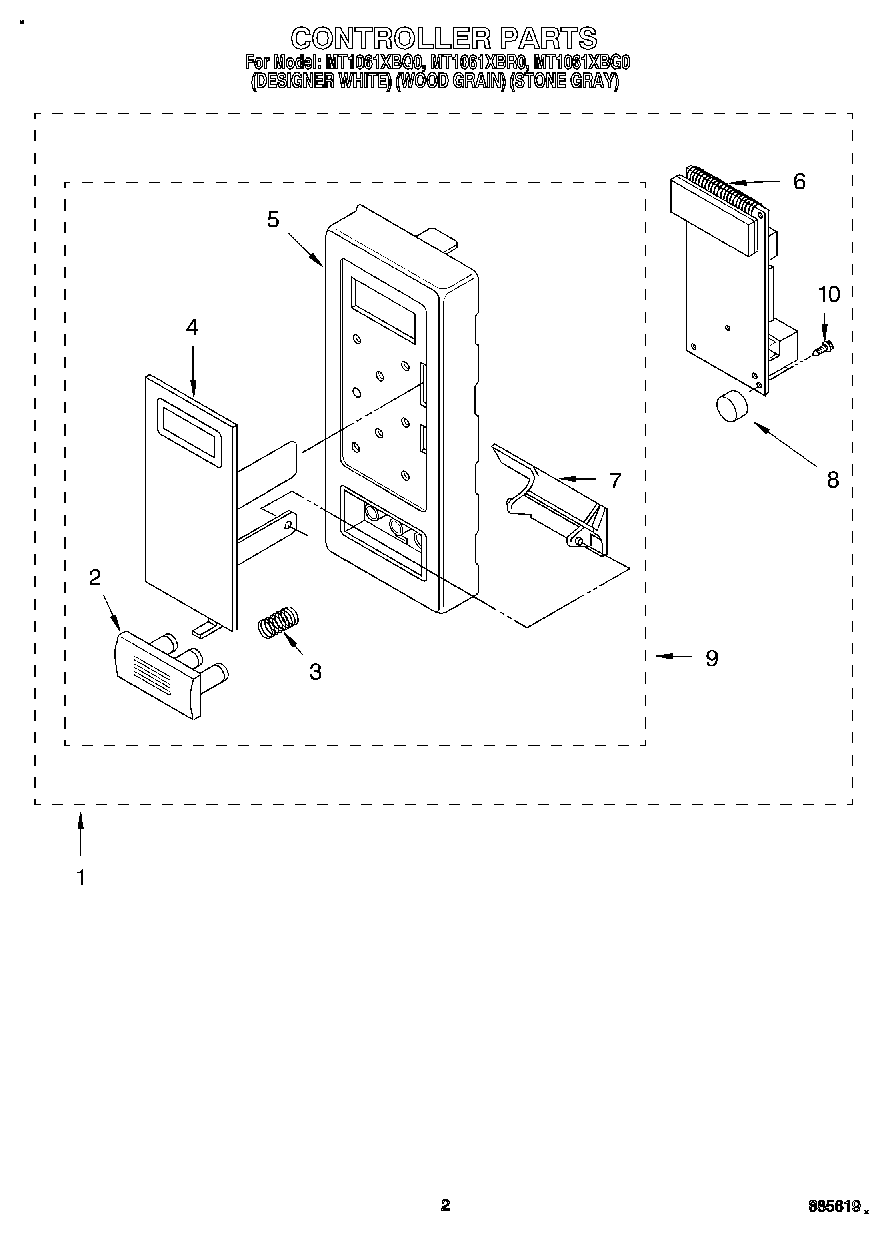

MT1061XBQ0 02 – CONTROLLER

Products

Position	Product
1	Controller Assembly (Not Serviceable) White Model & Wood Grain Model
2	Button, Release (White Model)
2	Release Button (Wood Grain & Gray Model)
3	WP4158178 Whirlpool Microwave Spring
4	Key Membrane (White Model)
4	Key Membrane (Wood Grain & Gray Model)
5	Control Panel (Wood Grain & Gray Model)
5	Control Panel (White Model)
6	P.C.B Sub Assembly
7	Lever, Release
8	Cap, Boss
9	Controller Sub Assembly (White Model)
9	Controller Sub Assembly (Wood Grain & Gray Model)
10	Screw
