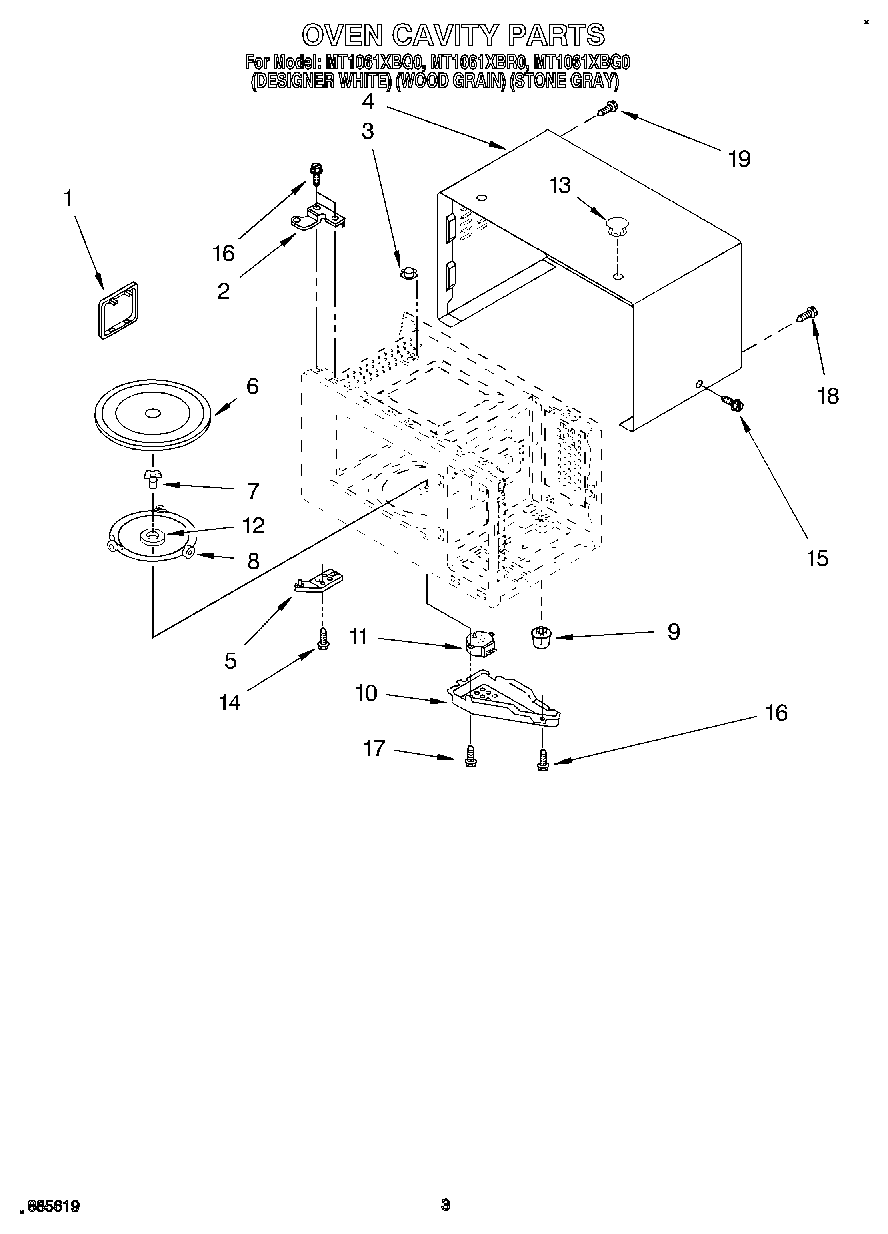

MT1061XBR0 03 – OVEN CAVITY

Products

Position	Product
1	Canopy
2	Plate, Hinge
3	Thermostat
4	Outer Case (Wood Grain Model)
4	Outer Case (Gray Model)
4	Outer Case (White Model)
5	Plate, Hinge
6	Tray, Glass
7	Shaft, Turn Table
8	Rotating Ring Ass`y
9	Leg (4)
10	Cover, Motor
11	Motor, Synchronous
12	Washer, Shaft
13	Mounting Cap (2) (Wood Grain Model)
13	Mounting Cap (White (4))
13	Mounting Cap (Black (4))
14	Special Screw (2)
15	Screw
16	4344826 Whirlpool Refrigerator Screw
17	Screw
18	W11380570 Whirlpool Microwave Screw
19	Screw
