MT1066XBB0 02 – CONTROLLER

MT1066XBB0 02 – CONTROLLER

Written by

in

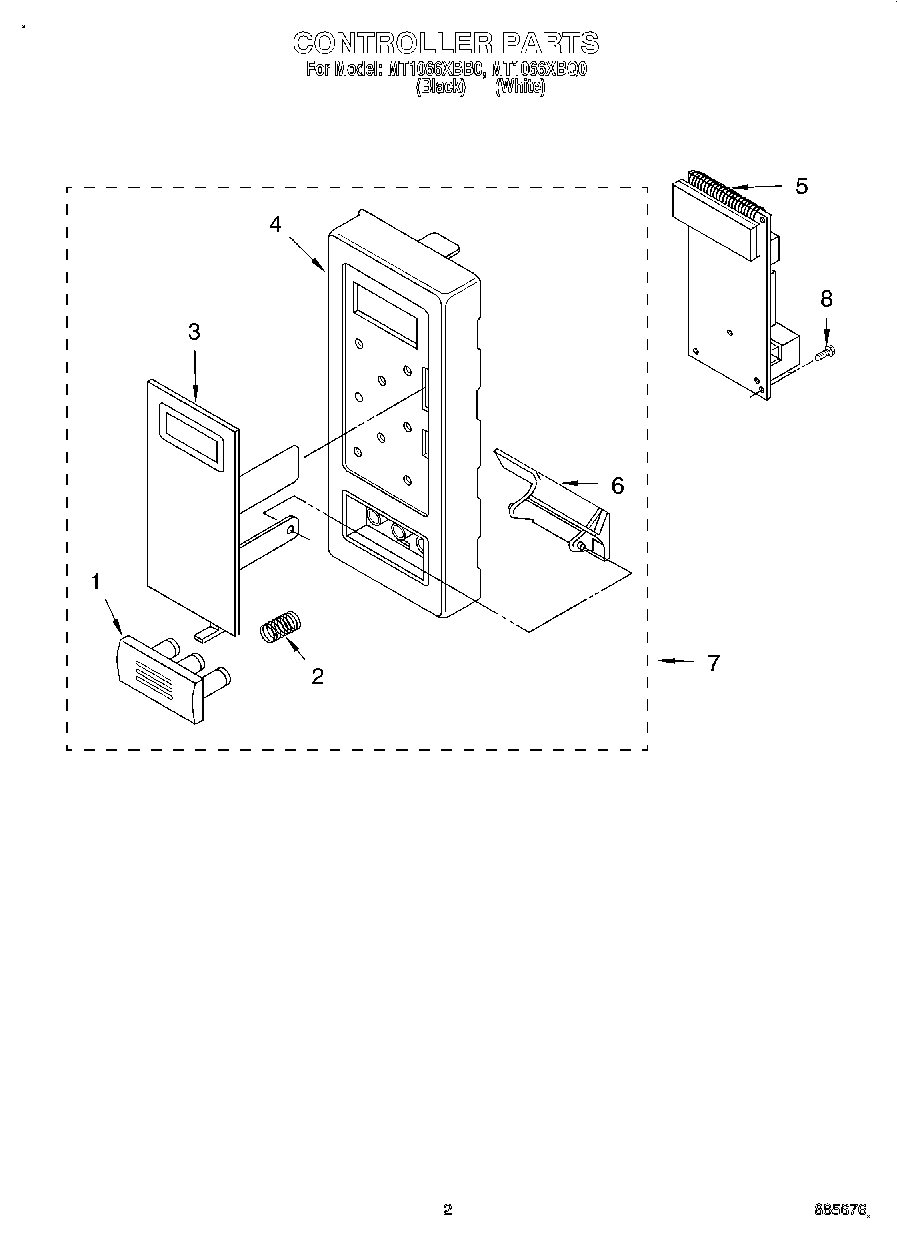

MT1066XBB0 02 – CONTROLLER

Products

PositionProduct
1Release Button (Wood Grain & Gray Model)
1Button, Release (White Model)
2WP4158178 Whirlpool Microwave Spring
3Key Membrane (White Model)
3Key Membrane (Black Model)
4Control Panel (Wood Grain & Gray Model)
4Control Panel (White Model)
5P.C.B Sub Assy.
6Lever, Release
7Controller Sub Assembly (White Model)
7Controller Sub Assembly (Black Model)
8Screw
